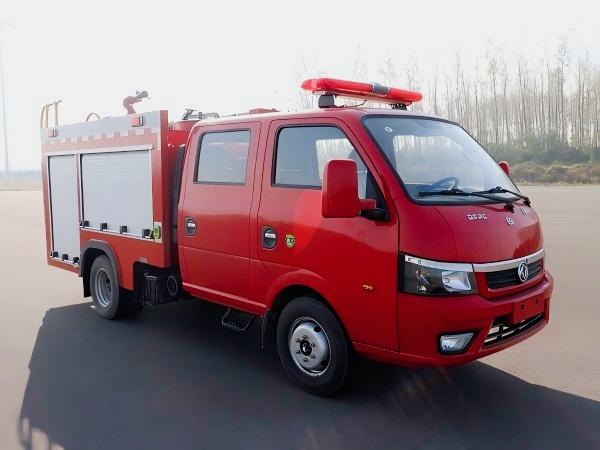

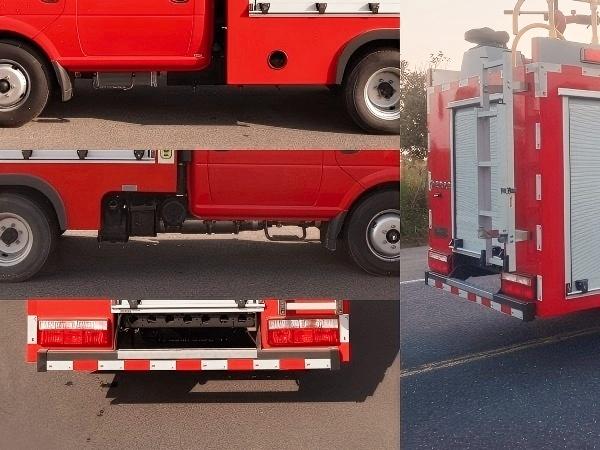

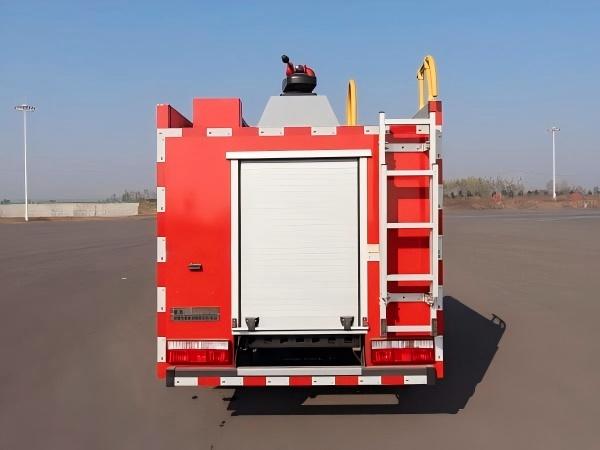

0.8cbm Water Tank Fire Fighting Truck

Name: 0.8cbm Water Tank Fire Fighting Truck
Brand: JSIE
Rating: 5.0 (57 reviews)

Availability:

Quantity:



Inquire Add to Basket PDF Export

Min Order

1+

Package

Nude

Payment

T/T

Port

Shanghai

Qingdao

Xiamen

Overall Dimension(mm)	577018202570
Max Speed(km/h)	105
GVW(kg)	4350
Rated Load Capacity (kg)	860
Curb Weight(kg)	3115
Cab	2+3
Approach/Departure Angel(°)	21/17
ABS System	with
F/R Overhang(mm)	1181/1589
Chassis Parameters
Model	EQ1040D16DC
Manufacture	Dongfeng Motor Co., Ltd.
Others
Water tank capacity: 0.860 cubic meters Water tank dimensions: 1120×1000×800mm Integral side protection structure Rear protection device material: Q235A Cross-sectional dimensions: 100×50mm Connection method: Bolted connection Rear protection ground clearance: 445mm ABS manufacturer: Zhejiang Asia Pacific Electromechanical Co., Ltd. (Model: APG3550500A) Main specialized devices: Fire pump, Fire monitor
