Product Overview

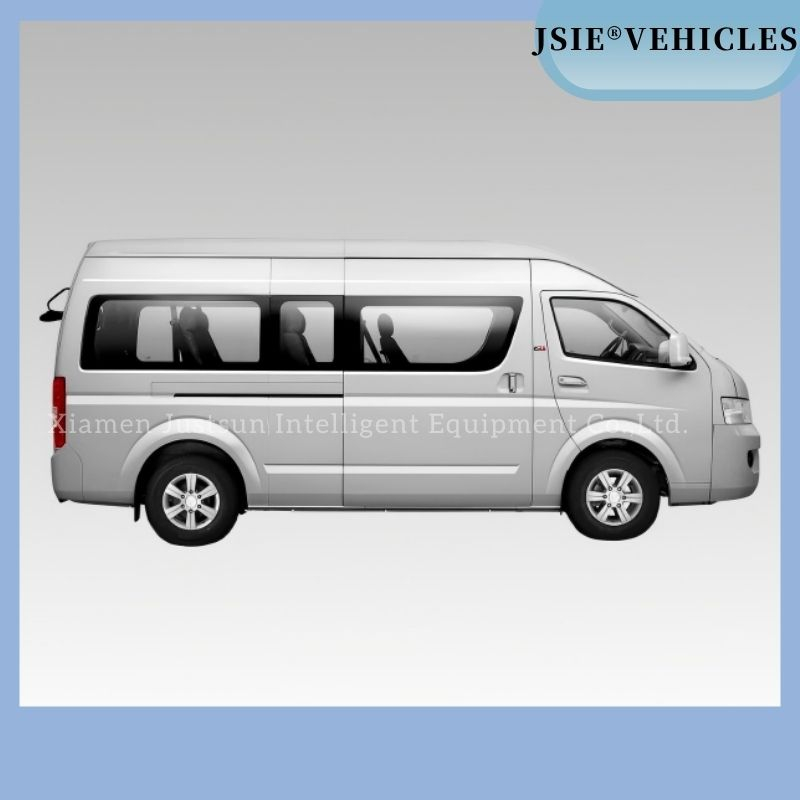

The Foton View CS2 (Fengjing VK1) is a factory-built 15 seater minibus designed for professional group transport operators who demand automatic driving convenience, advanced safety, and passenger comfort. As a dedicated right hand drive minibus, it is ready for RHD markets including the UK, Australia, Japan, and Southeast Asia. With a high roof (2285 mm overall height), this high roof minibus for sale offers exceptional headroom – passengers can stand upright in the aisle.
What sets this model apart is the 6-speed automatic transmission (6AT) combined with AEBS (Advanced Emergency Braking System). The diesel minibus 6at powertrain pairs the proven 4F20TC10 engine (1968 cc, 101 kW, 330 Nm torque) with a smooth-shifting Zhongma ZMA613K automatic gearbox. For fleet operators searching for a foton view cs2 for sale that reduces driver fatigue and improves safety, this minibus with aebs is the ultimate choice. Additional standard features include tire pressure monitoring, rear defroster + wiper + ground view mirror, and 15 seats in full trim.
Key specifications at a glance:
Dimensions (L×W×H): 5390×1920×2285 mm | Wheelbase: 3110 mm
Curb weight: 2240 kg | GVW: 3400 kg
Engine: 4F20TC10, 1968 cc, 101 kW @ 330 Nm
Transmission: 6AT automatic (Zhongma ZMA613K), drive axle ratio 4.556
Brake control: AEBS (Advanced Emergency Braking System) + front disc / rear drum
Tires: 195R15C aluminum wheels + steel spare + tire pressure monitoring system (TPMS)
Fuel tank: 65 L | Rear suspension: leaf spring 3+1
Roof: High roof | Drive: RHD | Seats: 15
Key Features
Factory 6-Speed Automatic Transmission (6AT) – Unlike manual minibuses, this diesel minibus 6at reduces driver workload in stop-start city traffic and hilly tourist routes. The Zhongma ZMA613K automatic gearbox delivers smooth shifts and maintains fuel economy close to a manual.
AEBS – Advanced Emergency Braking System – This minibus with aebs automatically applies emergency braking when an imminent collision is detected (active between 10–80 km/h). AEBS significantly reduces rear-end crashes – a critical safety feature for a 15 passenger van with safety pack.
High Roof for Passenger Comfort – With 2285 mm overall height, this high roof minibus for sale allows passengers to stand, stretch, and move easily. No more head bumping – ideal for school groups, elderly passengers, and airport transfers.
Right Hand Drive (RHD) Configuration – Every control, pedal, and mirror is factory-set for RHD markets. This right hand drive minibus is fully compliant for UK, Ireland, Australia, New Zealand, and other RHD countries without modification.
Tire Pressure Monitoring System (TPMS) – Standard TPMS displays real-time tire pressures on the dashboard. Low pressure alerts prevent blowouts and reduce fuel consumption – a rare feature in the automatic minibus 15 seats segment.
Powerful & Efficient Diesel Engine – The 4F20TC10 common-rail diesel produces 330 Nm of torque from low RPM, providing effortless acceleration even with a full load of 15 passengers. Euro IV compliant.
All-Weather Visibility Package – Rear defroster, rear wiper, and ground view mirror come standard. The ground view mirror shows obstacles directly behind the rear bumper – essential for reversing in crowded car parks.
Comfort-Tuned Suspension – Front: double wishbone independent with torsion bar; Rear: leaf spring (3+1). Balances ride comfort for passengers with load-carrying capacity for luggage.
15-Seat Capacity with Full Trim – Professionally upholstered seats for 15 persons (14 passengers + driver). The 15 seater minibus layout offers generous legroom thanks to the 3110 mm wheelbase.
Durable Build with 3400 kg GVW – 2240 kg curb weight leaves 1160 kg payload capacity for passengers + luggage. Perfect for minibus for group transport operations such as hotel shuttles, school runs, and tour charters.
Application
This automatic minibus 15 seats is the ideal solution for:
Airport & Hotel Shuttles – The 6AT makes stop-and-go shuttle driving effortless. High roof allows standing luggage loading. AEBS protects pedestrians in busy terminals.
School & College Transport – As a 15 passenger van with safety pack (AEBS + TPMS + rear wiper), it meets high safety standards for carrying children.
Day Tour Operators – The right hand drive minibus handles narrow country lanes and coastal roads. Automatic transmission lets the driver focus on scenery and navigation.
Corporate Fleet & Staff Shuttles – Reduce driver fatigue with the 6AT. The diesel minibus high roof provides a professional image with full trim and aluminum wheels.
NGO & Community Services – Reliable minibus for group transport for elderly care centers, disability transport (step-in height is reasonable), and community events.
Religious & Wedding Groups – 15 seats + ample rear luggage area for gifts, sound equipment, or picnic supplies.
For operators searching for a foton view cs2 for sale that combines modern safety (AEBS) with driver convenience (6AT), this high roof model is the most advanced in its class.
Why Choose This Foton View CS2 6AT AEBS Minibus?
Common Challenge in Group Transport |
How This Model Solves It |
Driver fatigue from constant clutch/shifting |
Diesel minibus 6at – automatic transmission eliminates clutch work. |
Safety concerns with sudden braking |
Minibus with aebs – automatically brakes to avoid or mitigate collisions. |
Low roofs cause passenger discomfort |
High roof minibus for sale – 2285 mm overall height, standing room inside. |
Tire blowouts due to underinflation |
TPMS warns driver before pressure drops dangerously. |
Poor rear visibility in rain/fog |
Defroster + rear wiper + ground view mirror – clear view at all times. |
Finding a genuine RHD model |
Factory right hand drive minibus – not a converted LHD. |
Additional advantages of this 15 seater minibus:
6AT fuel efficiency – The ZMA613K automatic is calibrated for diesel torque, achieving real-world 12–14 L/100 km (20–23 mpg UK).
AEBS proven effectiveness – Studies show AEBS reduces rear-end crashes by up to 40%. Your passengers and insurance company will thank you.
Full warranty – 2 years / 50,000 km on powertrain, 1 year on electronics including TPMS and AEBS sensors.
Parts support – Foton/Fengjing has global dealer networks; the 4F20 engine is widely used in commercial vans.
When you compare automatic minibus 15 seats options, no other vehicle in this price range offers AEBS + TPMS + high roof + 6AT as standard. This is the ultimate diesel minibus high roof for modern group transport fleets.
FAQ
Q1: Is this vehicle a genuine factory right hand drive minibus or a conversion?
A1: It is a factory-original right hand drive minibus. The entire dashboard, pedal assembly, steering column, wiper linkages, and mirror geometry are designed for RHD from the start. No aftermarket conversion is involved.
Q2: How does the 6AT automatic transmission perform with a full load of 15 passengers?
A2: Excellent. The 4F20TC10 diesel produces 330 Nm of torque, and the ZMA613K 6AT has a lock-up torque converter for efficient power delivery. Hill starts are effortless, and the transmission downshifts automatically on descents. For a diesel minibus 6at, it is one of the smoothest in its class.
Q3: What is AEBS and how does it work on this minibus with aebs?
A3: AEBS stands for Advanced Emergency Braking System. It uses a forward-facing radar (mounted near the rearview mirror) to detect vehicles or large obstacles. If the system calculates an imminent collision and the driver does not brake, AEBS applies full braking automatically between 10–80 km/h. It is a lifesaving feature for any minibus for group transport.
Q4: Is the tire pressure monitoring system (TPMS) direct or indirect?
A4: Direct TPMS – each wheel (including the steel spare?) has a sensor inside the valve stem. The spare tire is not monitored (standard practice). The display shows real-time pressures on the instrument cluster. Low pressure or rapid deflation triggers an audible alert.
Q5: What is the real-world fuel consumption of this automatic 15 seater minibus?
A5: Under mixed group transport conditions (50% city / 50% highway), expect 12–14 L/100 km (approx. 20–23 mpg UK). On long motorway runs at 90 km/h, it can achieve 10–11 L/100 km (25–28 mpg UK). The 65L fuel tank provides a range of 460–650 km depending on load and terrain.
Q6: Can this high roof minibus for sale fit into a standard 2.2 meter car park?
A6: No – the overall height is 2285 mm (2.285 m). Most multi-story car parks have 2.0–2.1 m clearance. For parking, use surface lots or facilities marked “high roof accessible”. This is typical for any diesel minibus high roof.
Q7: What is the payload capacity for luggage with 15 passengers on board?
A7: GVW is 3400 kg, curb weight is 2240 kg, leaving 1160 kg payload. Assume 15 passengers × 75 kg = 1125 kg, leaving only 35 kg for luggage – that is tight. Recommendation: remove one row of seats (convert to 13 or 11 seats) for dedicated luggage space, or use a roof box (not factory supported). Most operators use this 15 seater minibus for shorter trips or add a trailer (towing capacity: please check local regulations).
Q8: Is the AEBS system always active, and can it be turned off?
A8: AEBS is active by default each time the engine starts. It can be temporarily disabled via a dashboard button (e.g., for off-road or car wash scenarios), but we recommend keeping it on. The system meets Euro NCAP safety standards for minibus with aebs.
Q9: What maintenance intervals does the 6AT automatic transmission require?
A9: The Zhongma ZMA613K automatic transmission requires an oil and filter change every 40,000 km (or 2 years, whichever first) under normal group transport use. Use only ZM-approved ATF. The differential (rear axle) oil should be changed every 50,000 km.
Q10: Where can I buy this foton view cs2 for sale in the UK or other RHD markets?
A10: Contact Foton’s authorized commercial vehicle distributors. In the UK, several specialist importers offer the right hand drive minibus with IVA (Individual Vehicle Approval) or already type-approved. For Australia, Foton has a dealer network in major cities. We can also provide direct export with RHD compliance documents. This automatic minibus 15 seats is available for order with 6-8 week lead time.
