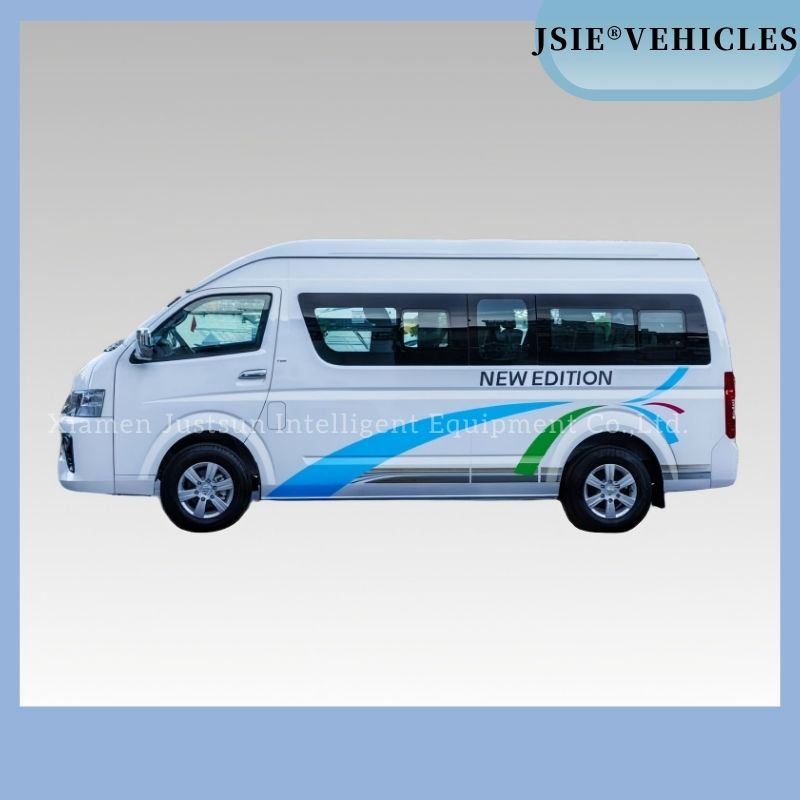

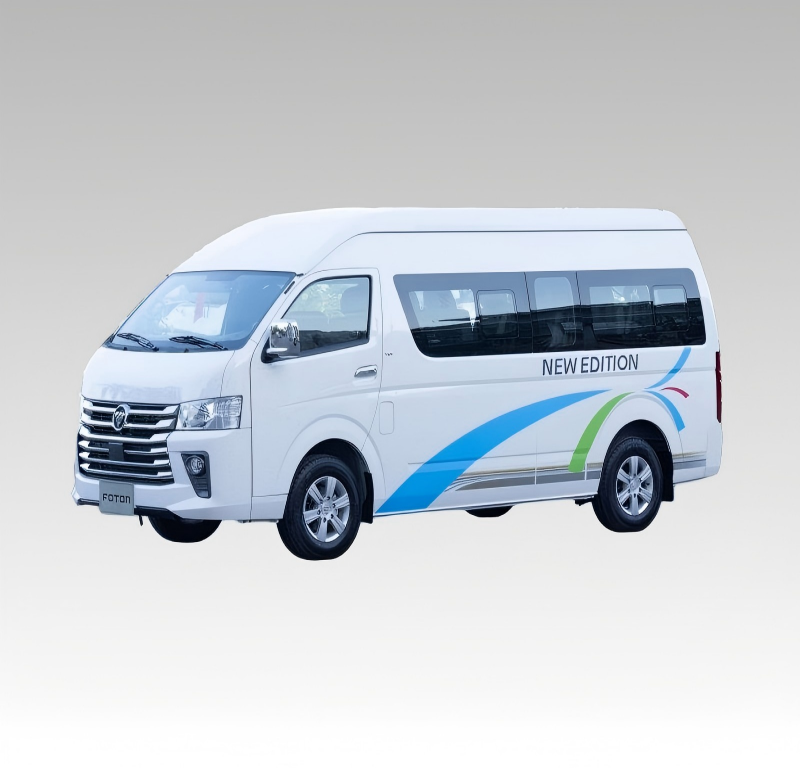

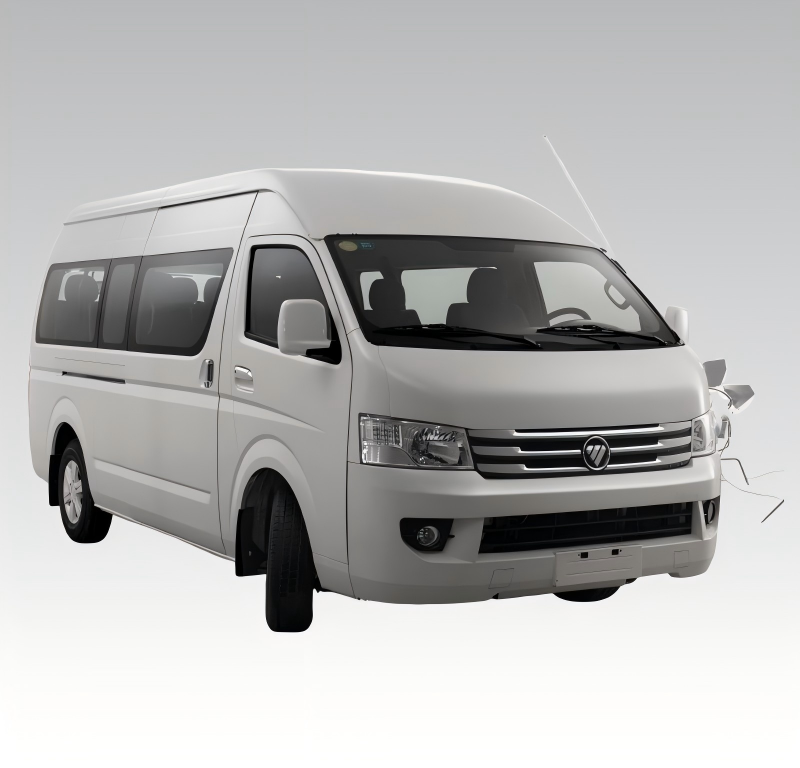

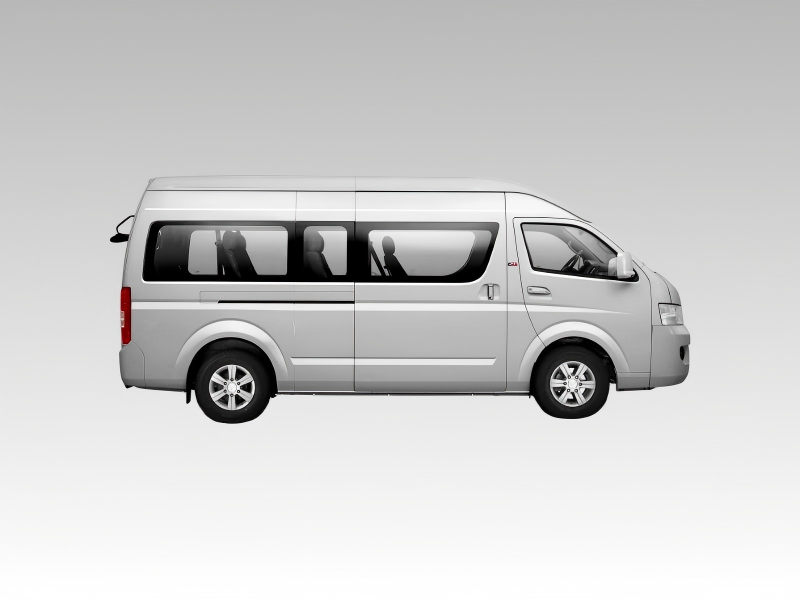

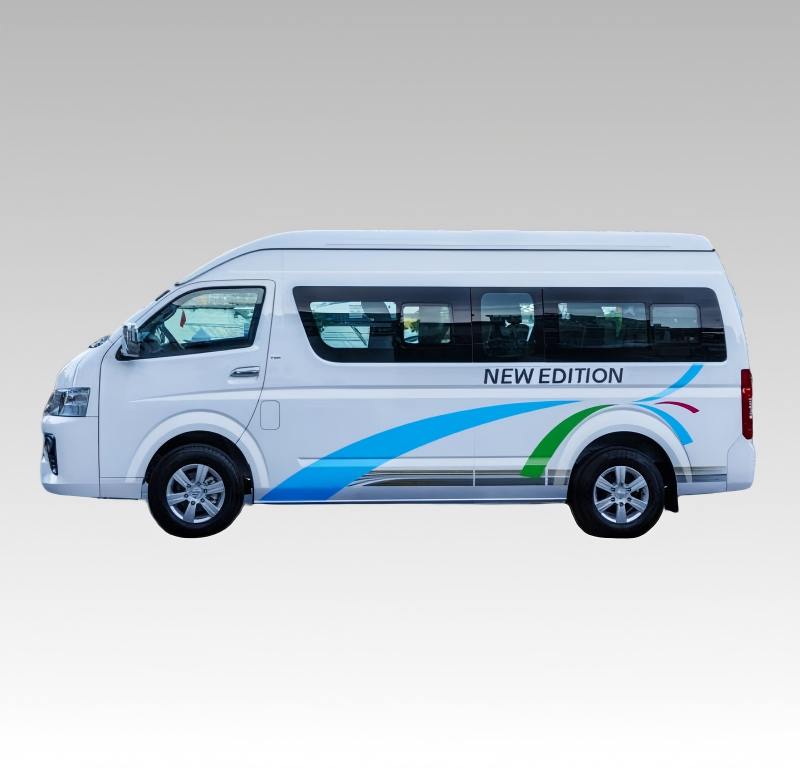

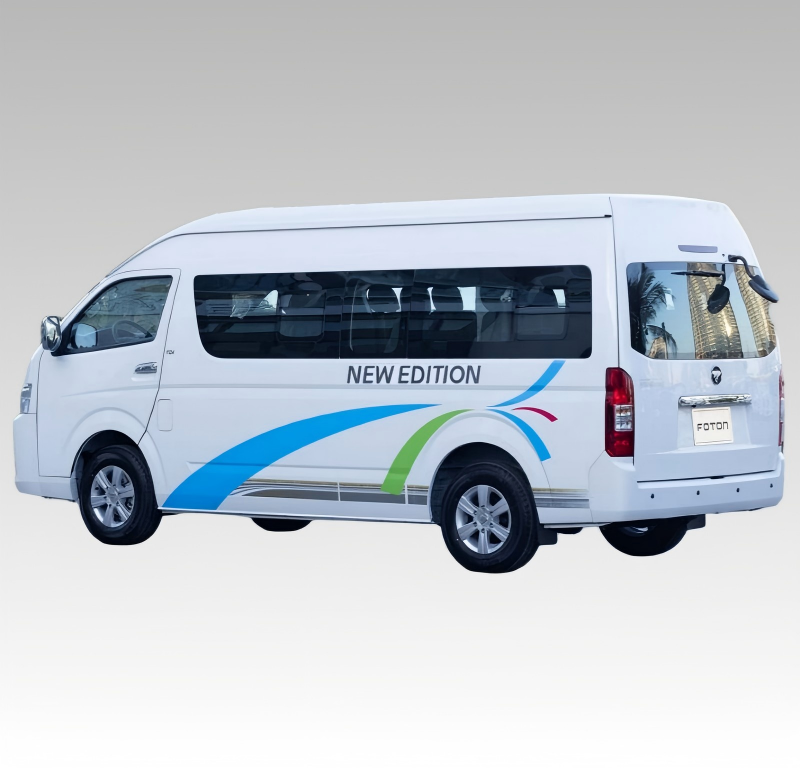

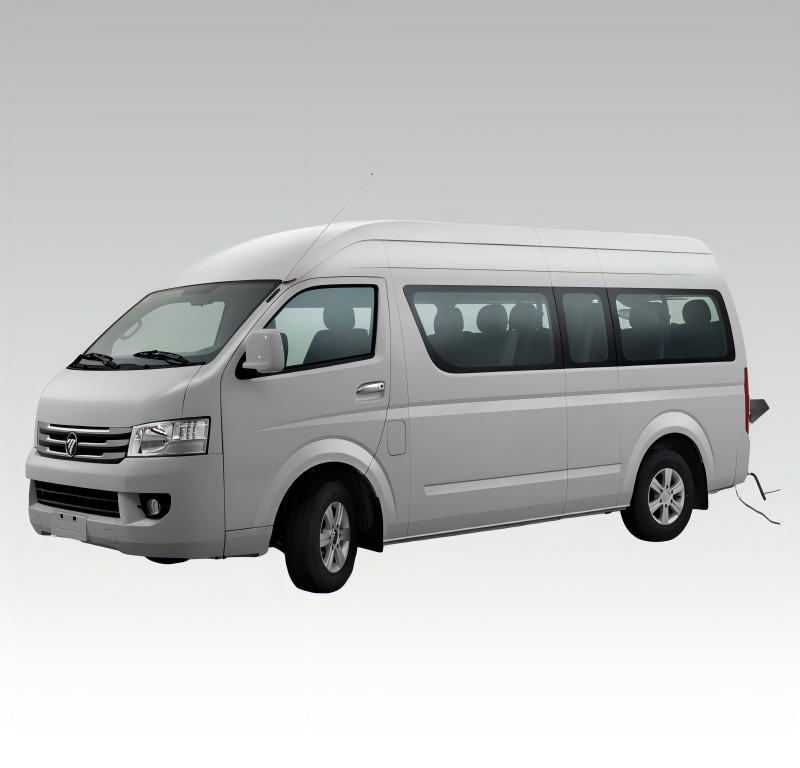

16-Seat RHD High Roof Diesel Minibus Foton View CS2 with ABS/EBD

Product Overview

The Foton View CS2 (Fengjing VK1) is a rugged and reliable 16 seater minibus for sale built for demanding group transport minibus applications. As a factory right hand drive minibus, it is ready for immediate service in the UK, Australia, New Zealand, Southeast Asia, Africa, and other RHD markets. With a high roof (2285 mm overall height), this high roof diesel minibus offers excellent standing room – passengers can move easily to their seats, a key advantage for shuttle and tour operations.

Under the bonnet lies a Foton Cummins diesel engine (2780 cc) producing 100 kW and 200 Nm of torque, paired with a durable 5-speed manual transmission. This 16 passenger diesel van is calibrated to Euro II emission standards, allowing it to run reliably on diesel fuel with higher sulfur content – a major benefit in developing markets or remote areas. The minibus with abs and ebd ensures safe, controlled braking in all conditions. With 16 seats in semi-trim configuration, steel wheels with hubcaps, and a 65L fuel tank, this 16 seater minibus high roof is the ideal shuttle bus 16 seats for sale for hotels, schools, community transport, and tour operators seeking a no-nonsense, cost-effective vehicle.

Key specifications at a glance:

• Dimensions (L×W×H): 5380×1920×2285 mm | Wheelbase: 3110 mm

• Curb weight: 2160 kg | GVW: 3400 kg (1240 kg payload)

• Engine: Foton Cummins diesel, 2780 cc, 100 kW @ 200 Nm (Euro II)

• Transmission: 5-speed manual (Zhongma ZM001AD), axle ratio 4.875

• Brake control: ABS+EBD | Front disc / rear drum

• Tires: 195R16C steel wheels with hubcaps + steel spare (5 total)

• Fuel tank: 65 L diesel

• Roof: High roof | Drive: RHD | Seats: 16 (15 passengers + 1 driver)

• Interior: Semi-trim cab and passenger area

• Rear door: Standard (no defroster/wiper specified)

Key Features

1. Foton Cummins Diesel Engine – The heart of this 16 seater minibus for sale is a robust 2780 cc diesel producing 100 kW and 200 Nm. Built for longevity and fuel efficiency, this engine is widely supported across global markets.

2. Euro II Emission Standard – Unlike modern engines with DPF and AdBlue, this high roof diesel minibus uses Euro II calibration. It tolerates diesel fuel with higher sulfur content (up to 500 ppm), making it ideal for remote areas, developing countries, and fleets that want simpler maintenance.

3. 16-Seat Capacity – With 16 seats (15 passengers + driver), this 16 passenger diesel van maximizes passenger volume per trip. Ideal for school runs, employee shuttles, airport transfers, and group outings.

4. High Roof for Standing Room – At 2285 mm overall height, this 16 seater minibus high roof allows passengers to stand upright in the aisle. Quicker boarding, easier luggage handling, and no head bumping.

5. 5-Speed Manual Transmission – The Zhongma ZM001AD foton cs2 high roof manual gearbox is simple, durable, and economical. The 4.875 axle ratio provides strong low-end torque for hill starts and stop-and-go city driving.

6. ABS+EBD Safety System – This minibus with abs and ebd combines anti-lock braking with electronic brakeforce distribution. ABS prevents wheel lockup during panic stops; EBD balances brake force between front and rear axles based on load – essential for a group transport minibus carrying up to 16 people.

7. Factory Right Hand Drive (RHD) – Built as a genuine right hand drive minibus – no aftermarket conversions. All controls, pedals, and mirrors are RHD-specific for optimal ergonomics and safety.

8. Durable Steel Wheels with Hubcaps – Fitted with 195R16C commercial-grade steel wheels and hubcaps. Steel wheels are stronger than aluminum for pothole-prone roads, and hubcaps are inexpensive to replace. A full-size steel spare is included.

9. Semi-Trim Interior – Durable, easy-to-clean semi-trim upholstery and panels. Designed for heavy daily use in commercial fleets – resistant to spills, dirt, and wear.

10. Large 65L Fuel Tank & Efficient Gearing – The 4.875 axle ratio provides excellent low-speed pulling power while still achieving respectable fuel economy (11–13 L/100 km typical). The 65L tank offers 500–600 km range, reducing downtime for refueling.

Application

This shuttle bus 16 seats for sale is the perfect group transport minibus for:

• School & College Transport – Reliable 16 seater minibus for sale with ABS+EBD for student safety. Semi-trim interior is easy to clean after daily use.

• Hotel & Resort Shuttles – High roof allows standing luggage loading. The right hand drive minibus handles narrow driveways with ease.

• Airport & Corporate Shuttles – 16 seats plus rear luggage area. The 16 passenger diesel van offers economical operation for high-mileage routes.

• NGO & Community Transport – The Euro II diesel engine can run on lower-quality fuel found in remote regions – a significant operational advantage.

• Tour & Excursion Operators – The high roof diesel minibus provides passenger comfort for day trips. Manual transmission gives drivers full control on hilly terrain.

• Staff Transport & Construction Crews – Durable steel wheels and semi-trim interior stand up to heavy use. The foton cs2 high roof manual is built for work.

When you search for a foton view cs2 for sale with the simplicity of Euro II diesel, 16 seats, high roof, and RHD layout, this model delivers outstanding value.

Why Choose This 16-Seat RHD High Roof Diesel Minibus?

Additional advantages of this 16 passenger diesel van:

• Low curb weight (2160 kg) – 1240 kg payload capacity.

• 4.875 axle ratio – Excellent hill-climbing ability, strong off-the-line acceleration.

• Cummins reliability – Proven engine platform with global parts support.

• No complex emissions systems – No DPF regeneration, no EGR issues, no AdBlue refills.

When you compare shuttle bus 16 seats for sale options, the Foton View CS2 with Euro II diesel, ABS+EBD, and high roof offers the lowest total cost of ownership for fleets operating in challenging fuel environments.

Frequently Asked Questions (FAQ)

Q1: Is this a genuine right hand drive minibus or a conversion?
A1: It is a factory-original right hand drive minibus. The dashboard, pedal assembly, steering column, wiper linkages, and mirror geometry are all designed for RHD from the start. No aftermarket conversion is involved.

Q2: Why does this 16 seater minibus for sale have Euro II emissions?
A2: The Euro II calibration allows this high roof diesel minibus to run on diesel fuel with higher sulfur content (up to 500 ppm), which is still common in many developing countries and remote areas. It also eliminates costly emissions components like DPF, AdBlue, and complex EGR systems, reducing maintenance and downtime. For fleets operating where low-sulfur diesel is unavailable, this is a critical advantage.

Q3: Does this minibus have air conditioning?
A3: The base specification (semi-trim, steel wheels) does not include air conditioning. However, front A/C is available as a factory option, and front + rear A/C can be ordered for full cabin cooling. Please specify your climate requirements when ordering.

Q4: What is the real-world fuel consumption of this 16 passenger diesel van?
A4: Under typical group transport conditions (mixed city/highway, full load), expect 11–13 L/100 km (approx. 21–25 mpg UK). The 4.875 axle ratio prioritizes low-speed torque over highway economy. The 65L fuel tank provides a realistic range of 500–600 km.

Q5: What is the payload capacity with 16 people on board?
A5: GVW is 3400 kg, curb weight is 2160 kg, leaving 1240 kg payload. With 16 persons (driver + 15 passengers) at 75 kg each = 1200 kg, that leaves 40 kg for luggage – very tight. For most school or staff transport where passengers carry minimal bags, this works. For airport runs with luggage, we recommend converting to a 14-seat layout (remove one row) to free up cargo capacity.

Q6: Does this foton view cs2 for sale have rear wiper and defroster?
A6: The specification shows no rear door details (blank). This means the standard rear door does not include a wiper or defroster. A ground view mirror is not listed either. For all-weather visibility, we strongly recommend ordering the rear visibility pack (defroster + rear wiper + ground view mirror) as an option – please request when ordering.

Q7: What is the difference between the ZM001AD 5MT and other transmissions?
A7: The Zhongma ZM001AD is a robust 5-speed manual designed for commercial use. With a 4.875 final drive ratio, it provides strong low-end torque for hill starts and loaded acceleration. It is simpler and more durable than 6-speed units, with lower replacement cost. Perfect for a group transport minibus that operates in stop-start urban conditions or hilly terrain.

Q8: What maintenance does the Euro II diesel engine require?
A8: Service intervals: engine oil & filter every 7,500–10,000 km (or 6 months); fuel filter every 15,000–20,000 km; valve clearance check every 50,000 km. No DPF cleaning, no AdBlue refills. Use diesel with sulfur content up to 500 ppm (if available, lower sulfur is fine). This 16 seater minibus high roof is very forgiving on fuel quality.

Q9: Are 3-point seat belts available for all 16 seats?
A9: The base semi-trim configuration typically includes lap-sash (3-point) belts for the driver and front passenger. Rear passenger seats often have lap belts unless specified. For fleet use requiring 3-point belts on all seats, please request the full safety pack option at order.

Q10: Where can I buy this shuttle bus 16 seats for sale in RHD markets?
A10: We export directly to RHD countries. For the UK, the vehicle requires IVA (Individual Vehicle Approval) – we provide all compliance documents. For Australia, New Zealand, South Africa, and Southeast Asian nations, Foton has authorized dealer networks. We also supply directly to fleet buyers. Lead time: 6–8 weeks from order. Contact our export team for a detailed quotation including freight, local taxes, and optional extras (e.g., air conditioning, rear visibility pack, 3-point belts for all seats, reverse camera).
