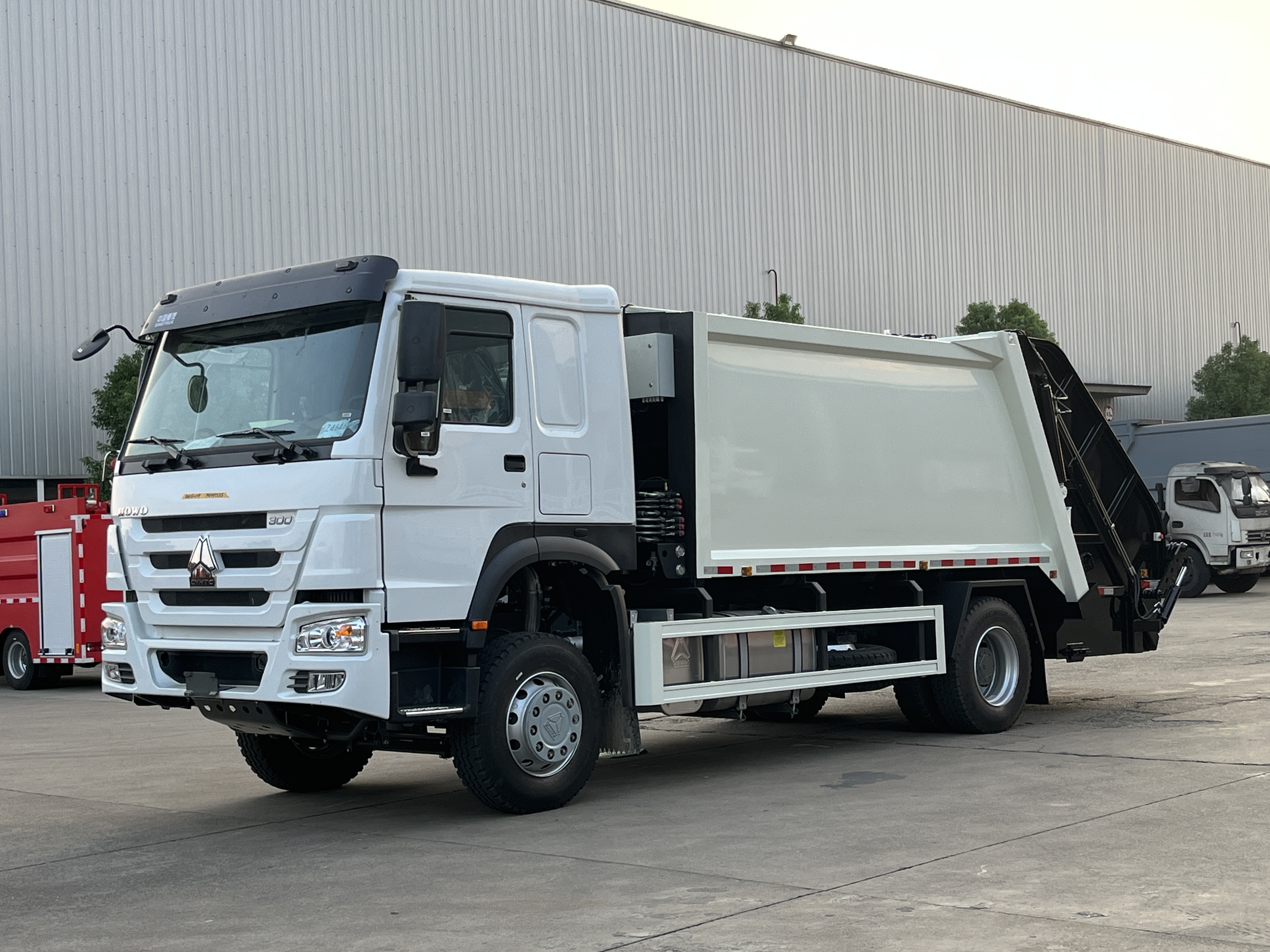

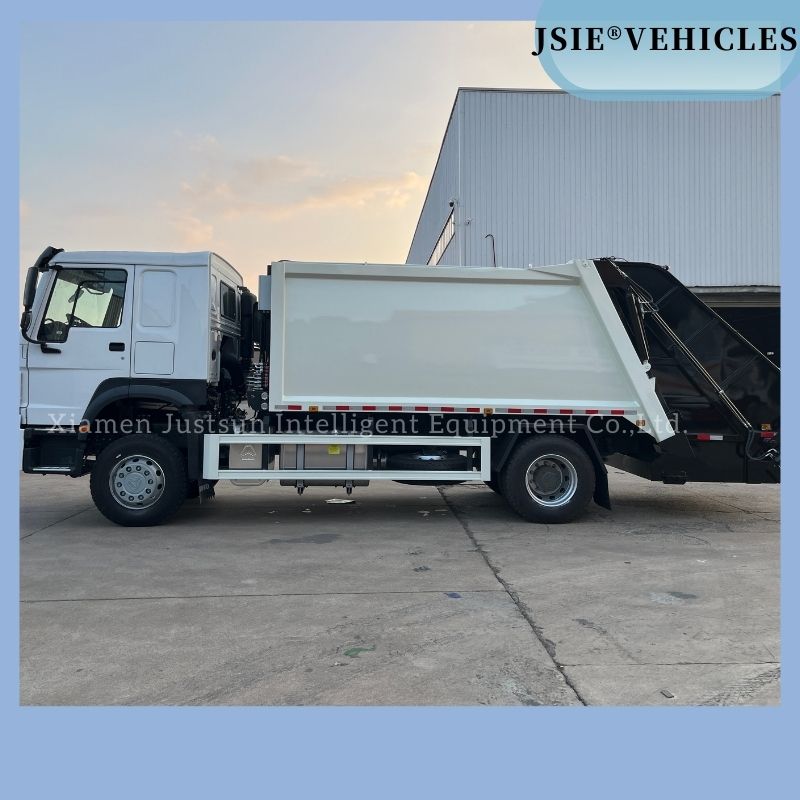

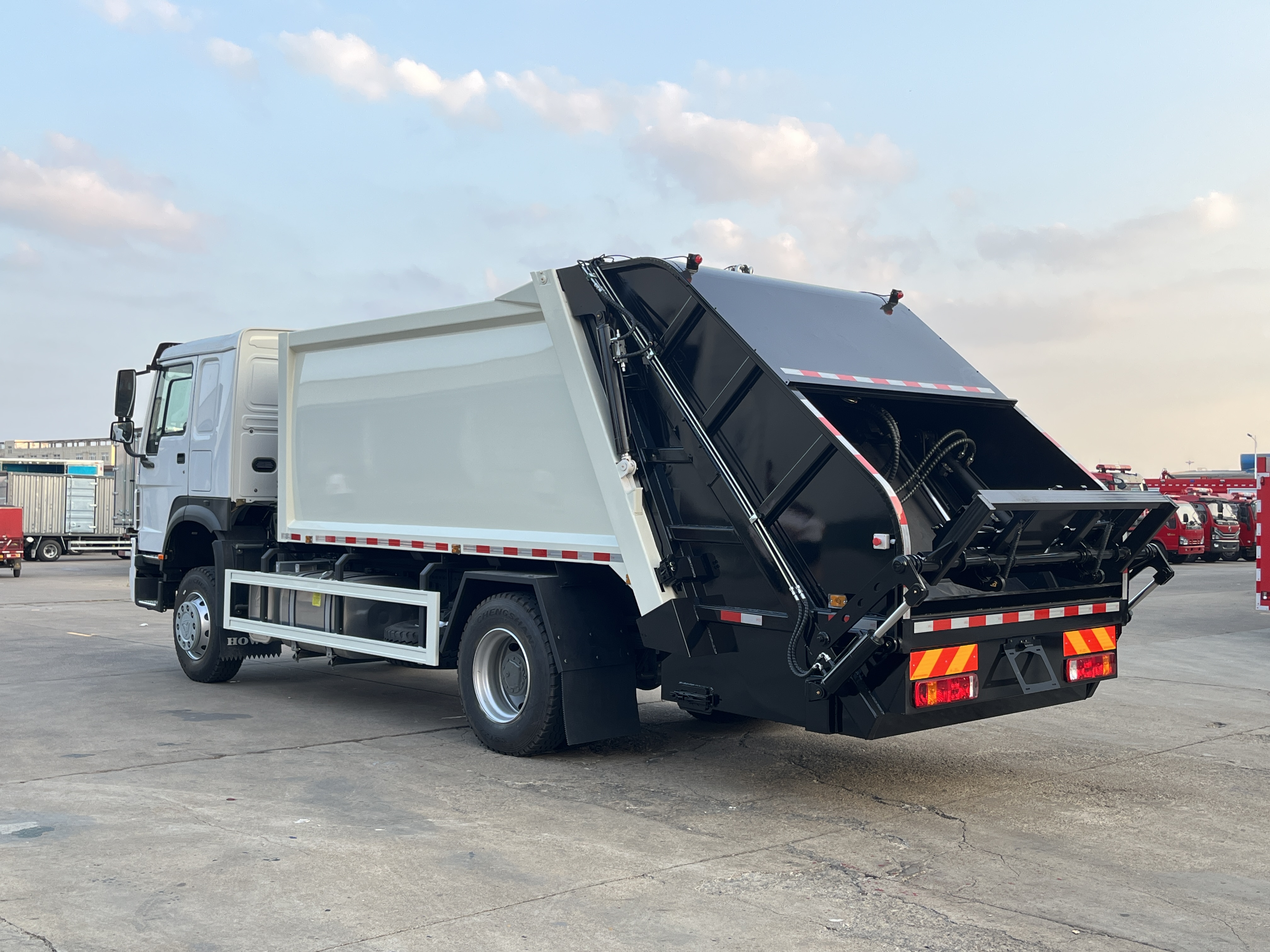

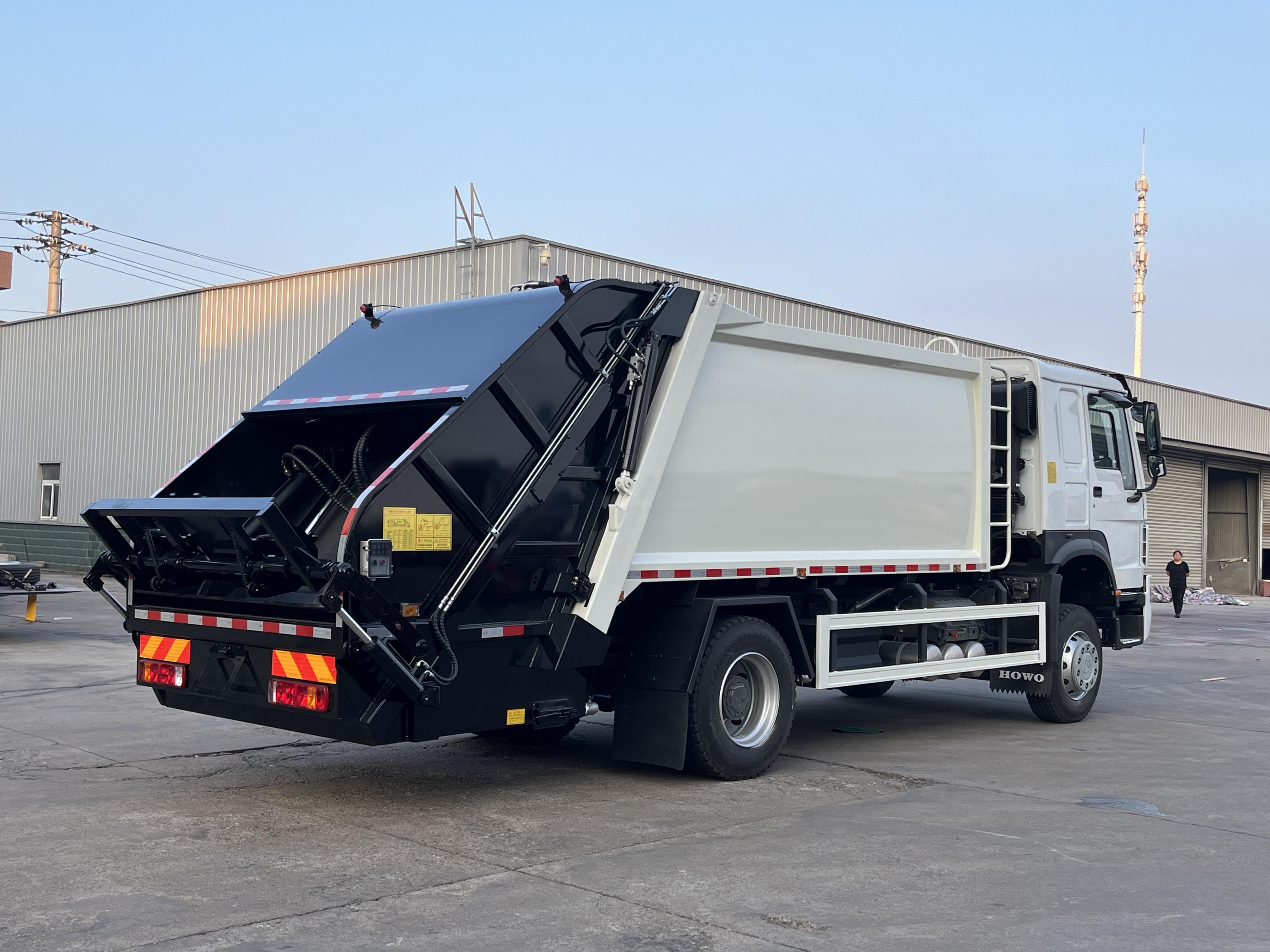

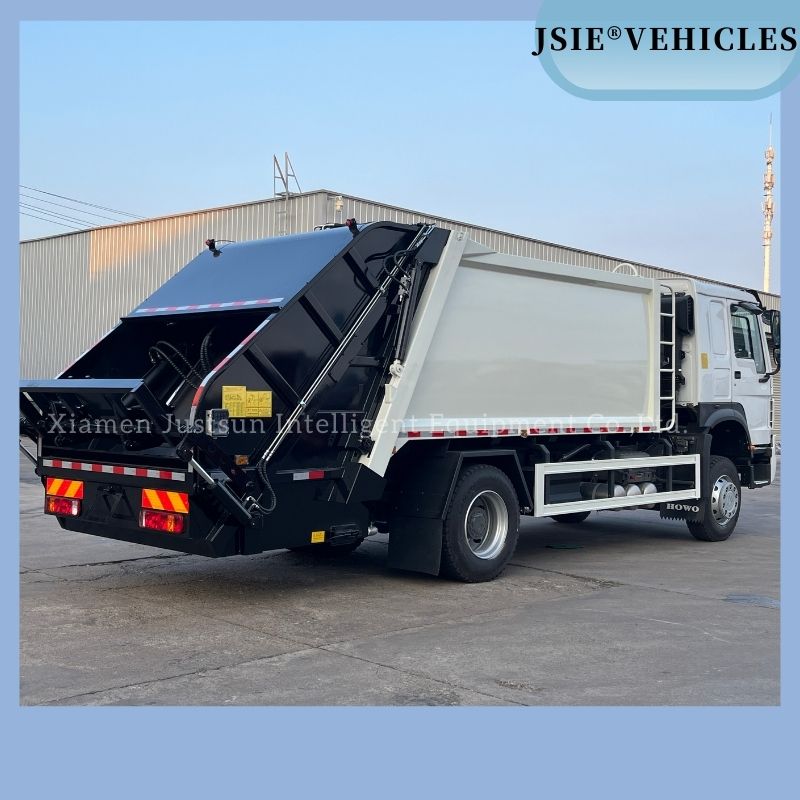

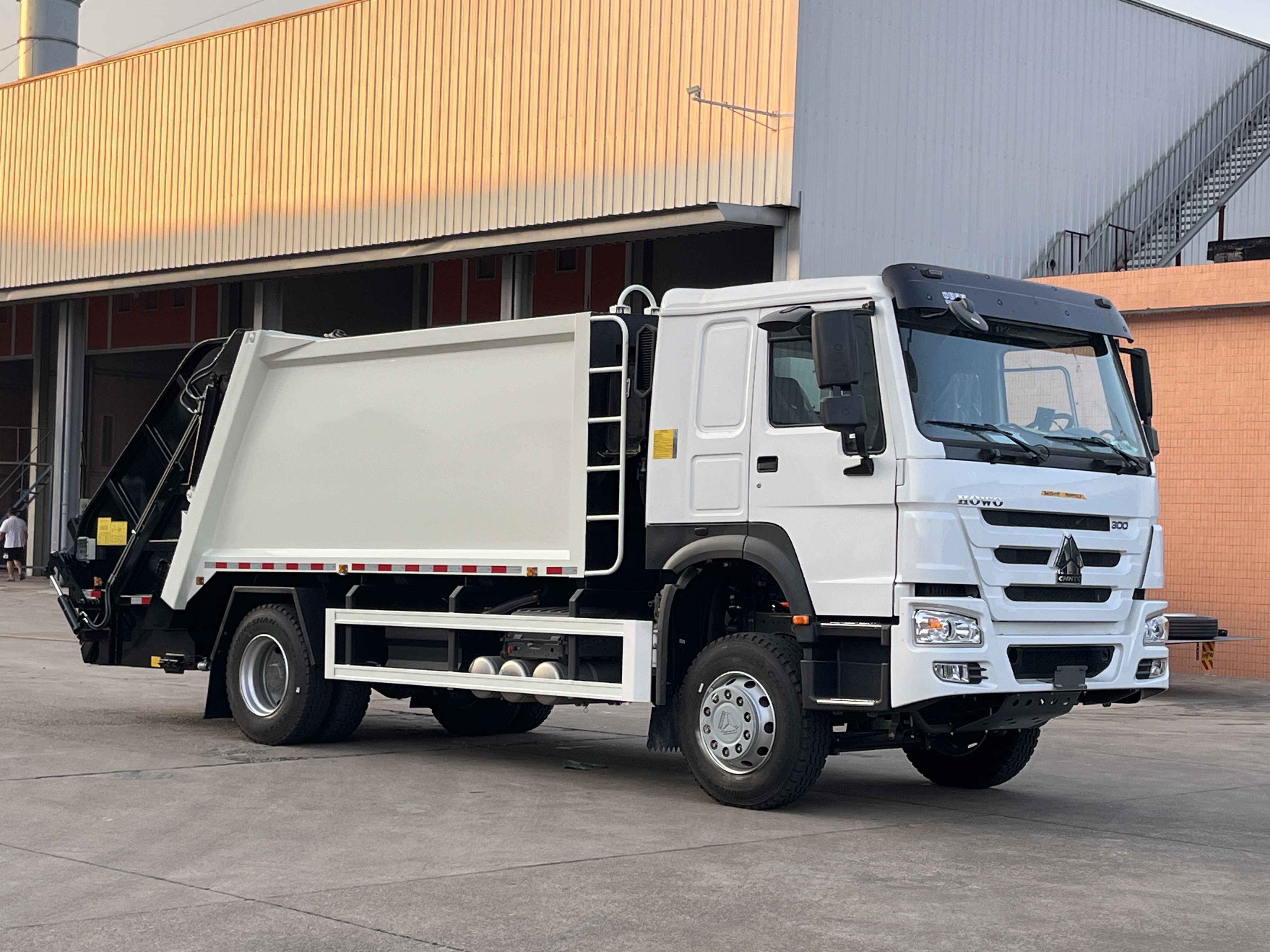

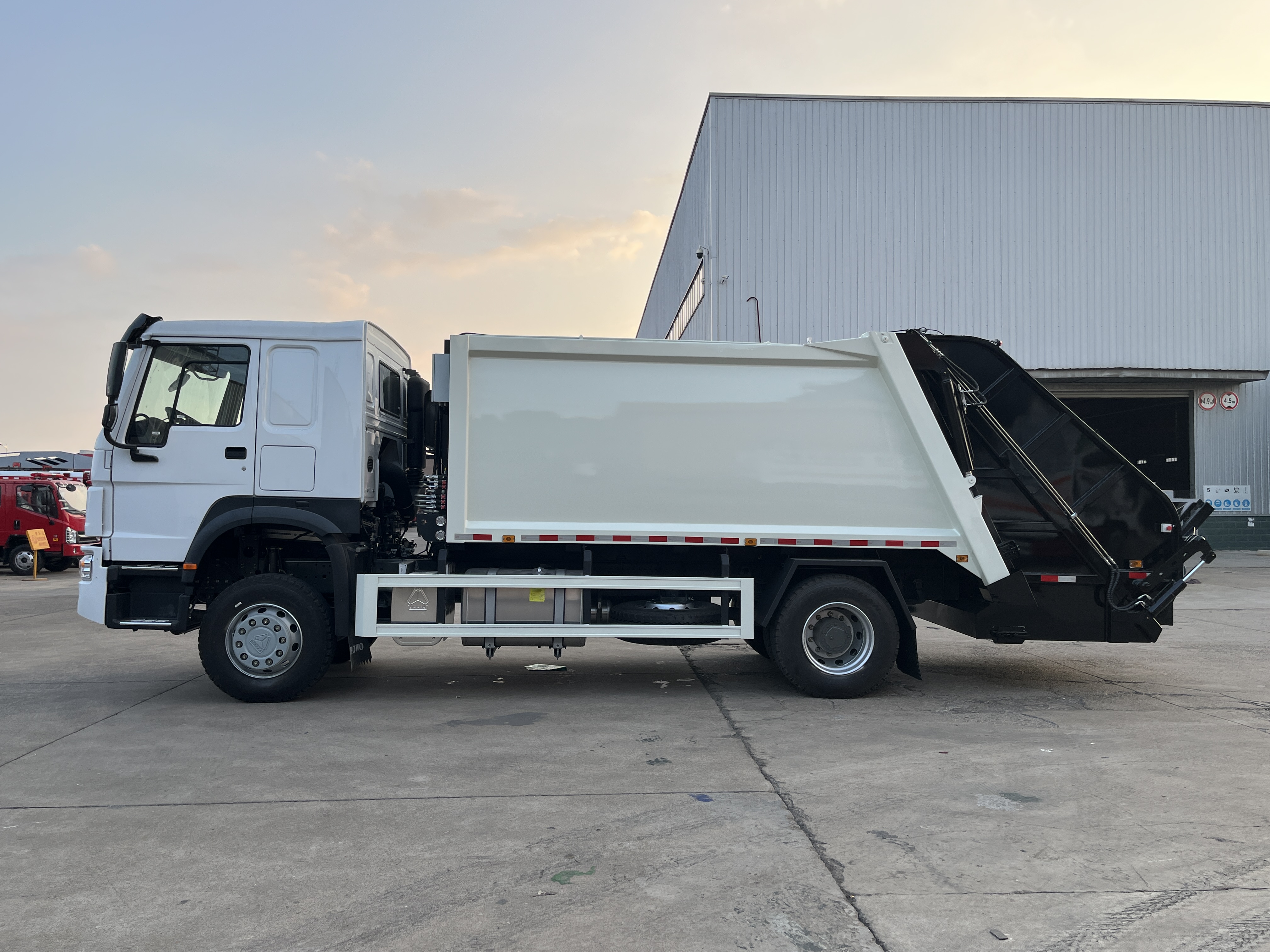

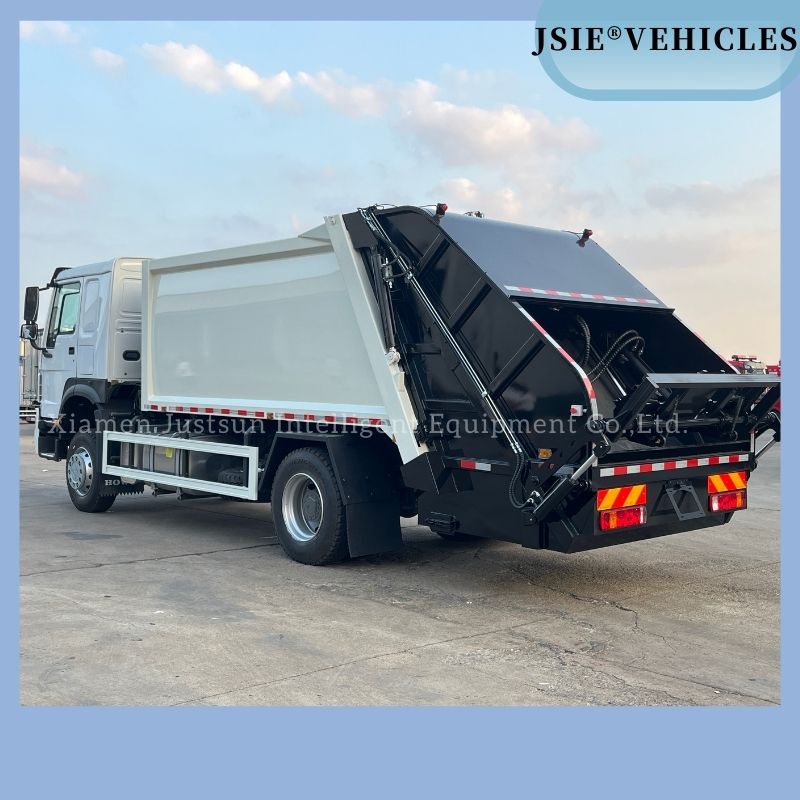

20m3 Garbage Compact Truck with Allison Automatic Transmission

Cabin

Single and half row / RHD

Whole vehicle main dimensions

Overall dimensions (LxWxH)mm

10185×2550×3500

Wheelbase(mm)

4350+1300

Weight data

Curb weight(kg)

15300

GVW（kg）

25000

Persons in cab

2

Whole vehicle main performance

Max. speed（km/h）

89

Engine

Model

Cummins C260 33

Emissions standards

Euro 3

Displacement（L）

8.3

Rated Power（Hp）

260

Max torque （N.m/rpm）

1090

Gearbox

FAST brand

10JS120T(10R/2R)

Front axle

Type/Main reducetion ratio

7T

Rear axle

Type/Main reducetion ratio

10T*2

Brake system

Service brake

Drum pneumatic braking

Parking brake

Brake gas brake

Auxiliary brake

Engine exhaust brake

Wheels and tire size

10+1( 11.00R20)

Car body structure

Volume

20m³

Body shape

Curved box

Body material and thickness

Material: T420 manganese steel Thickness of side plate: 4mm Thickness of bottom plate: 5mm

Dozer

Material:Q345 manganese steel

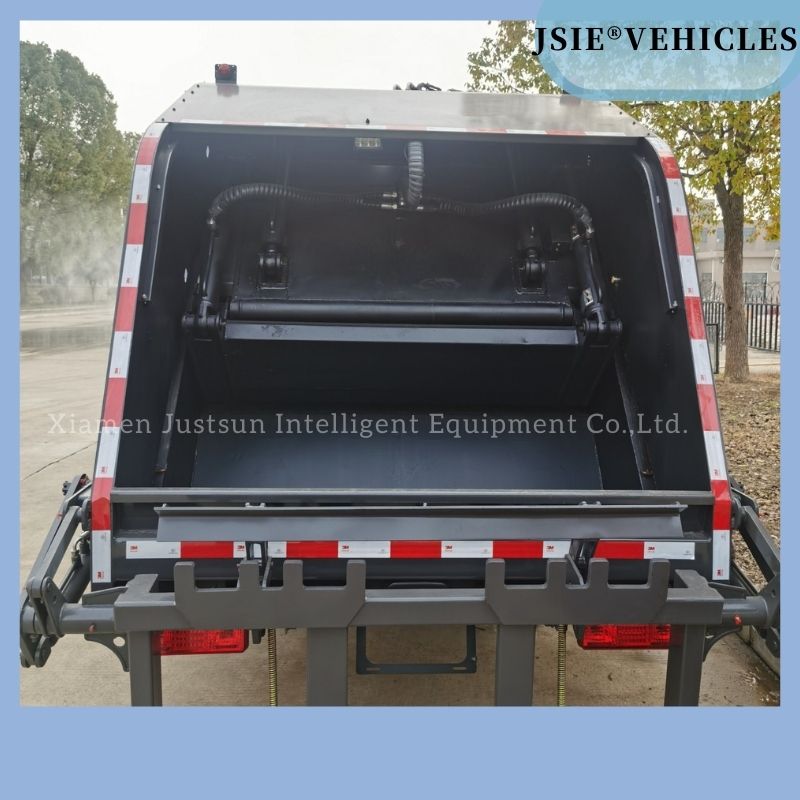

Filler

Material:Q345 manganese steel

Front sewage tank

Material:Q235 carton steel volumb:160L

Flip frame

Material:Q345 manganese steel

Climb the ladder

One side of the car body, material: Q235 carbon steel

Hydraulic system

Dozer cylinder

1 piece

Scraper cylinder

2 piece

Skateboard cylinder

2 piece

Rear flip cylinder

2 piece

Lifting cylinder

2 piece

Hydraulic tank

90L 1 piece

Hydraulic tubing

Black rubber steel wire hose and steel oil pipe

Hydraulic oil pump

Hefei Wanye Oil Pump

power takeoff

Pava

Multi-way valve

Yangzhou Zhongmei multi-way valve, balance valve

System working pressure

20MPa

Manual operation

1 set on the rear side of the cab

Electric control system

operating system

CAN electric control system and manual operation device

Electronic control operation button

1 set at the left or right of the rear of the car body

Compression parameters

Garbage density after compression

0.5-0.8t/m3

Loading time once

Less than 30s

Unloading operation time

Less than 40s

Compression ratio

1:5 or more
