Feature: | Carry Sand, Stone, Mine, Garbage and so on |
Dimension(L*W*H): | 9700*2480*3300mm (27CBM) 10100*2480*3300mm(33CBM) |
Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
The thickness of body | Side wall: 6mm Bottom floor: 8mm |
Model: | JS9600TJZT |
Capacity(CBM): | 27CBM-40CBM |
Tare weight(kgs): | 9,300kgs(27cbm) 10,500kgs(33cbm) |
Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5/2 |
Landing gear: | JOST brand two-speed manual operation 19 |
Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 |
Axle: | Original BPW-12T/ FUWA-13T |
Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
Hydraulic system | Hyva brand |
Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
Accessory: | One tool box; one set of standard tool |
We can build the trailers according to customer's design and requirement |
Overview

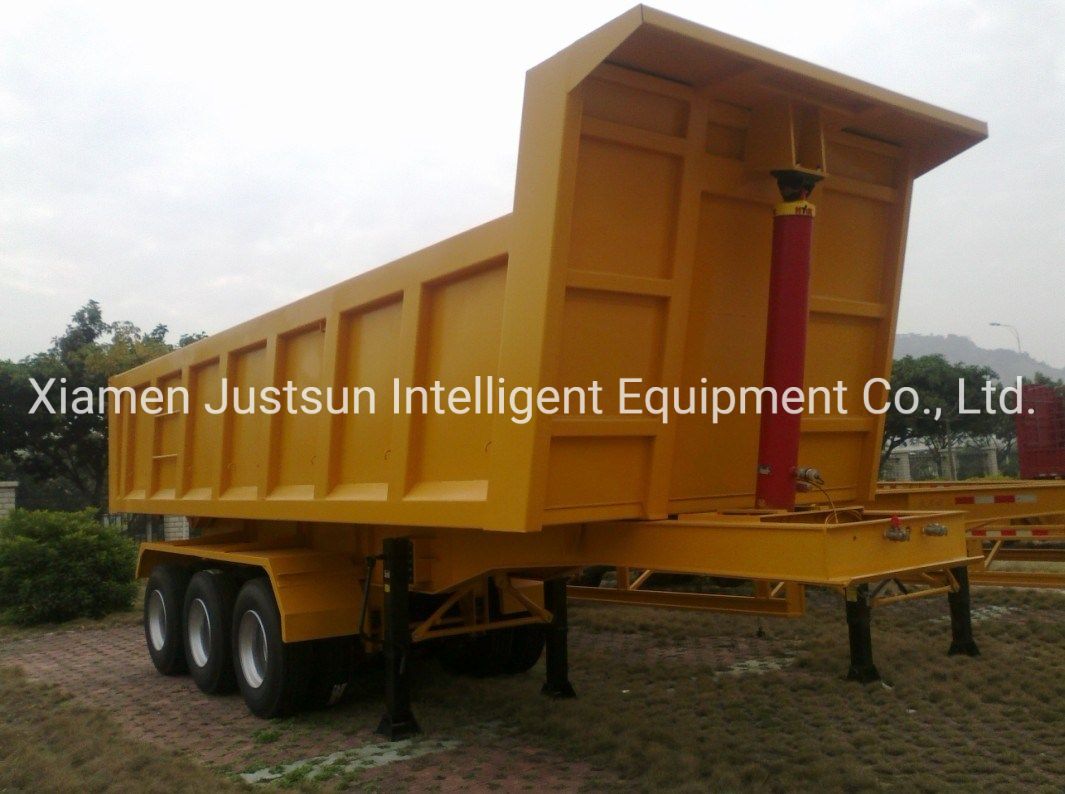

The 3 Axles 60 Tons Capacity Rear Dump Trailer is specially engineered for heavy-duty material transportation in mining, construction, quarrying, and large-scale infrastructure projects. Built with a reinforced chassis, high-strength steel dump body, and reliable hydraulic lifting system, this rear dump trailer ensures maximum durability, high efficiency, and outstanding load-bearing performance for demanding work environments.
Whether you are hauling sand, stones, minerals, coal, or building materials, this dump trailer delivers superior productivity, reduced downtime, and long service life.
Key Features
1. Heavy-Duty 60T Load Capacity
Designed to carry large quantities of bulk materials, ensuring stable performance even under extreme working conditions.
2. Reinforced High-Strength Dump Body
Made from Hardox / Wear-Resistant Steel (optional)
Greater resistance to impact and abrasion
Longer service life and reduced maintenance costs

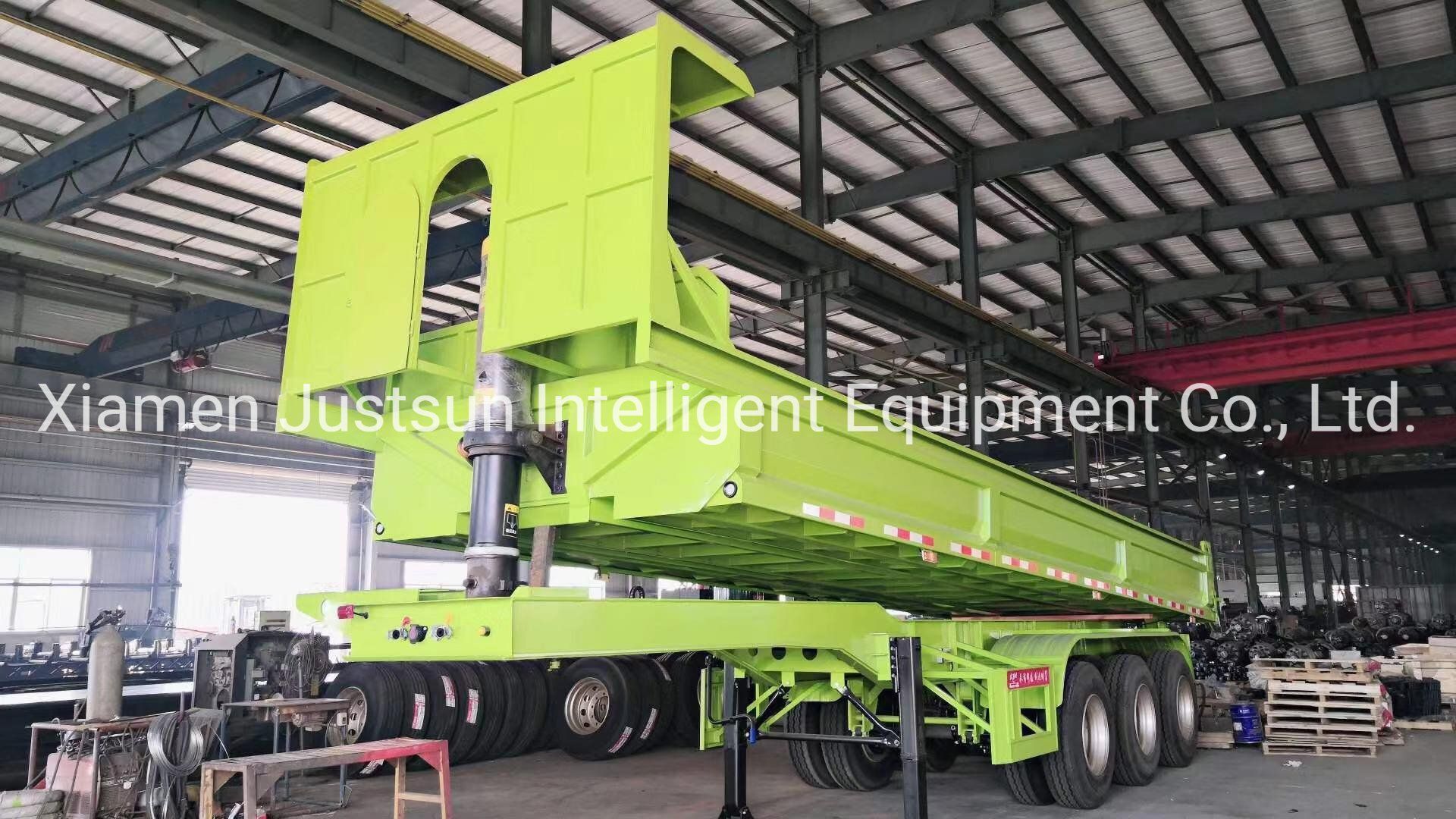

3. Reliable Hydraulic Lifting System
Equipped with a high-pressure hydraulic cylinder to ensure smooth, fast, and safe unloading, improving overall operational efficiency.
4. Durable Tri-Axle Design
FUWA / BPW axles optional
Heavy-duty leaf springs or suspension systems
Optimized for stability under heavy loads
5. Strong & Long-Lasting Chassis
Constructed using Q345B steel and full-automatic submerged arc welding for superior structural integrity and fatigue resistance.
6. Flexible Customization Options
Tipper box dimensions
Side wall height
Steel material (Hardox/Q345B)
Axle brand
Tires, suspension, painting, branding
We offer tailored solutions to match your business needs.
Applications
The 3-axle 60-ton dump trailer is ideal for transporting:
Suitable for mining operations, large construction sites, engineering projects, and long-distance bulk transportation.
