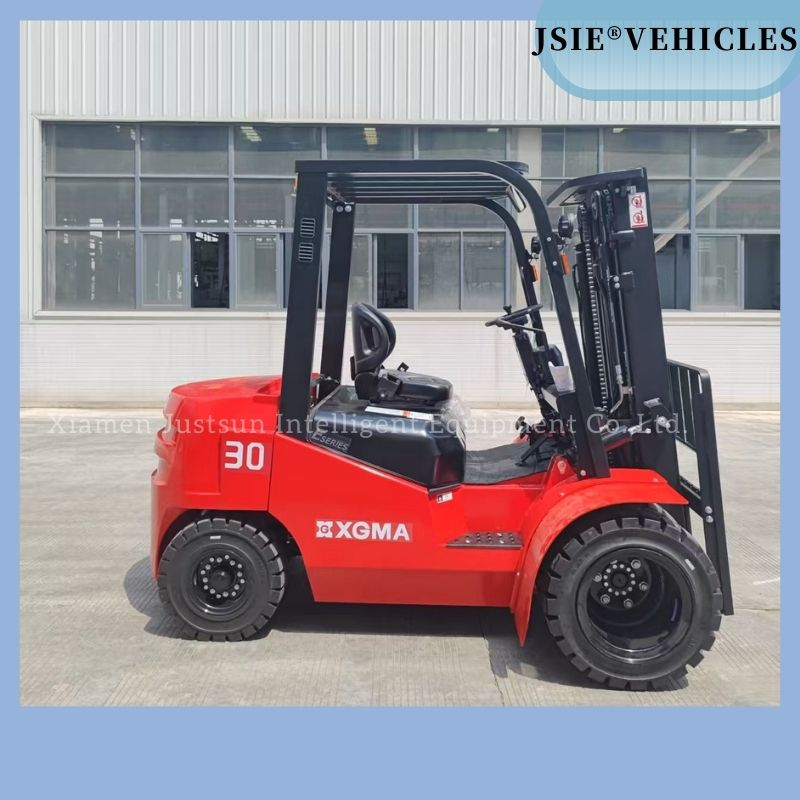

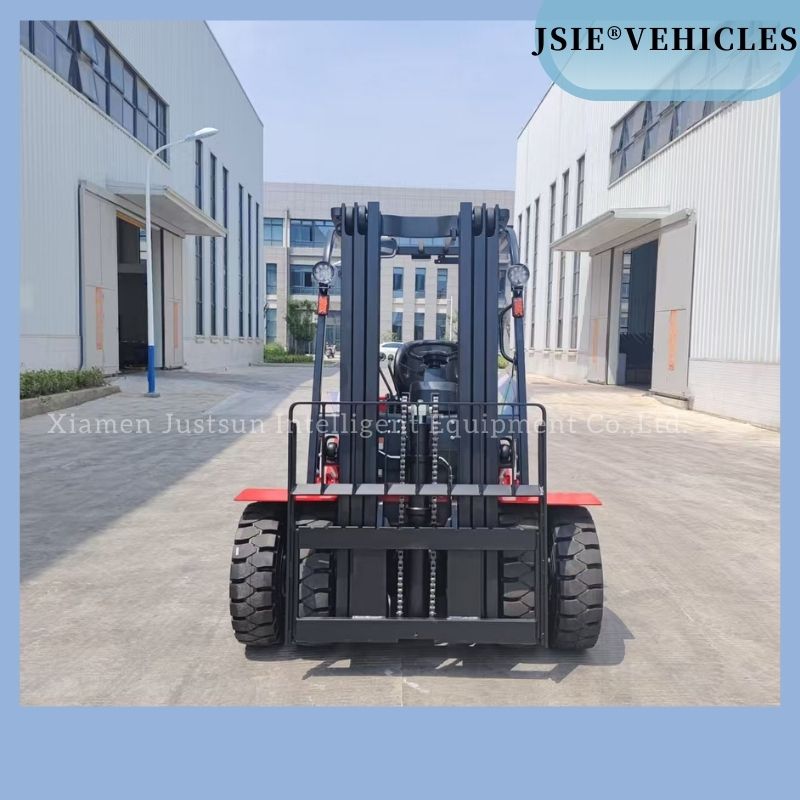

3t Lifting Capacity 2 Stage 3m Mast Forklift

Share to:

3t Lifting Capacity Heavy Duty Diesel Forklift

After-sales Service : 6 Months Warranty of Spare Parts
Warranty : 6 Months Warranty of Spare Parts
Cab : Location Not Adjustable
Type : Diesel Forklift
Power : Diesel Engine
Load Capacity : 2t-6t
Fuel : Diesel
Load center : 500mm
Lift height : 3000~5000mm
Condition : New
Feature : Ideal for Warehouse Management
Product Standard : 2760*1240*2130mm
Product Trademark : JSIE
Product Origin : China

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
JSIE30T
Brand:
JSIE
Code:
8427209000

Payment

T/T

Min Order

Port

Shanghai

Qingdao

Xiamen

Package

Nude

Model			UNIT	JSIE30T
Specifications	Power Unit			Diesel
	Operator Type			Driver/Seat
	Transimission Box Type			Automatic Transimission
	Rated Capacity		kg	3000
	Load Center		mm	500
	Max.Lifting Height		mm	3000
	Tire Type			Pneumatic Tire
	Tire Number	Front		2
		Rear		2
	Tire Size	Front		28×9-15-14PR
		Rear		6.5-10-10PR
Performance	Lifting Speed	Loaded	mm/s	480
		Unloaded		500
	Lowering Speed	Loaded	mm/s	420
		Unloaded		400
	Travelling Speed	Loaded	km/h	20
		Unloaded		21
	Max.Gradeability (Loaded)		%	20
	Max.Drawbar Pull (Loaded)		kn	17
	Mast Tilting Angle (Fwd/Bwd)		deg	6/12
	Free Lifting Height		mm	150
	Turning Radius		mm	2395
Dimensions	Overall Length (with fork)		mm	3800
	Overall Width		mm	1240
	Overhead Guard Height		mm	2145
	Fork Size (LxWxT)		mm	1220×125×45
	Mast Height (Fork lowered)		mm	2140
	Battery (Voltage/Capacity)		V/Ah	12/90
	Truck Weight		kg	4250
	Fuel Tank Capacity		L	70
Engine	Brand			XINCHAI	MITSUBISH	ISUZU
	Model			C490	S4S	C240
	Rated Power		kw/rpm	40/2650	35.3/2250	35.4/2500
	Rated torque		n-m/rpm	160/1600-2000	169/1700	137.7/1800
	Number Of Cylinder			4	4	4
	Displacement			2.67	2.49	2.37

Overview

Our diesel forklift truck is designed for heavy-duty material handling operations, offering strong lifting power, excellent durability, and reliable performance in outdoor or industrial environments. With a reinforced chassis and highly efficient diesel engine, this forklift ensures maximum productivity in warehouses, construction sites, logistics centers, and manufacturing facilities.
