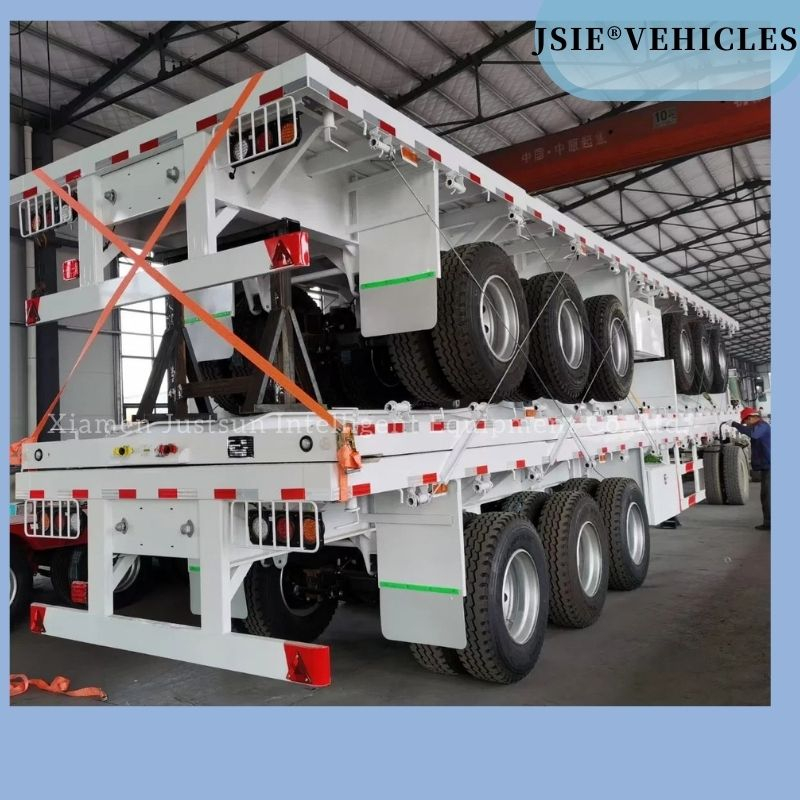

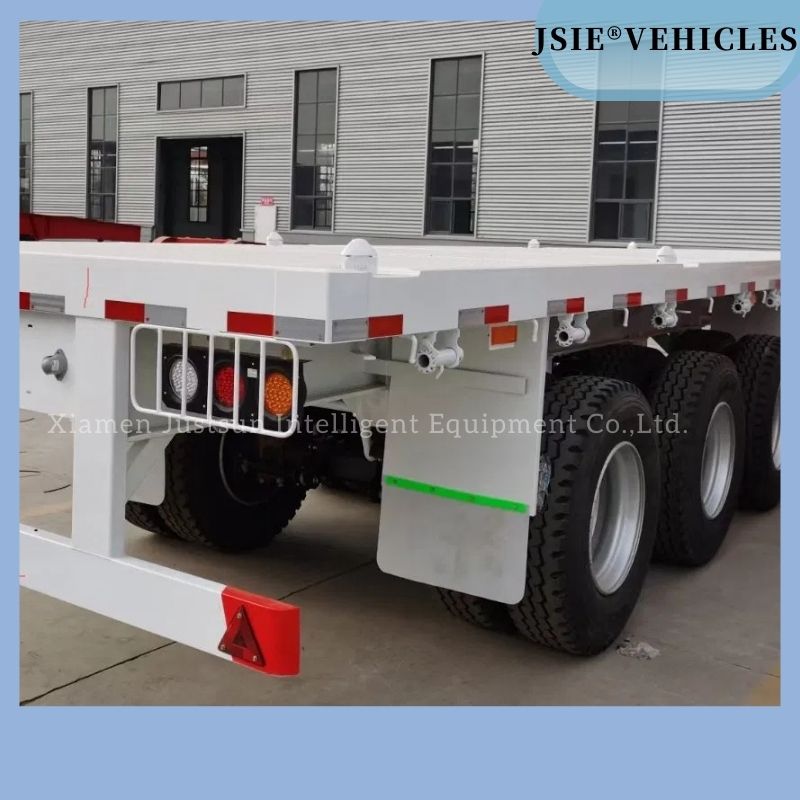

40FT 13m 3 Axles Heavy Duty Flatbed Semi Trailer

Dimension(L*W*H):

13000mm*2500mm*1600mm

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Model:

JSIE9380TJZP

No. of axle:

3

Payload(kgs):

50000

Tare weight(kgs):

6000

Kingpin:

50# Bolt-in style

Landing gear:

JOST brand two-speed manual operation 19

Tire size:

CHAOYANG 385/65R22.5 (7 PCS)

Rim size:

11.75*22.5

Axle:

FUWA-13T

Suspension

Air suspension (can change to steel pring )

Brake system:

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Container locks

8PCS

Accessory:

One tool box; one set of standard tool
