Feature: |
Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid |
Dimension(L*W*H): |
11700*2500*3750mm(40,000L) |
Model |
JSIE 9400BFT |
Material: |
Carbon Steel |
Stainless Steel |
Aluminum |
Compartment: |
4 (optional ) |
Capacity(kgs): |
30,000L-45,000L |
Tare weight(kgs): |
10,000-11,000kgs |
10,000-11,000kgs |
6,000-7,000kgs |
Kingpin |
The world-famous JOST brand bolt-in/welded type 3.5/2 |
Landing gear |
JOST brand two-speed manual operation 19 |
Tire size |
11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
Rim size |
8.25*22.5,9.00*22.5,11.75*22.5 |
Axle |
Original BPW-12T/ FUWA-13T |
Leafs spring |
Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
Brake system |
One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. |
Manhole: |
Aluminum alloy ø500mm(20) manhole with aluminum alloy cover; with breather valve; |
Discharge Valve |
Aluminum alloy discharge valve with cover |
Foot Valve |
Pneumatic control DN80 aluminum alloy foot valves |
Pneumatic Control system |
1set Pneumatic Control combined switch 1unit emergency switch |
Discharge Hose |
2 units 3×6M factory PVC hose with quick coupling on both ends |
Vapor Recovery Overfill system |
Optional |
Fire Extinguisher Carrier |
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside |
Electric system: |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
Prime Topcoat painting |
S.A.2.5 standard sandblasting ;Zinc-rich Polyurethane painting |
We can build the trailers according to customer's design and requirement. |
Overview

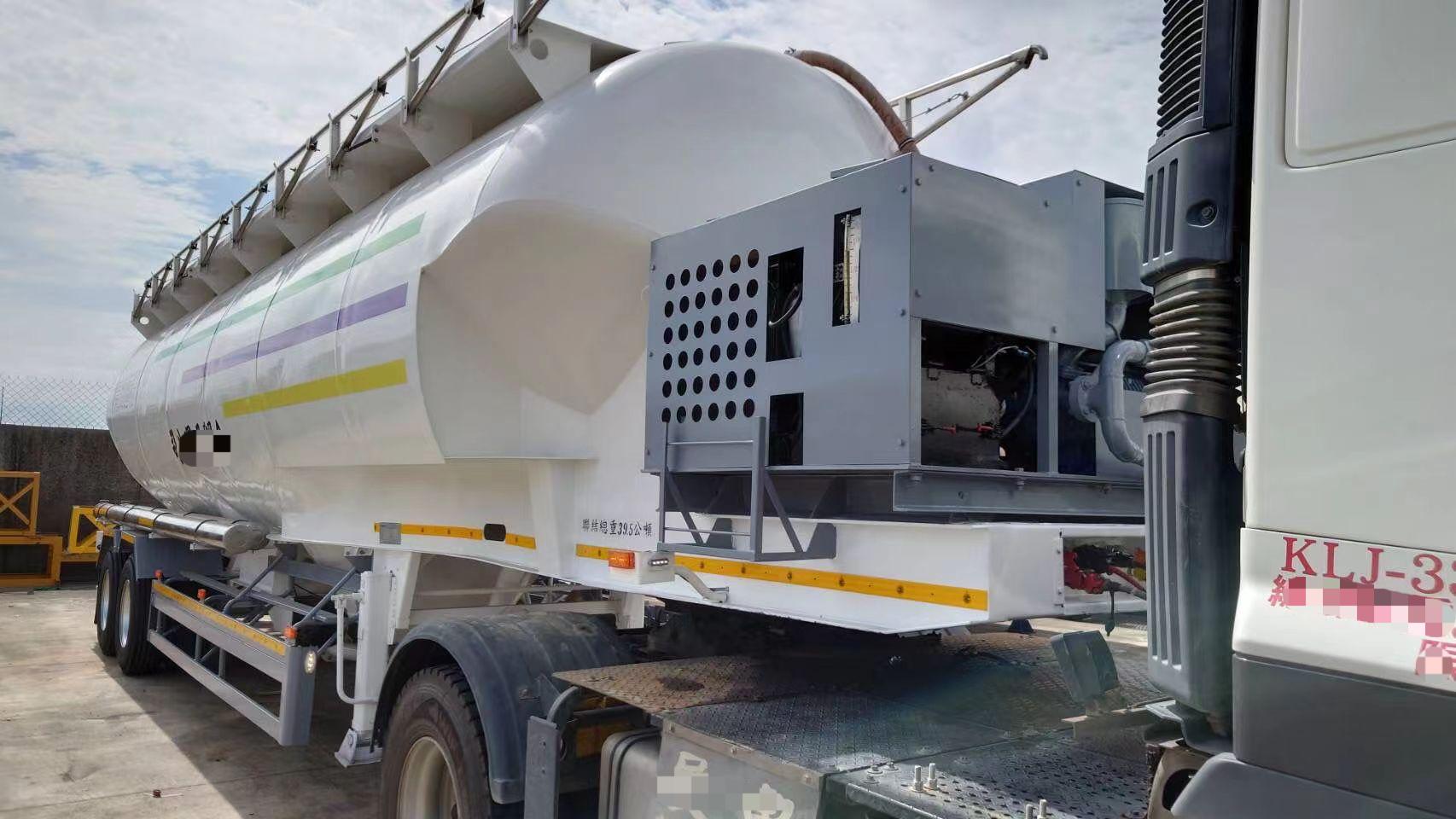

Our Bulk Flour Transport Tank is engineered specifically for food-grade dry powder logistics. Made from high-quality stainless steel, this tank ensures hygienic, contamination-free transport for flour, starch, and other fine food powders. With a durable structure, optimized pneumatic unloading system, and easy-clean design, it provides reliable performance for bakeries, mills, wholesalers, and logistics companies.
If your business needs safe, efficient, and compliant bulk flour transportation, this is the solution.
Key Features
1. Food-Grade Stainless Steel Construction
Crafted from 304/316L stainless steel
Anti-corrosion, anti-contamination
Smooth interior surface meets food safety standards
2. High-Efficiency Pneumatic Unloading System
3. Hygienic & Easy to Clean
CIP-ready interior (Clean-In-Place)
Wide-access manholes for manual washing
Fully sealed to prevent moisture entry
4. Optimized Tank Structure
Reinforced body for stability and long service life
Advanced pressure design for safe powder handling
Multiple capacity options (20–45 m³)
5. Customizable Configurations
Available options include:
Applications
This stainless steel bulk tank trailer is ideal for transporting:
Widely used in:
Why Choose Our Bulk Flour Transport Tank?
Our 42m³ bulk flour transport tank is engineered with a focus on food safety, efficiency, and reliability. With advanced welding technology, strict quality inspection, and flexible customization options, we provide a professional solution for global bulk food transportation markets.
The tank is suitable for export to Africa, the Middle East, Southeast Asia, Europe, and South America, meeting diverse operational and regulatory requirements.
Frequently Asked Questions (FAQ)
Q1: How is the flour unloaded from the tank?
The tank uses a pneumatic discharge system, allowing fast and clean unloading with very low residue, improving efficiency at delivery points.
Q2: Is there any risk of contamination or residue?
The inner surface is smooth and polished, which minimizes powder adhesion. Residue rate is typically ≤ 0.3%, meeting food transportation hygiene standards.
Q3: Can the tank be cleaned easily?
Yes. The stainless steel inner wall is easy to clean and suitable for frequent washing and product switching, helping prevent cross-contamination.
Q4: Can the tank be customized?
Yes. We offer customization including tank volume, material grade, air compressor brand, discharge system, and chassis configuration.
Q5: Is this bulk flour tank suitable for export markets?
Yes. The design is suitable for Africa, Middle East, Southeast Asia, Europe, and South America, and can be configured to meet local regulations.
