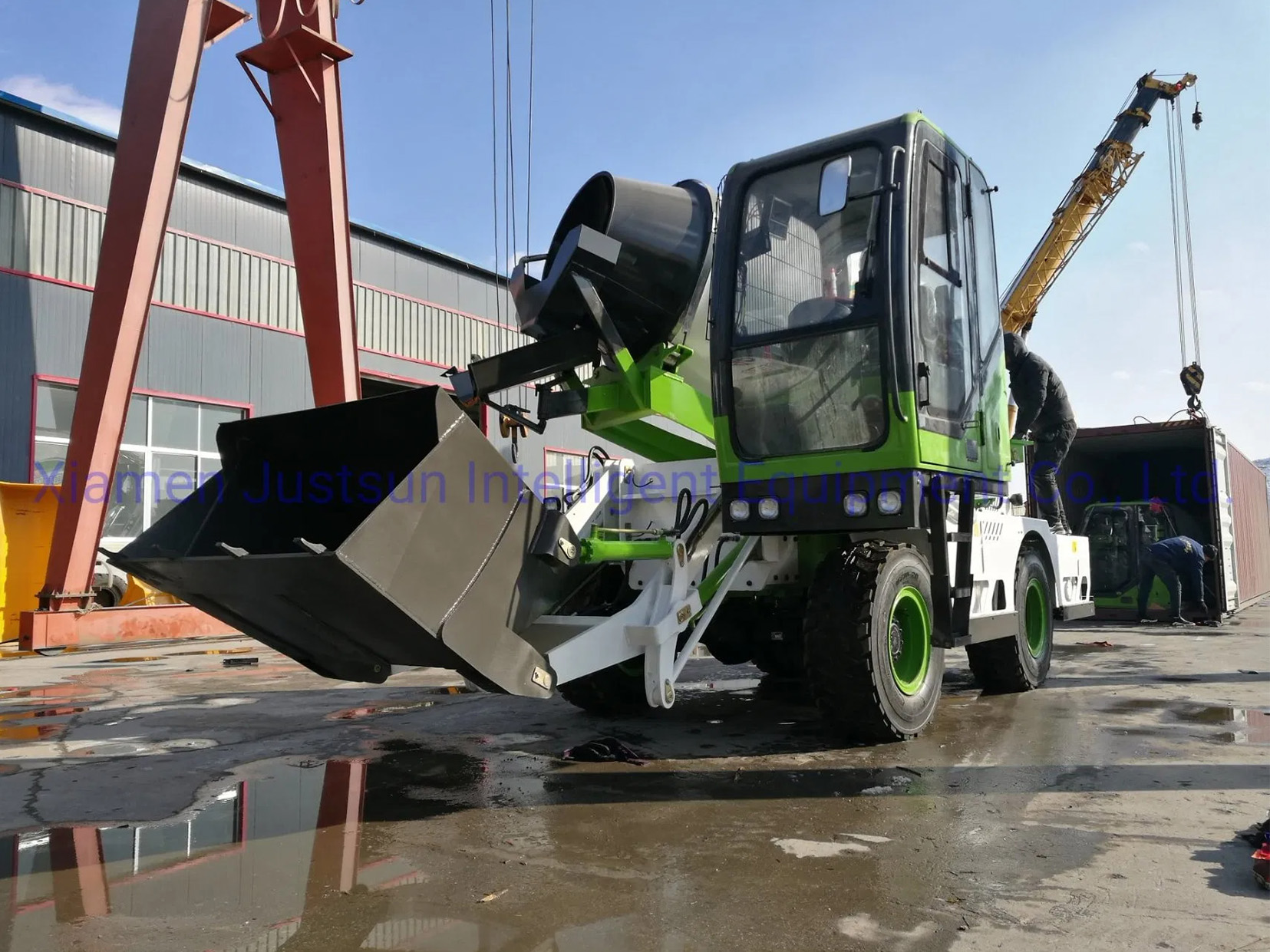

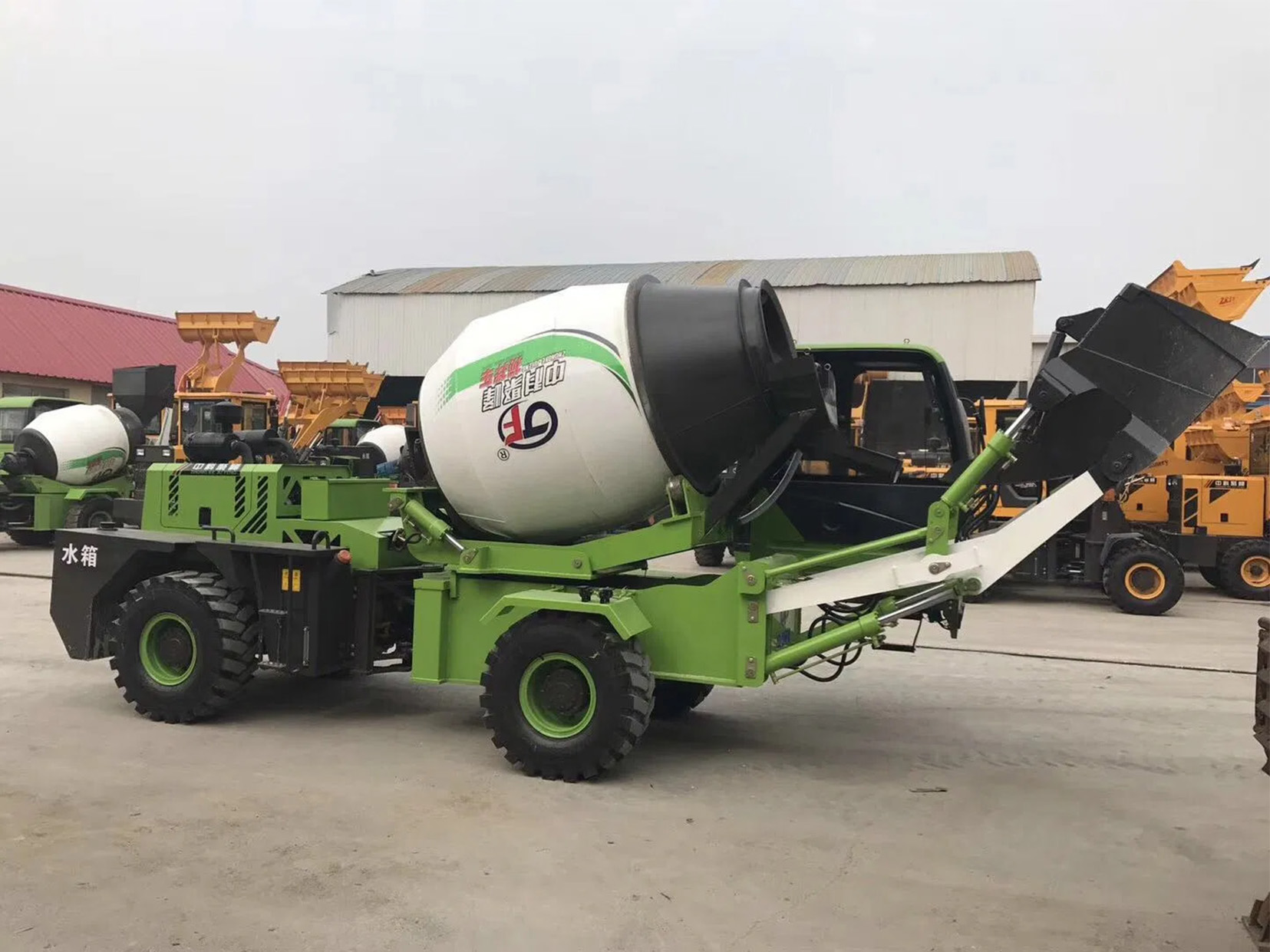

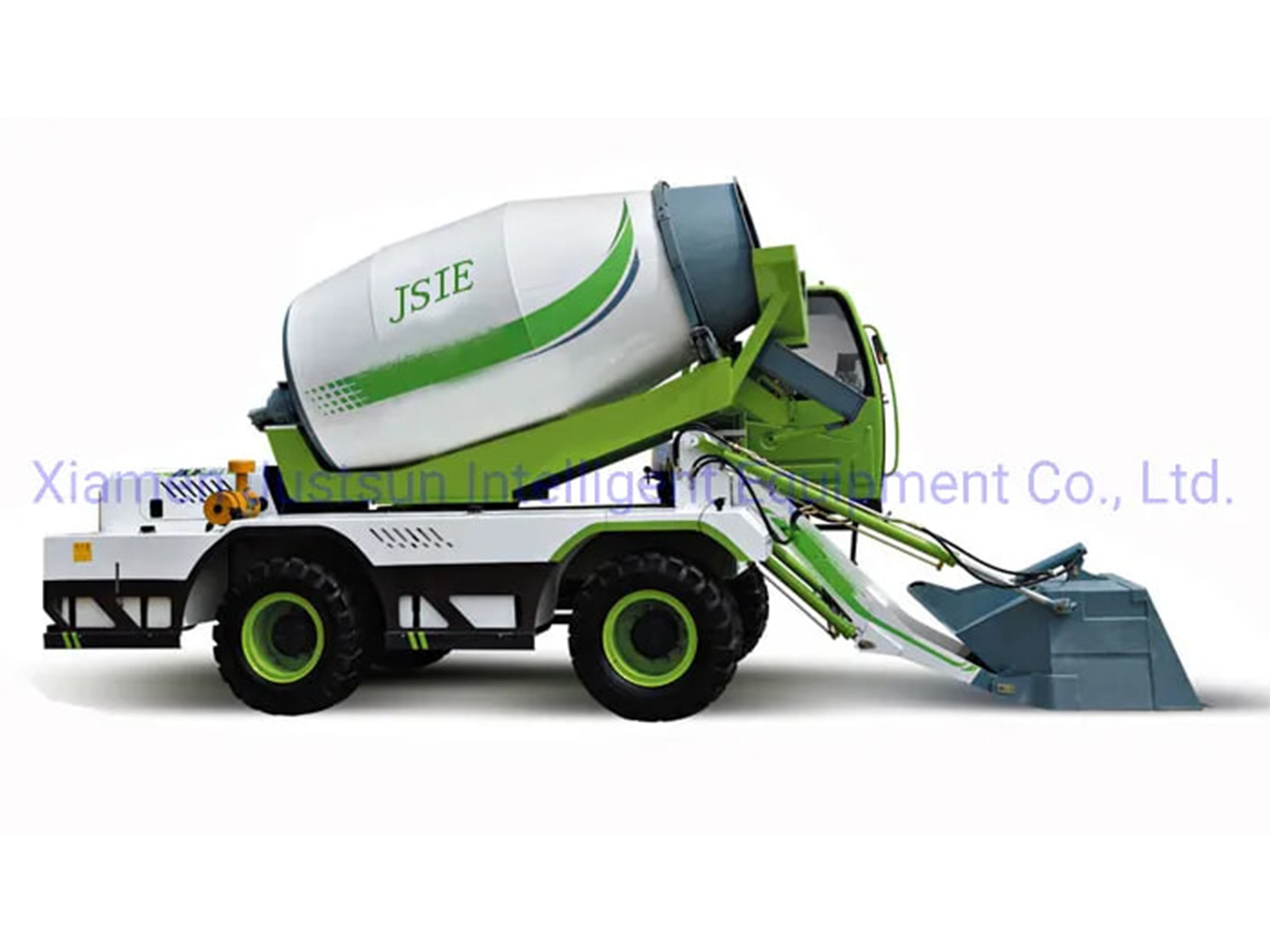

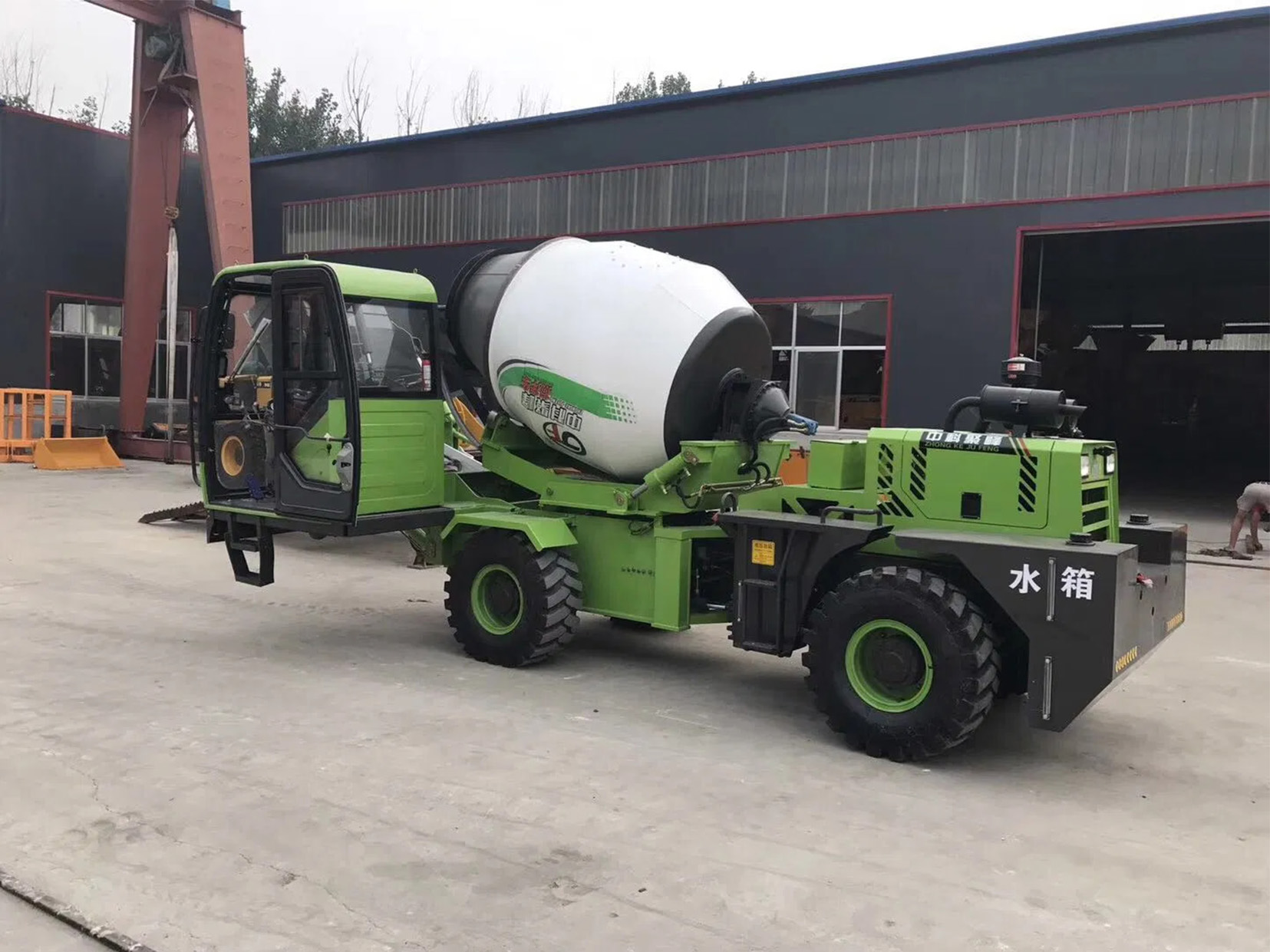

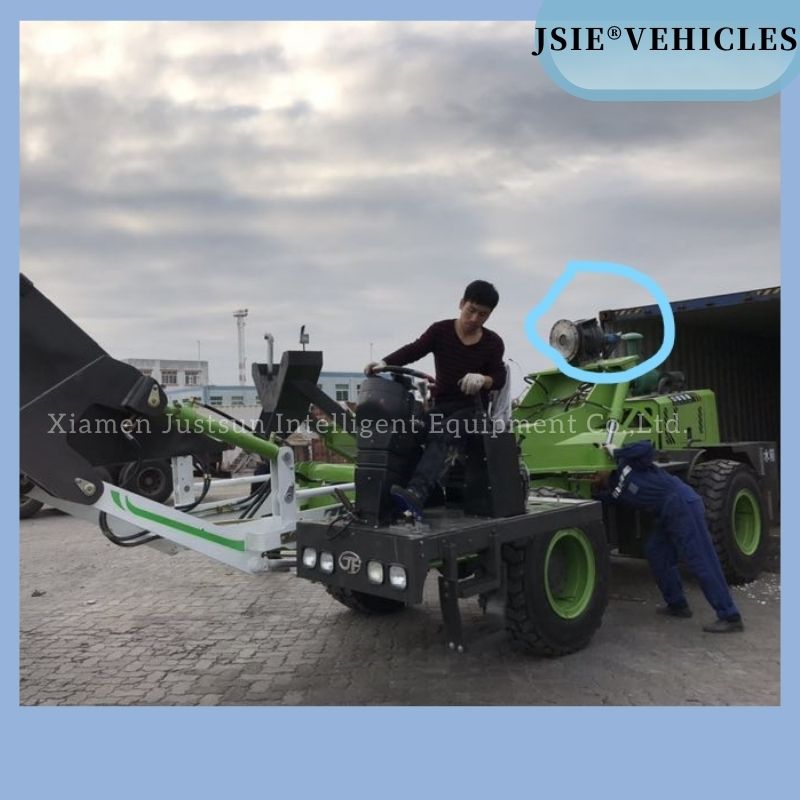

4m3 Self-Loading Concrete Mixer Truck

Data of complete

Overall dimension(LxWxH):

7500x2850x3600mm

Wheelbase:

2450mm

Curb weight:

8500kg

Drive form:

Torque converter

Top speed.:

35km/h

Maximum gradeability:

30

Minimum turning radius:

4000mm

Minimum ground clearance:

330mm

Maintain the amount of annotation

Fuel tank:

230L

Total hydraulic system capacity :

170L

Oil:

16L

Water supply system parameters

Water tank capacity:

660L

Water supply mode:

time relay

Engine

Model:

Yuchai YCD4122G

Rated power:

85kw

Transmission case

Model:

ZL-280 power shift transmission

Gear:

4 forward 4 back

Conventional parameters

Equipment model:

JBC40

Parameters of hydraulic system

Reducer:

KY07-5-J

Pump:

Parker pump

Motor:

HA2FM56/ 61W-VTD527

Stiring and unloading:

The double cone roller has a double helical agitating screw and a convex bottom

Dum geometry capacity .6000L Drum rotation speed: .__ .17 pm Concrete yield. 4.0m' 1 can

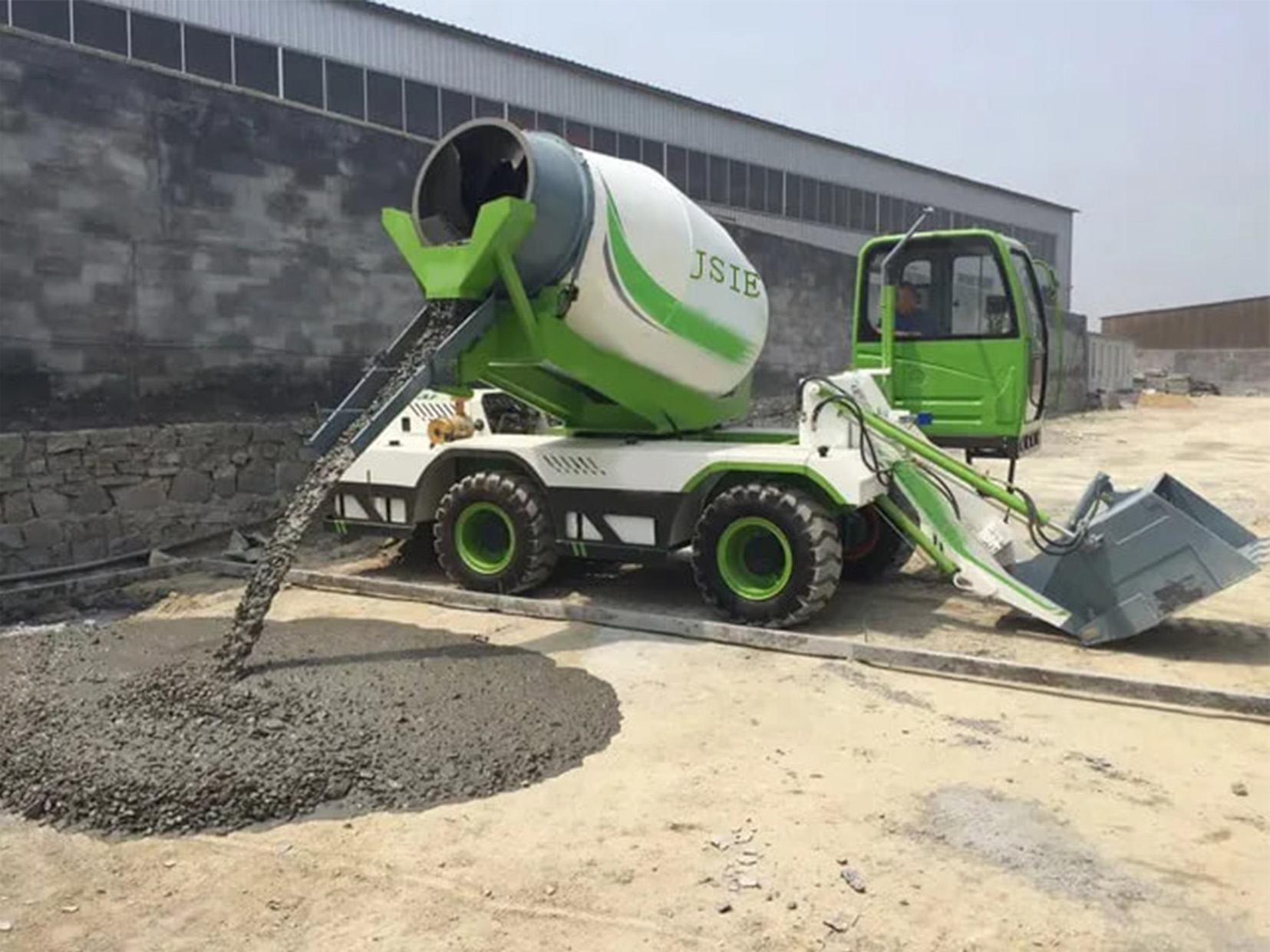

The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90,but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard
