JSIE5180TXQD6
Dongfeng
The Dongfeng Facade Cleaning Truck with High-Pressure Wall Cleaning System is designed for building exterior maintenance and specialized wall washing operations. Combining a commercial vehicle chassis, a large-capacity water tank, and vehicle-mounted cleaning equipment, it provides a mobile solution for cleaning exterior surfaces in commercial, industrial, and public environments.
Manufactured by Xiamen Justsun Intelligent Equipment Co., Ltd. under the JSIE brand, this facade cleaning truck is built on the Dongfeng DFH1180EX8 chassis with a 4×2 drive configuration. The listed tank volume is 8,500 liters, providing a substantial onboard water supply for cleaning operations. Its vehicle-mounted cleaning assembly, as shown in the product photos, includes an articulated working arm and a cleaning head for positioning the equipment near exterior wall surfaces.
For municipal service contractors, building maintenance companies, industrial facility operators, and professional cleaning equipment distributors, this truck offers a specialized platform for mobile facade cleaning.
The truck uses a Dongfeng DFH1180EX8 chassis with a 4×2 drive configuration. Its commercial vehicle platform provides the road mobility required to transport the water tank and wall-cleaning equipment between different work locations.
The current product specification lists a gross vehicle weight of 18,000 kg and an overall vehicle dimension of 9,750 × 2,500 × 4,000 mm.
The chassis configuration can be evaluated according to local road conditions, vehicle registration requirements, and the intended cleaning application.
The truck is listed with an 8,500L tank volume, allowing operators to carry a substantial water supply to the cleaning site.
An onboard water tank helps reduce dependence on continuous external water connections during mobile cleaning operations. The actual operating duration between refills depends on pump flow, working pressure, nozzle configuration, and cleaning procedures.
For buyers planning regular facade maintenance programs, tank capacity should be evaluated together with water consumption and the availability of refill points.

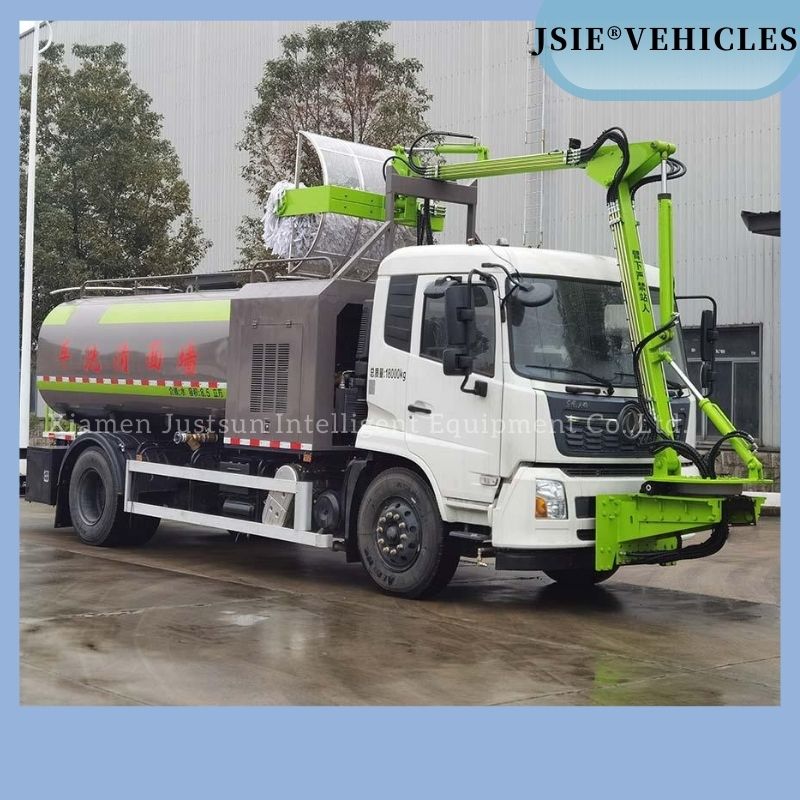

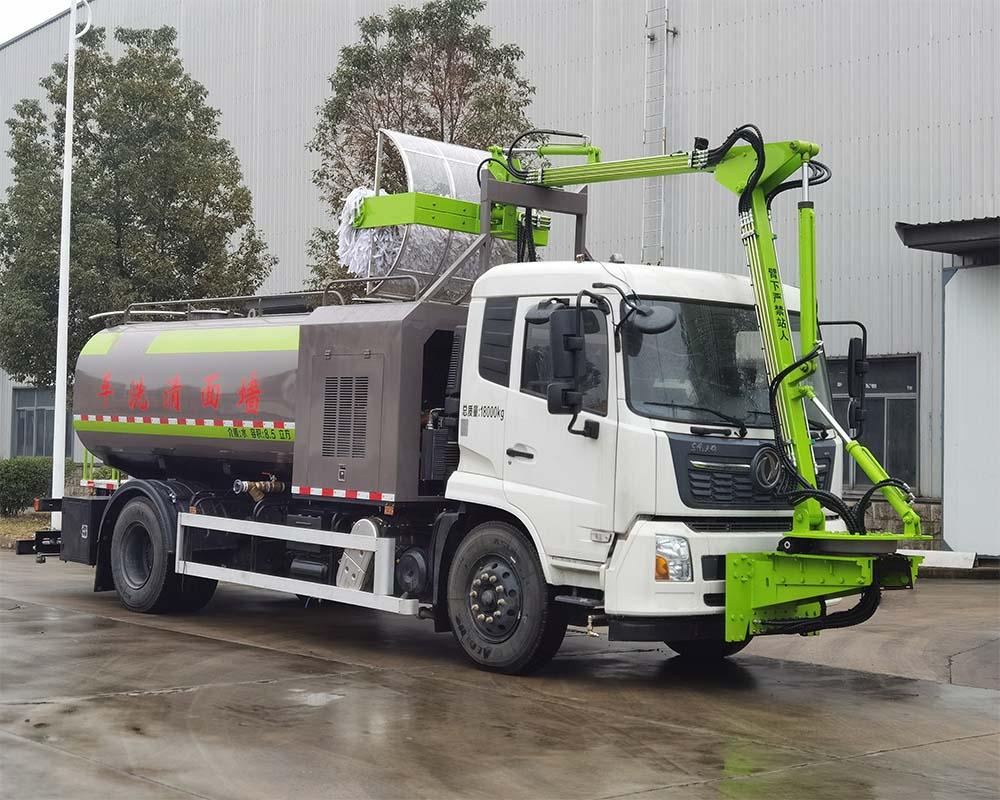

The product photos show a vehicle-mounted articulated cleaning arm and an exterior wall cleaning head.
This arrangement allows the cleaning equipment to be positioned near the target surface while the truck remains on the working ground.
The final cleaning head configuration, arm movement, operating height, working reach, and control system should be confirmed according to the selected equipment specification.
For projects involving different building heights or facade materials, these parameters should be evaluated before ordering.
The truck is designed around a high-pressure wall cleaning system for removing accumulated dirt, dust, and other surface contaminants.
The cleaning performance depends on several interconnected factors:
Water pump working pressure.
Water flow rate.
Nozzle or cleaning head configuration.
Distance between the cleaning head and wall surface.
Cleaning arm working position.
Surface material and contamination level.
Pressure and flow should be selected together rather than evaluating pressure alone. Excessive water pressure may damage certain facade coatings, sealants, or delicate surface materials.
Buyers should provide the target facade material and cleaning requirements when requesting a customized configuration.
Unlike a stationary pressure washer, a truck-mounted facade cleaning solution combines water storage, vehicle mobility, and specialized cleaning equipment in one platform.
It can be moved between commercial buildings, industrial facilities, public infrastructure, and other exterior maintenance locations.
This integrated configuration is particularly useful for contractors managing cleaning work across multiple sites.
The cleaning system is the most important part of a facade cleaning truck. Its configuration determines the surfaces that can be cleaned, the available working range, and the efficiency of daily operations.
For procurement planning, buyers should evaluate the following components.
The onboard tank provides the water supply for the cleaning operation.
For this JSIE model, the listed tank volume is 8,500L. The water supply arrangement should be coordinated with the selected pump and cleaning equipment to ensure suitable water delivery.
When evaluating the tank configuration, consider:
Tank usable capacity.
Water inlet and outlet arrangement.
Internal access for cleaning and inspection.
Drainage and maintenance requirements.
Water supply connection specifications.
The tank material and internal construction should be confirmed with the supplier before ordering.
The pump converts the supplied water into a pressurized flow for the cleaning equipment.
Two important performance specifications are maximum working pressure and flow rate.
Working pressure affects the force of the water jet, while flow rate determines the volume of water delivered over time. Both parameters influence cleaning performance and water consumption.
For facade cleaning projects, the pump should be selected according to the building material, contamination type, required cleaning distance, and nozzle design.
The pump model, rated pressure, rated flow, and power source should be included in the final technical quotation.
The vehicle-mounted working arm helps position the cleaning head relative to the target wall surface.
Its configuration should be evaluated according to:
Maximum horizontal reach.
Maximum vertical working height.
Arm extension and folding arrangement.
Rotation and positioning range.
Cleaning head dimensions.
Hydraulic or other drive and control arrangements.
The product images show an articulated cleaning assembly, but the detailed movement range and maximum operating height are not published in the current specification.
For multi-storey buildings, buyers should confirm the actual working envelope rather than estimating cleaning height from the vehicle's overall dimensions.
The water delivery system connects the tank and pump to the cleaning head.
Suitable hoses, pipes, fittings, and control components are important for stable operation and routine maintenance.
For projects requiring frequent movement between different cleaning positions, hose routing, connection accessibility, and equipment protection should also be considered.
The Dongfeng facade cleaning truck is intended for exterior wall maintenance in environments where mobile water supply and specialized cleaning equipment are required.
Office buildings, shopping centers, hotels, and commercial complexes require periodic exterior cleaning to remove dust, environmental deposits, and visible surface contamination.
A mobile facade cleaning truck can support maintenance contractors working across different commercial properties.
The cleaning arm and head should be selected according to the building's exterior design and the verified working reach.
Factories, workshops, distribution centers, and warehouses often have extensive exterior wall surfaces exposed to dust and industrial pollutants.
A vehicle-mounted cleaning system can support scheduled exterior maintenance and cleaning work around large industrial facilities.
The selected pressure and cleaning head should be compatible with the building's wall panels, coatings, and other surface materials.
Public buildings, transportation facilities, and municipal structures require regular exterior maintenance.
Municipal service providers can use specialized cleaning vehicles to support cleaning operations at public facilities and other accessible exterior surfaces.
The truck's onboard water supply is particularly useful at locations where convenient water connections are limited.
Residential buildings and apartment complexes also require periodic cleaning of exterior walls and common building surfaces.
Cleaning contractors can evaluate the vehicle according to building access, surrounding space, surface materials, and local operating restrictions.
For taller residential buildings, the available cleaning height and any additional access equipment must be verified before the project begins.
Property maintenance companies and specialized cleaning contractors may operate across several locations within one service area.
A truck-mounted system allows the water supply and cleaning equipment to move together, helping contractors organize different exterior maintenance jobs using one dedicated vehicle.
The following specifications are taken from the current JSIE product listing. Some values are presented as configuration alternatives and should be confirmed for the selected vehicle.
| Specification | Details |
|---|---|
| Product Model | JSIE5180TXQD6 |
| Vehicle Type | Facade Cleaning Truck / Wall Washing Truck |
| Chassis Brand | Dongfeng |
| Chassis Model | DFH1180EX8 |
| Drive Configuration | 4×2 |
| Fuel Type | Diesel |
| Transmission | Manual |
| Emission Standard | Euro III |
| Listed Tank Volume | 8,500L |
| Overall Dimensions | 9,750 × 2,500 × 4,000 mm |
| Gross Vehicle Weight | 18,000 kg |
| Curb Weight | 9,300 kg |
| Rated Payload | 8,505 / 8,570 kg, subject to configuration confirmation |
| Maximum Speed | 89 / 98 km/h, subject to configuration confirmation |
| Cab Capacity | 2 / 3 persons |
| ABS | Equipped |
| Approach / Departure Angle | 17° / 10° |
| Warranty | 6-month spare parts warranty |
The high-pressure pump model, working pressure, flow rate, maximum cleaning height, and cleaning arm reach are not specified in the current listing. Please confirm these technical details with our team according to your project requirements.
Different building maintenance projects have different equipment requirements. The truck configuration should therefore be evaluated according to the target working environment and cleaning tasks.
Buyers can discuss the suitable chassis configuration according to local operating requirements, including:
Chassis brand and model.
4×2 drive configuration.
Cab capacity.
Transmission arrangement.
Emission requirements.
Overall vehicle dimensions.
The final chassis selection must comply with the vehicle registration and road regulations of the destination market.
The tank volume and water supply arrangement should be selected according to expected water consumption and operating conditions.
Buyers should confirm the required usable water capacity, tank material, inlet and outlet positions, and maintenance access.
The cleaning system should match the actual facade cleaning requirements.
Important considerations include:
High-pressure pump specifications.
Working pressure and water flow.
Cleaning arm reach and operating height.
Cleaning head type.
Water hose and pipe arrangement.
Equipment control method.
These details should be agreed upon before production to ensure that the final equipment matches the intended application.
Different countries may have different requirements for vehicle emissions, dimensions, axle loads, lighting, safety equipment, and registration.
Before placing an order, buyers should provide the destination country and intended operating environment so the vehicle configuration can be reviewed accordingly.
