C014312N001E001
Aumark

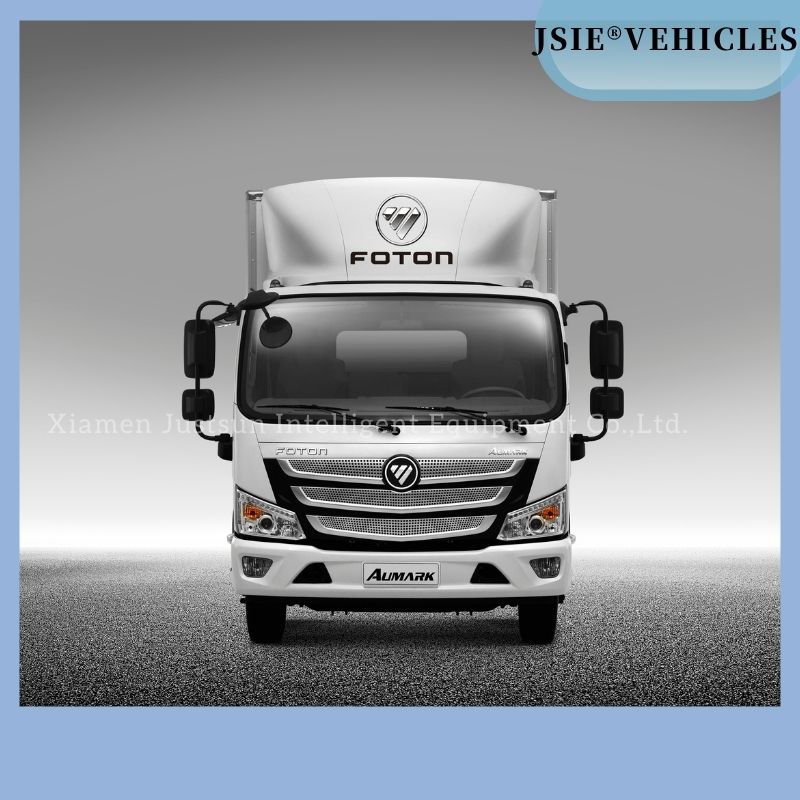

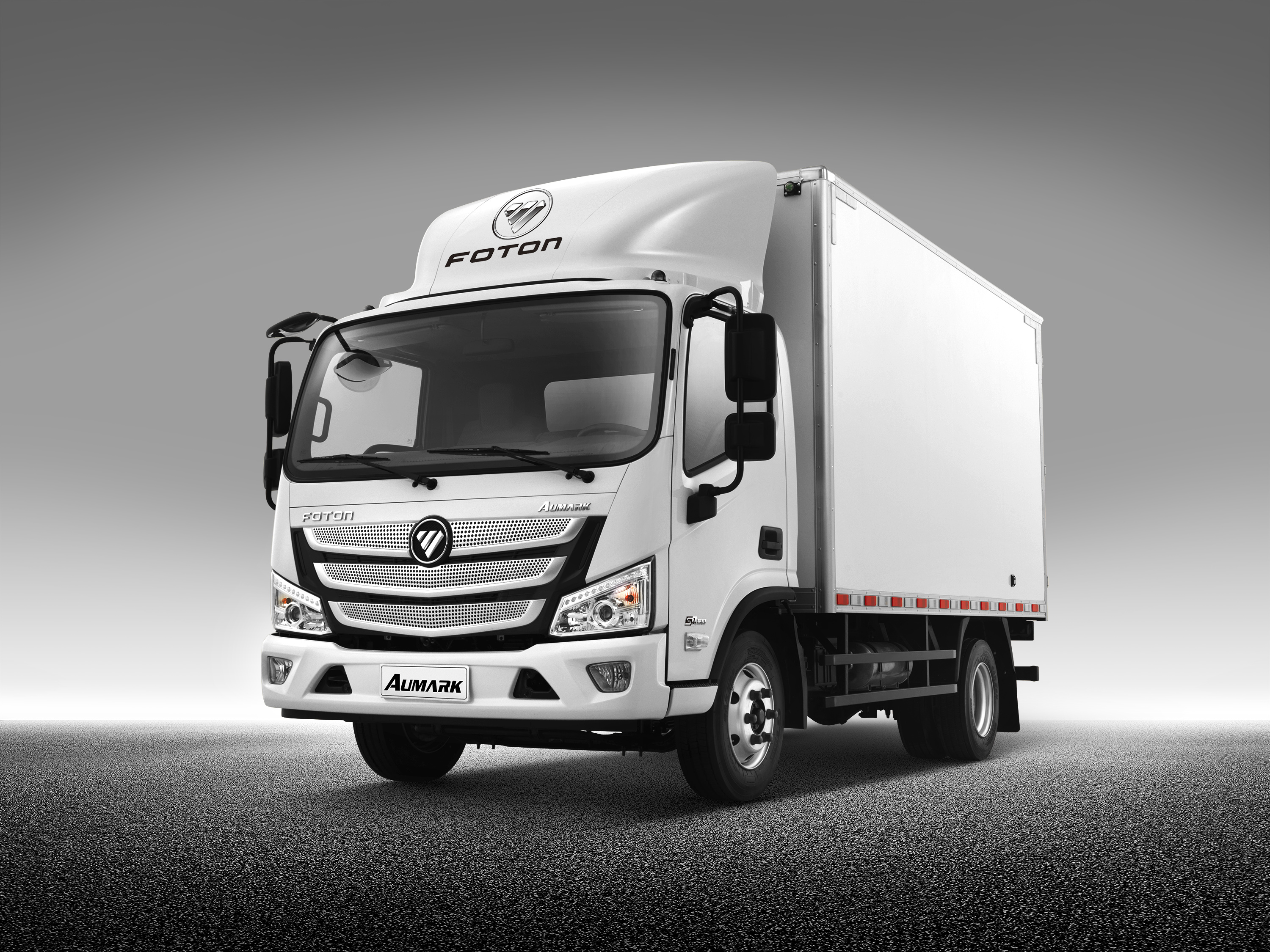

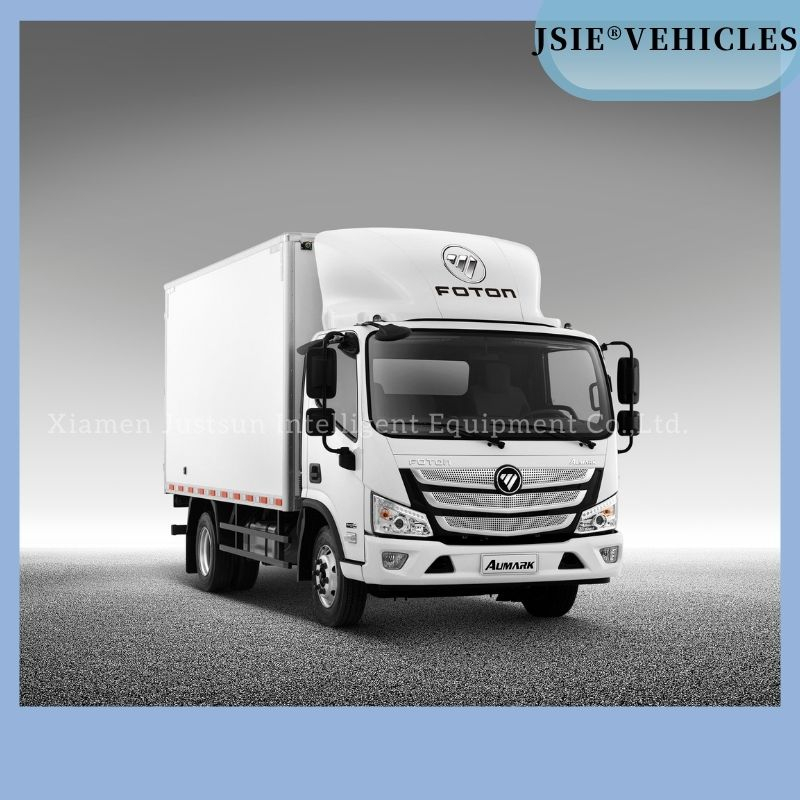

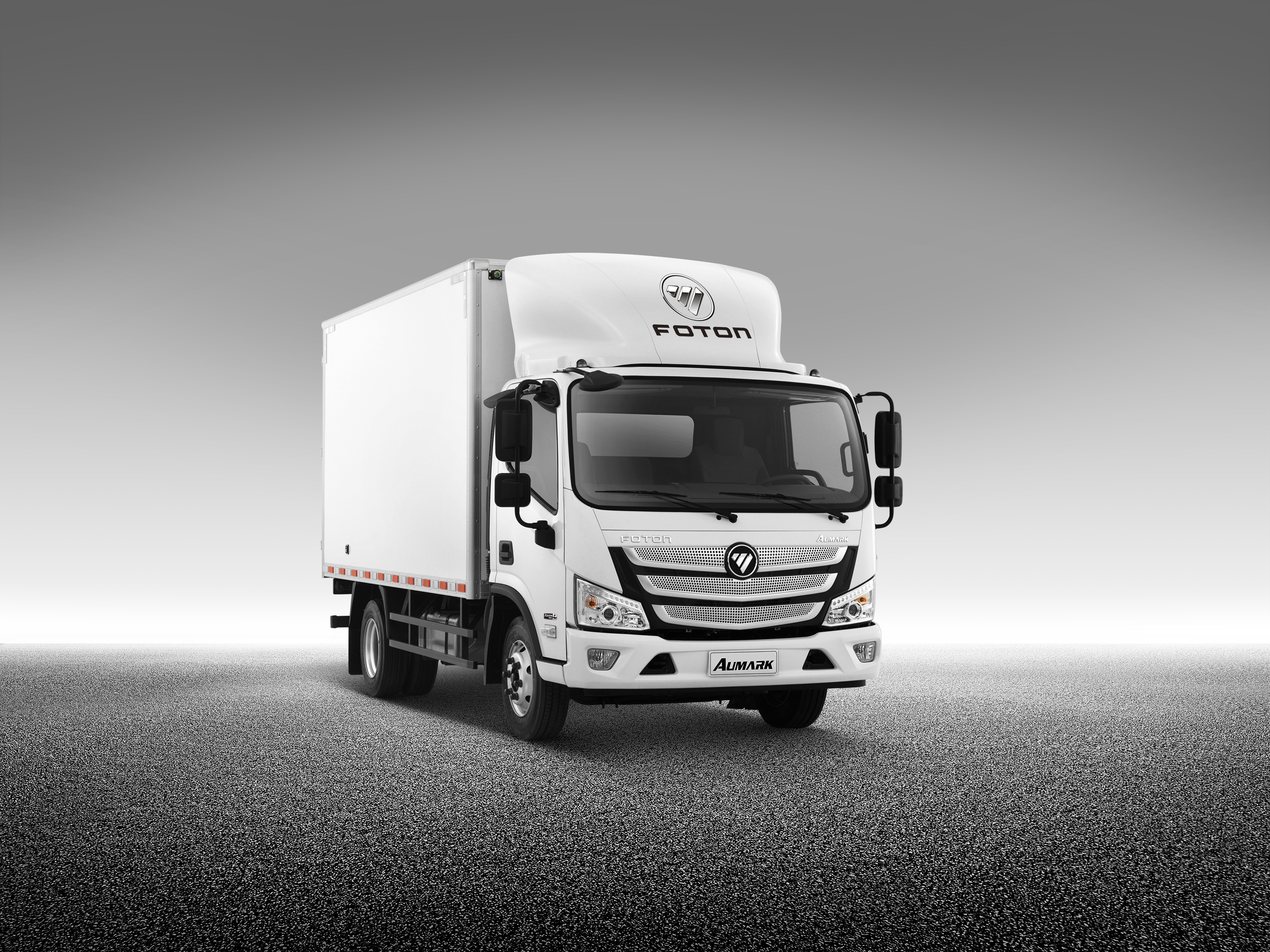

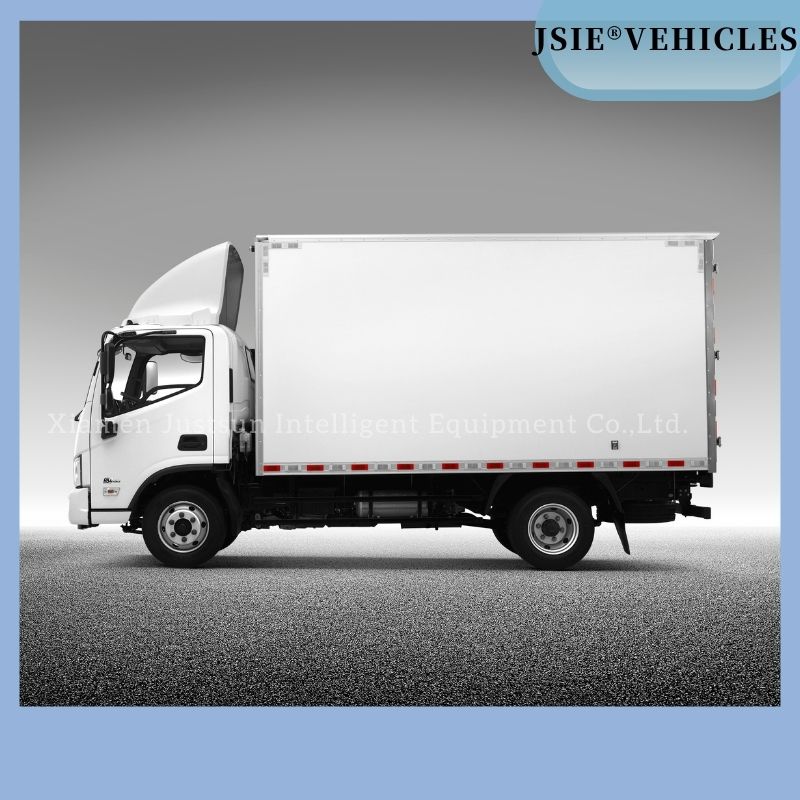

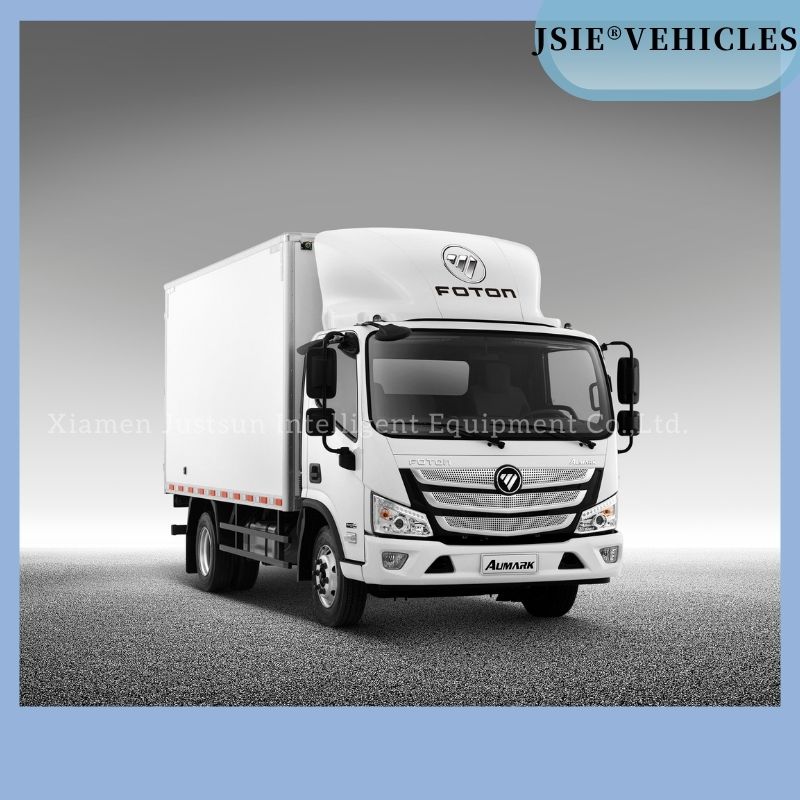

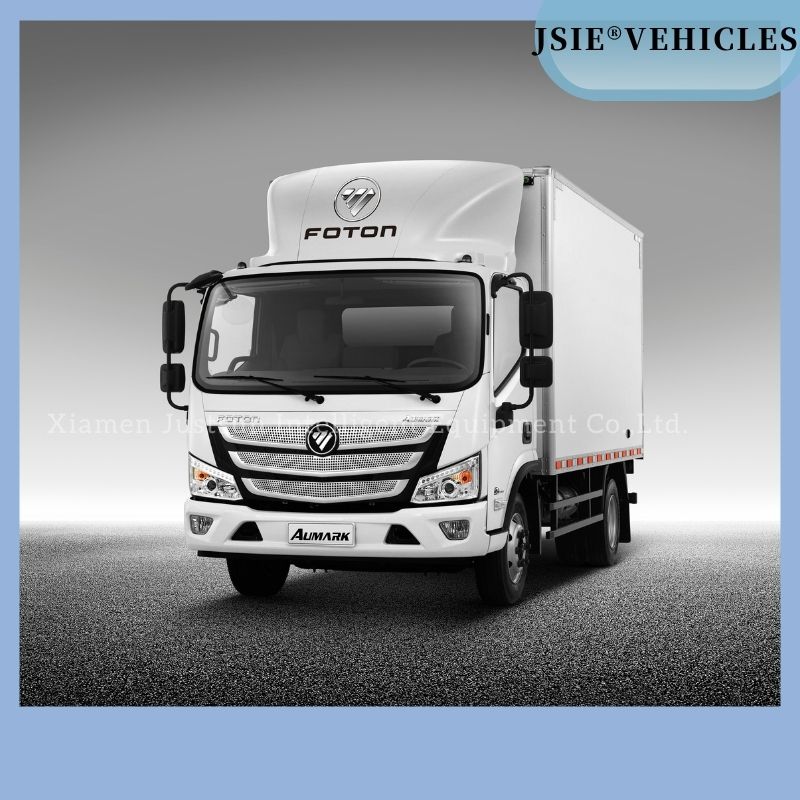

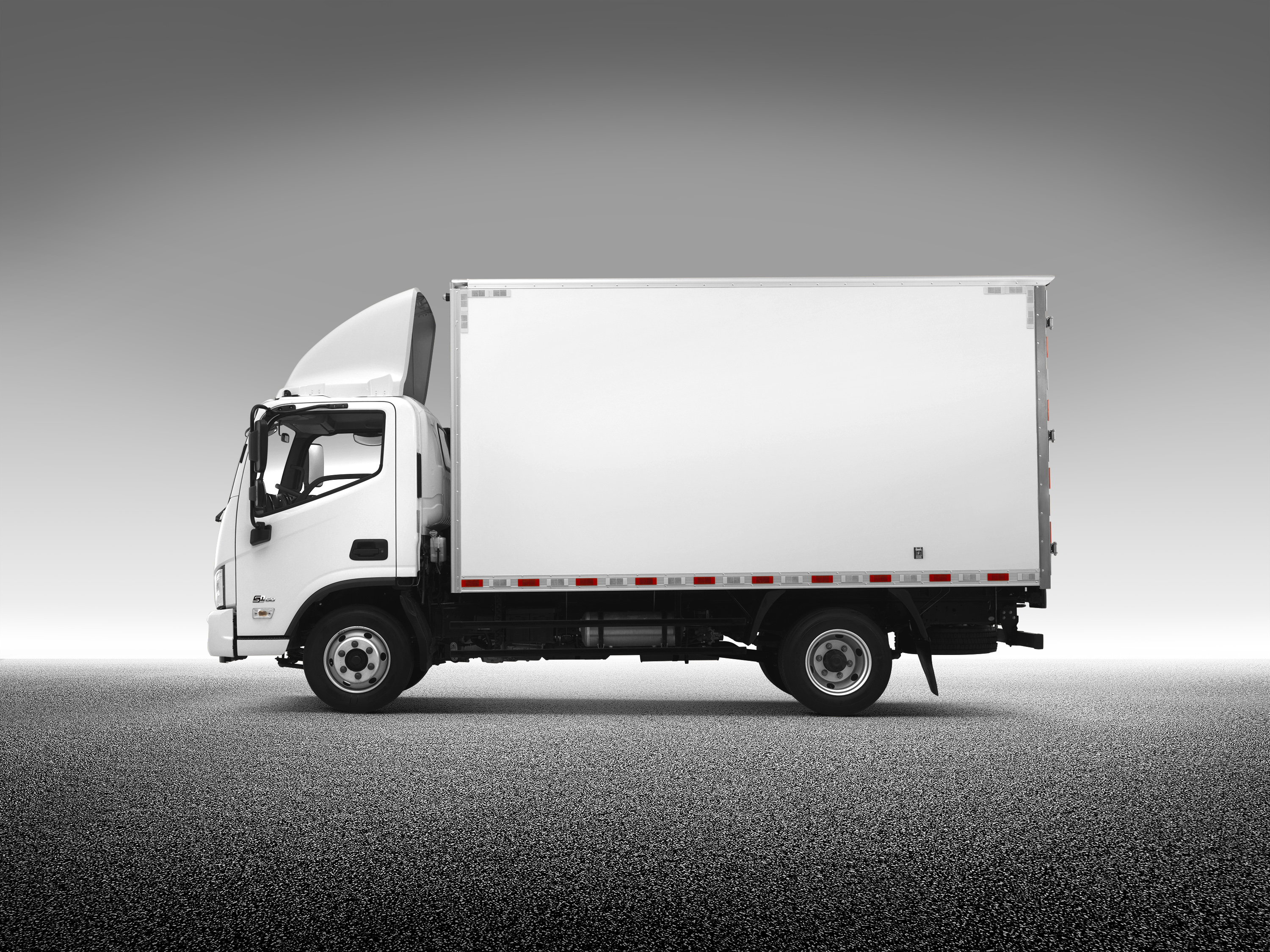

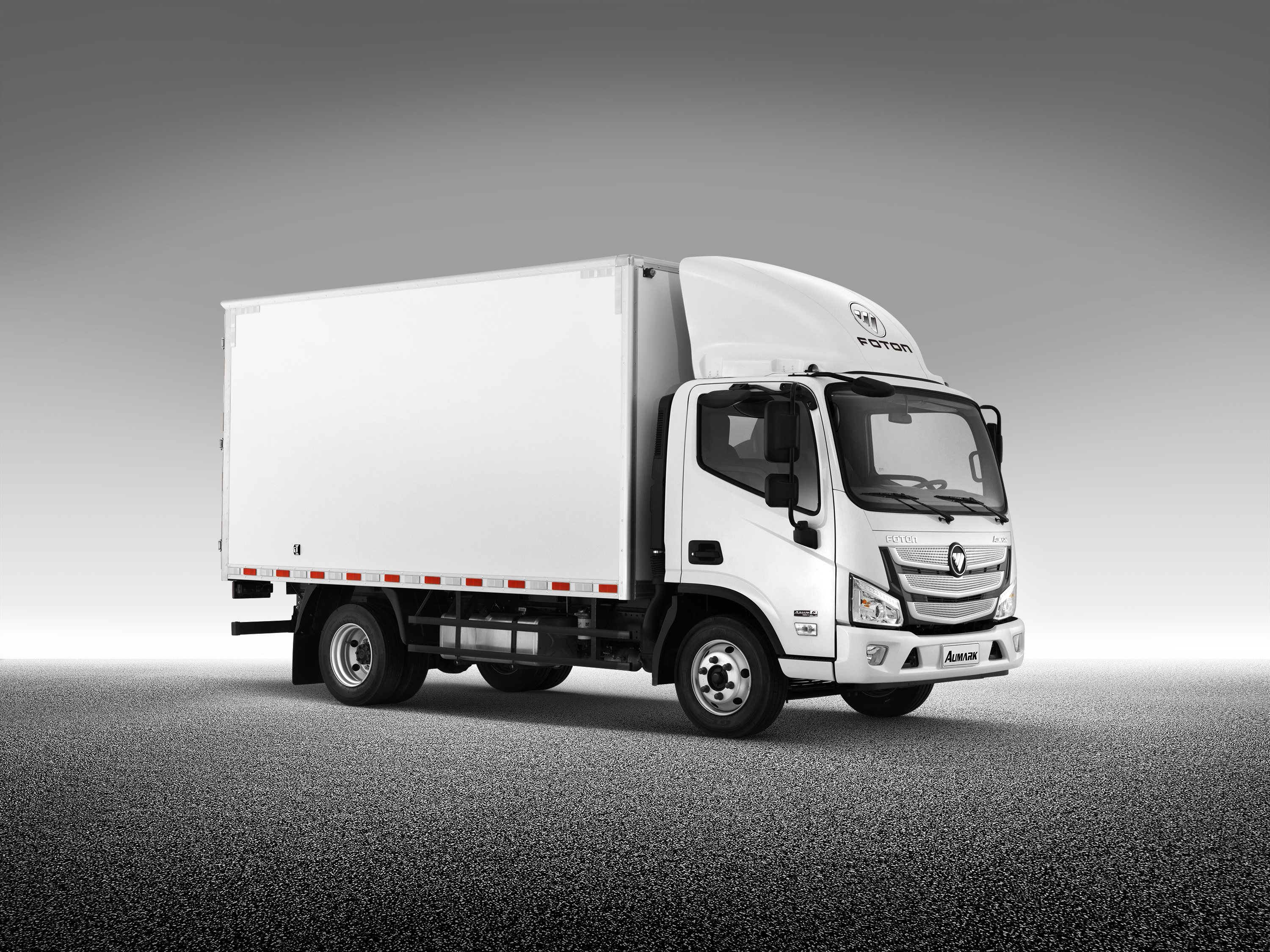

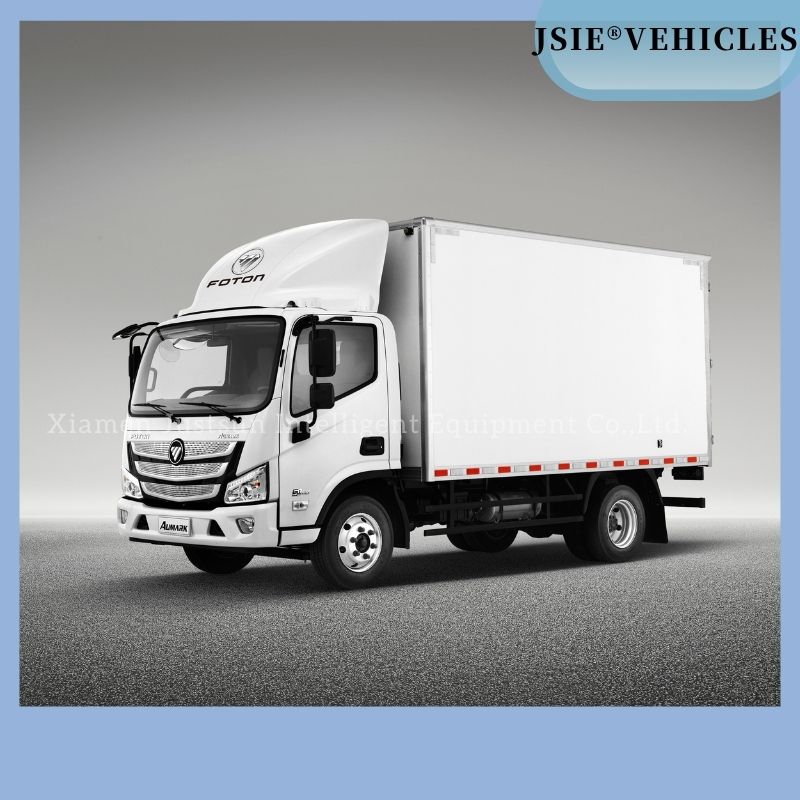

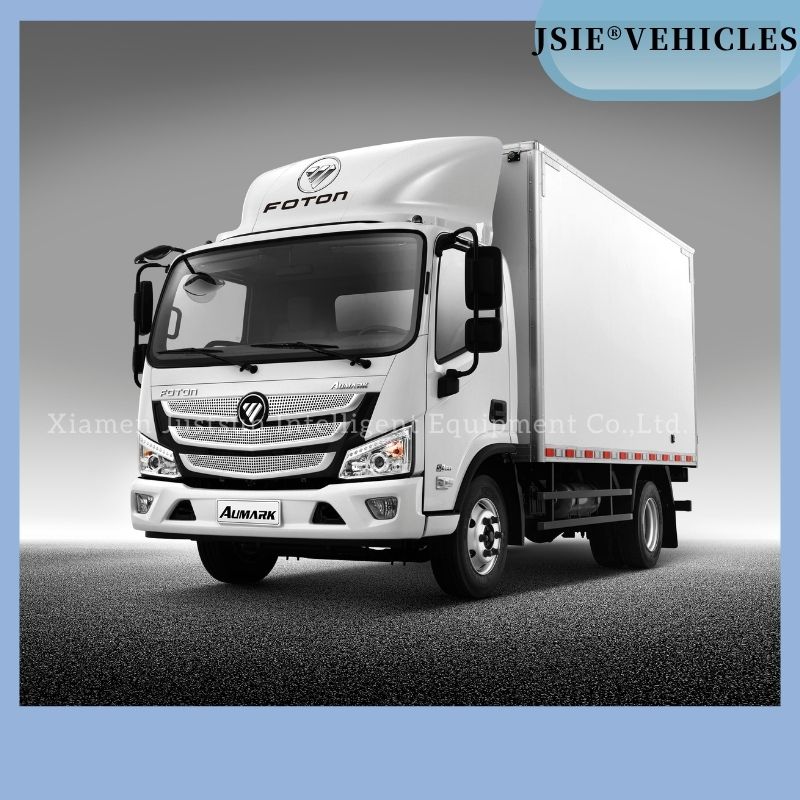

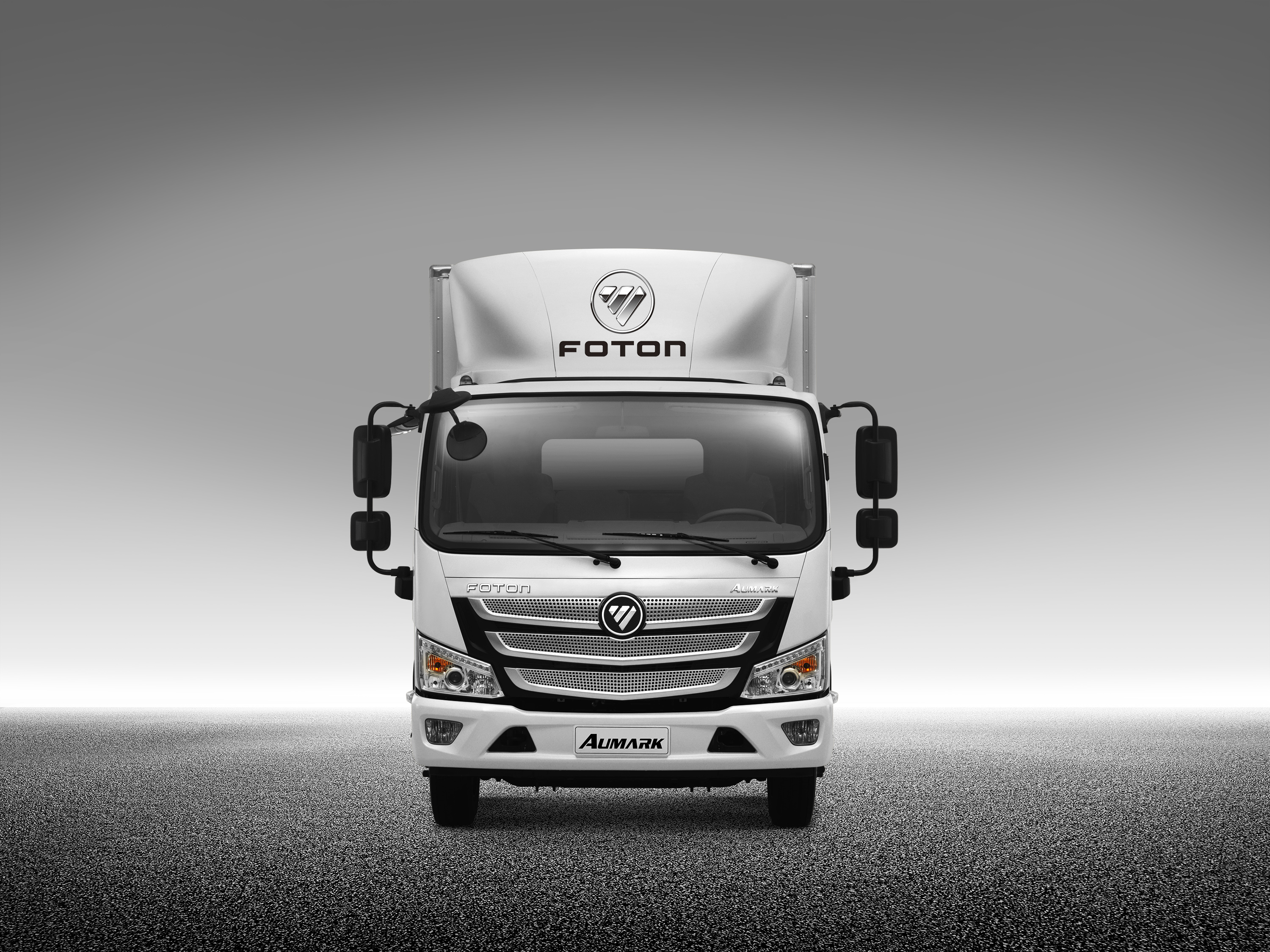

The Foton Aumark 4×2 6t Light Duty Truck combines reliable Euro 5 diesel technology with a rugged chassis cargo truck design, delivering outstanding performance for urban and regional logistics. Built for a 6-ton payload capacity, this 4x2 light duty truck offers excellent fuel efficiency, low emissions, and superior durability. Whether you need a diesel cargo truck for last-mile delivery or medium-distance haulage, the Foton Aumark chassis provides a versatile and cost-effective solution.
Euro 5 Diesel Engine – Cleaner emissions, higher torque, and compliance with strict environmental standards.
4×2 Drive Configuration – Optimized for on-road stability and maneuverability in city traffic.
6 Tonnes GVW – Ideal for medium-duty applications, carrying heavy loads without overloading.
Durable Chassis Design – Reinforced frame and cargo body mounting points for long-lasting service.
Light Duty Agility – Easy handling, tight turning radius, and driver-friendly cab layout.
Cargo Truck Versatility – Suitable for box bodies, flatbeds, reefers, or specialized equipment.
Cost-Effective Operations – Low fuel consumption and easy maintenance.
Euro 5 Compliance – Future-proof for low-emission zones.
Strong Resale Value – Widely recognized brand and robust chassis.
Customizable – Multiple cargo body options: van, open deck, refrigerated, etc.
Global Support – Extensive spare parts network and service centers.
Urban distribution and courier services
Food and beverage delivery
Construction material transport
Light industrial goods logistics
Municipal service vehicles (garbage, street sweeper, etc.)
1. What is the payload capacity of the Foton Aumark 4×2 6t Light Duty Truck?
The chassis is rated for a gross vehicle weight of 6 tonnes. Depending on the body type and configuration, the net payload is approximately 3.0–3.5 tonnes.
2. Is the Euro 5 diesel engine reliable for long-distance driving?
Yes. The Euro 5 diesel engine is designed for both stop-and-go city traffic and steady highway cruising, with proven durability and low thermal stress.
3. Can I mount a refrigerated cargo body on this chassis truck?
Absolutely. The Foton Aumark chassis is pre-drilled and reinforced for reefer units. Please consult with your body builder for PTO and alternator upgrades.
4. What is the fuel consumption of the 4×2 light duty truck?
Under mixed driving conditions, expect around 10–12 L/100 km. Actual consumption varies with load, driving style, and terrain.
5. Does the truck come with air conditioning and power steering?
Yes, the standard cab includes power steering. Air conditioning is standard in most markets; check with your local dealer for specific trim levels.
6. Can I order the truck without the cargo body (bare chassis only)?
Yes. The product is sold as a chassis cargo truck – meaning the chassis with cab, ready for mounting your own body. Bare chassis (no cargo body) is also available.
7. Is the Euro 5 engine compatible with biodiesel or HVO?
The engine can run on B7 or B10 biodiesel blends. For HVO (hydrogenated vegetable oil), consult the owner’s manual or local distributor.
8. How often does the Foton Aumark require maintenance?
Regular service intervals are every 10,000 km or 6 months, whichever comes first. This includes oil changes, filter replacements, and brake inspections.
9. Are spare parts for the 4×2 light duty truck available globally?
Yes. Foton has a worldwide dealer network. Commonly used parts (filters, brake pads, clutch kits) are stocked in regional warehouses for fast delivery.
Product Name | M4 |
Vehicle No. | C014312N001E001 |
Brand | Aumarks |
Balance Unit Capacity | 9T |
Engine | ISF3.8 |
Gearbox | ZF6S558 |
Drive Type | 4X2 |
Wheelbase | 3360 |
Overall Dimension (Chassis) | 5960×2300×2335 mm |
Cargo Box Dimension | / |
GVW (kg) | 9000 |
Body Width (mm) | 2060 |
Truck Body | Aumark |
Left/Right Hand Drive | Left Hand Drive |
Cab Configuration | single cab |
Number of Seats (passenger capacity) | 3 |
Fuel Type | Diesel |
Engine Model | ISF3.8s5154 |
Engine Manufacture | Foton Cummins engine |
Displacement (ml) | 3760 |
Emission Standard | Euro |
Emission Route | SCR |
Power / Speed (HP) kw/ps (r/min) | 115kW(154Ps) |
Engine Torque (Nm/rpm) | 500N.m |
Transmission Model | ZF6S558 |
Transmission Manufacture | ZF |
Front Axle Capacity | 3.6T |
Middle/Rear Axle Capacity | 6T |
Drive Axle Ratio | 4.778 |
Brake Type | Air brake |
Brake Form | front disc, rear drum |
Brake Control System | EBS+ESC |
Tire Model | Tubeless tire (metric) L235/75R17.5-14PR-MT |
Number of Tires | 6+1 |
Fuel Tank Capacity | 200L |
Suspension Type | Front and rear leaf spring suspension |
Leaf Spring Count | 3/8+6 |
Frame Section (mm) | 220*70*6 |
