How To Adjust Semi Trailer Brakes​?

Unadjusted brakes consistently rank as a top reason for failing roadside DOT inspections. You risk severe out-of-service violations and serious fleet safety hazards when your braking system falls out of sync. It takes only a fraction of an inch of excess travel to trigger a violation. Misdiagnosing brake issues masks deeper mechanical failures. Improperly adjusting modern hardware accelerates part wear and increases legal liability. We often see operators attempting quick roadside fixes instead of addressing actual root causes. This comprehensive guide provides a definitive framework for evaluating, measuring, and executing brake adjustments on a Semi Trailer. It ensures strict adherence to CVSA regulations and helps prevent costly downtime. You will learn exact measurement techniques, proper system identification, and safe adjustment protocols.

Key Takeaways

• Never manually adjust automatic slack adjusters (ASAs): Doing so accelerates hardware wear and obscures underlying issues like worn cam bushings.

• Know your DOT/CVSA limits: Maximum allowable push rod stroke is strictly regulated (typically under 2 inches for standard chambers).

• Solo diagnostics are possible: Drivers can accurately measure push rod travel independently using simple tool-assisted pedal depression techniques.

• Evaluate before adjusting: Severe wear (e.g., brake shoe thickness below 1/16 inch) requires immediate component replacement, not adjustment.

Assessing System Health & DOT Compliance Criteria

Failing a roadside DOT inspection brings immediate operational headaches. Inspectors rigorously target out-of-adjustment brakes during routine stops. If they discover non-compliant push rod strokes, they place your rig out of service. You face hefty fines, delayed deliveries, and negative impacts on your safety scores. The financial risks of non-compliance far outweigh the minimal time required for proper daily inspections.

You must understand Commercial Vehicle Safety Alliance (CVSA) standards completely. Inspectors measure push rod stroke to determine legal compliance. They look at the distance the push rod travels outward from the brake chamber. If it travels too far, your brakes cannot apply full stopping force. We use specific thresholds based on the brake chamber design.

CVSA Push Rod Stroke Standards Summary Chart

Inspectors rely heavily on these exact limits. Even a quarter-inch over the limit constitutes a critical failure. Proper maintenance aims for an ideal free play sitting comfortably between 0.25 and 0.75 inches. This baseline guarantees maximum clamping force without causing dangerous brake drag.

You should also master the 90-Degree Rule. This serves as a vital visual verification method. When you fully apply the brakes, observe the slack adjuster and the push rod. They must form a perfect 90-degree angle. This right angle ensures the system transfers maximum mechanical leverage to the S-cam. If the angle pushes past 90 degrees, braking efficiency drops sharply. You lose stopping power fast.

Identifying Your Hardware: Manual vs. Automatic Slack Adjusters

System evaluation represents the most critical decision stage. Do not touch a wrench until you identify your hardware. Mixing up manual and automatic systems causes severe mechanical damage.

Older fleets or highly specialized rigs often utilize manual slack adjusters. These older systems require routine physical adjustments. Drivers historically crawled under the chassis weekly to tighten them. Manual units feature an exposed adjusting bolt. You must physically turn this bolt to compensate for brake shoe wear.

Modern air brake systems almost exclusively use Automatic Slack Adjusters (ASAs). They function differently. ASAs utilize an internal ratcheting mechanism. Every time you firmly apply the brakes, they measure the stroke. If the stroke exceeds a set threshold, the internal gears micro-adjust automatically. They keep the push rod travel within legal limits.

Warning: Common Mistake to Avoid

ASAs feature prominent "Do Not Manually Adjust" warnings. You must strictly obey them. Many drivers attempt to tighten an ASA manually using a wrench. This action forces the internal ratcheting mechanism past its design limits. It strips the delicate internal gears. Furthermore, manual intervention hides dangerous foundational brake issues. If an ASA fails to keep adjustment, it usually indicates worn cam bushings, weak return springs, or a failing foundation brake. Forcing it manually masks these critical hazards.

Step-by-Step Execution: How to Adjust Semi Trailer Brakes

Proper execution demands strict safety protocols. Rushing the process invites severe injuries. Always follow safety prerequisites before starting.

1. Park your rig on a hard, flat, and level surface.

2. Chock the wheels securely in both directions.

3. Release the trailer brakes completely.

4. Set the tractor parking brakes to hold the combination unit in place.

5. Ensure the air system maintains full operating pressure.

Resetting Automatic Slack Adjusters (Air Brake Systems)

You cannot manually tighten ASAs, but you can force a pneumatic reset. If your ASAs seem slightly loose, use the pneumatic trigger method. This forces the system to self-adjust to optimal clearance.

First, run the engine to build system pressure to between 100 and 120 psi. The system needs full air pressure to actuate the internal ratcheting mechanism. Next, apply full pressure to the brake pedal. Press it down firmly and hold it for a full 5 seconds. Release the pedal quickly. Wait a few moments, then repeat this process up to six times. This full-pressure application forces the ASA to click forward. It self-adjusts to the correct push rod stroke automatically.

Adjusting Manual Slack Adjusters

If you verified you have older manual slack adjusters, proceed with physical adjustment. You need a standard box wrench or a specialized slack adjuster tool.

Locate the adjusting mechanism on the slack adjuster body. Turn the bolt clockwise. Keep turning until the brake linings firmly contact the brake drum. You will feel tight resistance. The wheel will not spin at this point. Next, you must back off the adjuster counter-clockwise. Turn it back by 1/2 to 3/4 of a turn. This specific back-off distance depends on your load sensitivity requirements. Heavy, shifting loads sometimes require a tighter 1/2 turn tolerance. Verify the wheel spins freely without heavy drag after adjusting.

Adjusting Electric Trailer Brakes

Specialized or light-commercial trailers often utilize electric brakes. These require a completely different approach. They do not use air pressure or external slack adjusters.

First, safely jack up the axle and support the trailer with heavy-duty jack stands. Never rely solely on a hydraulic jack. Locate the backing plate port behind the wheel. It usually features an elongated rubber dust plug. Remove the plug. Insert a brake spoon or a flathead screwdriver. Locate the internal star wheel adjuster. Tighten the star wheel by prying it. Continue tightening until you feel heavy drag when spinning the tire by hand. Once locked tight, back off the star wheel by 8 to 10 clicks. The drum should now spin freely. You should only feel slight, intermittent resistance from the magnets brushing the armature surface.

Solo-Driver Diagnostic Techniques for Field Verification

Validating brake response alone poses a major challenge. The solo-driver problem forces you to get creative safely. You cannot press the brake pedal in the cab and check the rear axles simultaneously without help. However, you can employ proven solo diagnostic techniques.

• Tool-Assisted Pedal Depression: You need an object to hold the pedal down. Cut a piece of 2x4 block or use a sturdy pallet board. Wedge it tightly between the brake pedal and the steering column or seat. Alternatively, use a heavy-duty bungee cord to hold the trailer hand valve fully open. This keeps the brakes applied while you inspect the axles.

• Push Rod Marking Method: This remains the most accurate solo test. Crawl under the rig with the brakes released. Use a piece of chalk or a soapstone marker. Mark the push rod exactly where it exits the brake chamber body. Next, apply the brakes fully using the tool-assisted method. Crawl back under. Measure the exact distance from the chamber body to your chalk mark. Compare this travel distance directly against official DOT thresholds.

• Sensory Diagnostics (Auditory & Visual): Use a hammer tap test on the brake drums. Tap the side of the drum lightly with a small hammer. Listen closely to the resulting sound. A "dead thunk" indicates the shoes are pressing tightly against the drum. They are engaged properly. A "clear ring" sounds like a bell. This indicates the shoes have released, and the drum is free. Use this auditory feedback to confirm engagement when you cannot see the internal components clearly.

•


Heavy-Duty Applications: Weight Distribution & Replacement Logic

Extreme payloads severely impact braking dynamics. Heavy hauling magnifies every minor adjustment error. You must adapt your maintenance schedule to match your payload stresses.

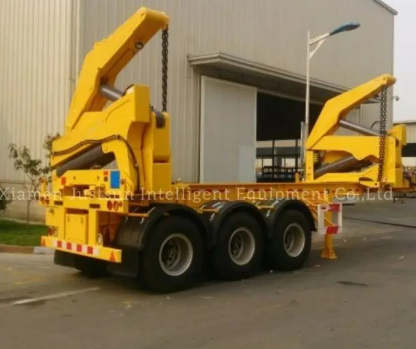

Consider variable load dynamics. Hauling standard dry freight differs greatly from hauling oversized equipment. For example, operating a Semi Trailer with Crane attachments drastically alters the center of gravity. The heavy steel booms and hydraulic counterweights change the axle weight distribution dynamically during transit. This concentrated mass demands tighter braking tolerances. You must perform stroke checks more frequently. The intense kinetic energy generated by top-heavy loads requires perfectly synchronized braking across all axles. If one axle lags due to poor adjustment, the rig can easily jackknife.

Adjustment vs. Replacement Thresholds

You must recognize when to stop adjusting and start replacing parts. Brakes do not last forever. Continuous adjustments eventually hit mechanical limits. We use specific failure thresholds to determine when a foundation brake rebuild becomes mandatory.

Shortlist professional services before emergencies happen. Field adjustments only solve minor wear issues. You must escalate to professional fleet maintenance when you detect structural wear. Full foundation brake rebuilds require shop tools. Replacing worn S-cams, pressing new bushings, or upgrading to proportional brake controllers fall outside roadside DIY scope. Schedule regular shop evaluations. Professional mechanics catch the subtle wear patterns drivers miss during pre-trip inspections.

Conclusion

Proper brake adjustment remains a non-negotiable aspect of operating a commercial rig safely and legally. Ignoring push rod limits directly endangers your fleet, the public, and your bottom line. You must differentiate between manual adjustments and automatic system resets. Misunderstanding this basic hardware concept destroys expensive components rapidly.

Actionable Next Steps:

• Verify your specific slack adjuster type today before your next haul.

• Obtain chalk and a measuring tape. Mark and measure your push rods before your next dispatch.

• Schedule a professional shop evaluation immediately if your automatic adjusters fail to hold tension after a pneumatic reset.

• Keep a copy of CVSA stroke limits inside your cab for quick roadside reference.

FAQ

Q: Can I manually adjust an automatic slack adjuster in an emergency?

A: You should only do this to move the truck to a safe location or a nearby shop. It serves strictly as a temporary bypass. Manual forcing strips the internal gears and damages the unit permanently. It requires immediate professional replacement afterward. Never use manual adjustment as a long-term fix for an ASA.

Q: How much push rod travel is legally acceptable on a semi trailer?

A: CVSA guidelines strictly regulate this measurement based on chamber type. Travel must stay under 2 inches for standard short-stroke chambers (round ports). It must stay under 2.5 inches for long-stroke chambers (square ports). Anything exceeding these exact limits results in an immediate out-of-service violation.

Q: How often should I check my trailer brake adjustment?

A: You must perform visual and auditory checks daily during your pre-trip inspection. However, you should strictly measure the push rod stroke with chalk every 3,000 miles. You should also measure it immediately prior to hooking up to heavy-duty or oversized hauling applications.
