JSIE5100GXFSG40/06
JSIE
Whole Vehicle Parameters | |
Overall Dimension(mm) | 7025*2300*3050 |
Max Speed(km/h) | 100 |
GVW(kg) | 10200 |
Loading Capacity (L) | Water: 3750 |
Cab | 3+3 (LHD) |

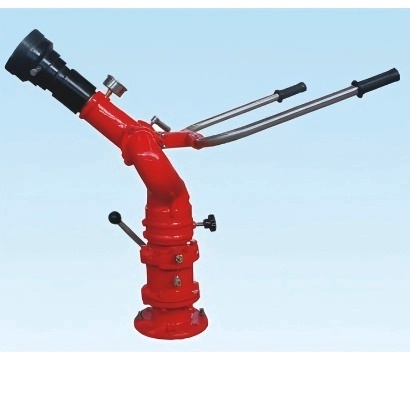

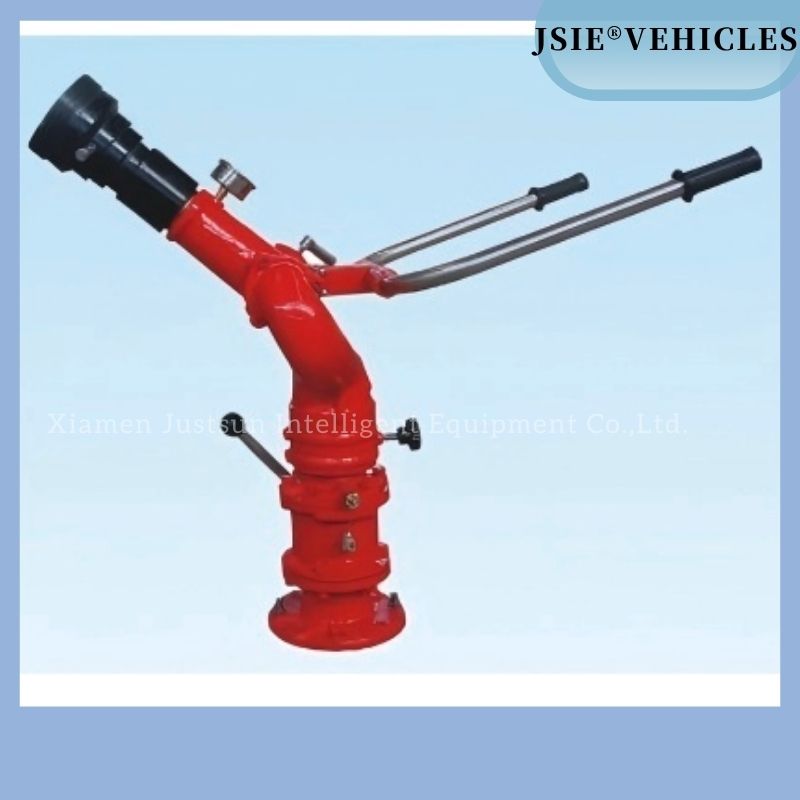

Fire Monitor Range (m) | ≥65m |
Approach / Departure Angle(°) | 17 / 12 |
Chassis Main Parameters | |
Model | QL1110ANKAY |
Manufacturer | Qingling Motors Co., Ltd. |
Engine Model | 4HK1-TCG60 |
Rated Engine Power | 151kw |
Engine Displacement | 5193ml |
Emission Standard | National VI |
Driving Type | 4X2 |
Wheelbase | 3815mm |
Max Permissible Gross Weight | 10550kg |
Min Turning Radius | ≤19m |

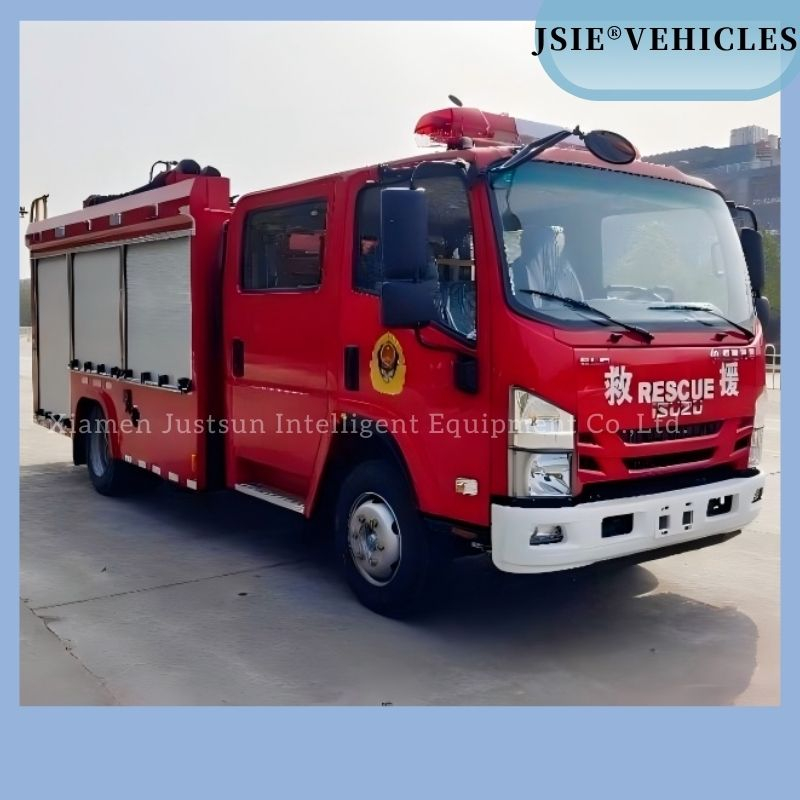

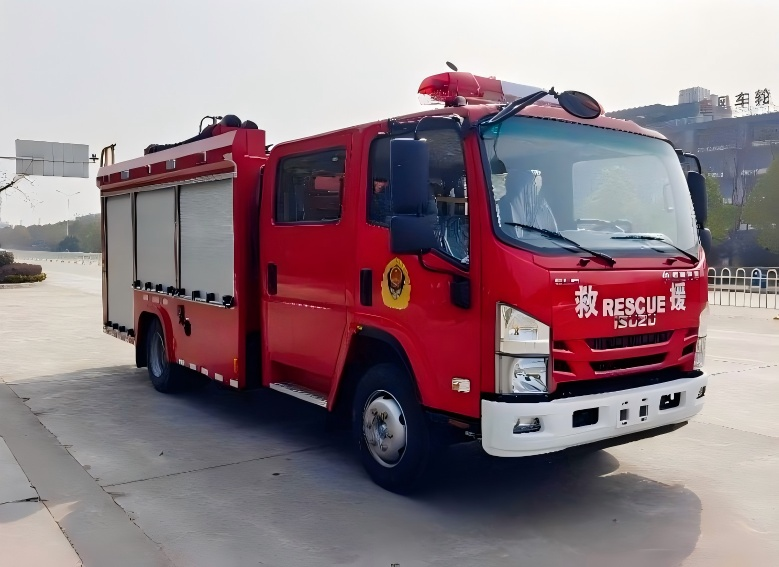

The Isuzu 4X2 Water Tank Fire Truck is a high-performance and reliable fire-fighting vehicle manufactured by Xiamen Justsun Intelligent Equipment Co., Ltd., a leading company in China's commercial vehicle industry since 2018. Adhering to the business philosophy of "integrity management and win-win cooperation", the company ensures that this fire truck meets the highest standards of quality and performance.
This new fire truck, with the product trademark JSIE and origin from China, is designed to tackle various fire emergencies efficiently. It comes with a 6-month warranty of spare parts, providing customers with added peace of mind. The model JSIE5100GXFSG40/06 is equipped with advanced features to ensure optimal performance in critical situations. With a load capacity of 1-10t and a water tank capacity of 3750L, it is well-suited for a wide range of fire-fighting missions.
The Isuzu 4X2 Water Tank Fire Truck is powered by a diesel engine with a horsepower range of 150-250hp, ensuring strong and consistent power output. Its manual transmission allows for precise control, while the 4×2 drive wheel configuration ensures good maneuverability. Meeting the National VI emission standard, this fire truck is not only powerful but also environmentally friendly.
· Transmission Type: The manual transmission ensures smooth and precise gear shifting, allowing drivers to adapt to different road conditions and fire-fighting scenarios with ease.
· Power Source: Equipped with a diesel engine, this fire truck delivers strong power with a horsepower range of 150-250hp, ensuring efficient operation even in demanding situations.
· Emission Standard: Complies with the National VI emission standard, making it environmentally friendly and suitable for use in areas with strict emission regulations.
· Drive Wheel: The 4×2 drive wheel configuration provides good traction and maneuverability, enabling the vehicle to navigate through narrow streets and complex terrains.
· Tire Design: Radial tires offer excellent durability, stability, and grip, ensuring safe driving on various road surfaces.
· Seats: With 6-9 seats, the fire truck can carry a full team of firefighters and necessary equipment, enhancing operational efficiency.
· Condition: As a new vehicle, it comes with reliable performance and minimal maintenance requirements in the initial stage.
· Warranty: Backed by a 6-month warranty of spare parts, customers can have confidence in the quality and after-sales support of the product.
The Isuzu 4X2 Water Tank Fire Truck is widely applicable in various fire-fighting scenarios:
In crowded cities, its compact design with an overall dimension of 7025x2300x3050 mm allows it to move flexibly through narrow streets. The fire monitor range of ≥65 m enables firefighters to reach distant fire sources, effectively controlling fires in high-rise buildings and densely populated areas.
Industrial areas often have complex layouts and potential fire hazards. With a load capacity of 1-10t and a large water tank capacity of 3750L, this fire truck can provide a continuous water supply to combat large-scale fires in factories, warehouses, and chemical plants.
In rural regions with underdeveloped road infrastructure, the 4×2 drive wheel and min turning radius of ≤19 m make it easy to navigate through rough roads and small villages. It can quickly respond to fire emergencies in agricultural fields, rural houses, and forested areas.
Apart from fire-fighting, the fire truck can also be used in emergency rescue operations such as flood control and water supply in disaster-stricken areas. Its reliable performance and sufficient water storage capacity make it a valuable asset in various emergency situations.
