C310131S001E002
Miler

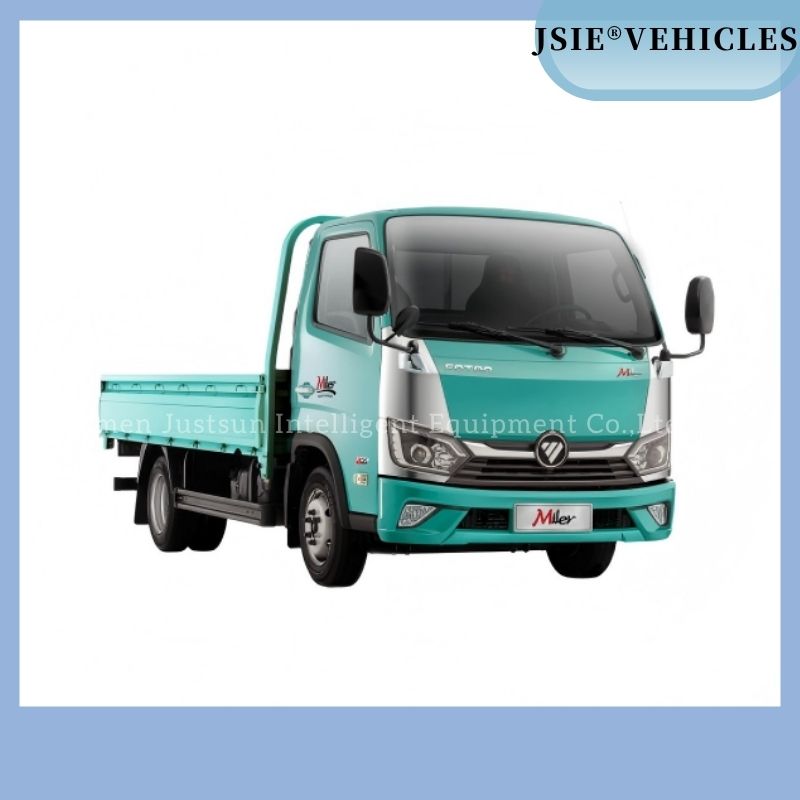

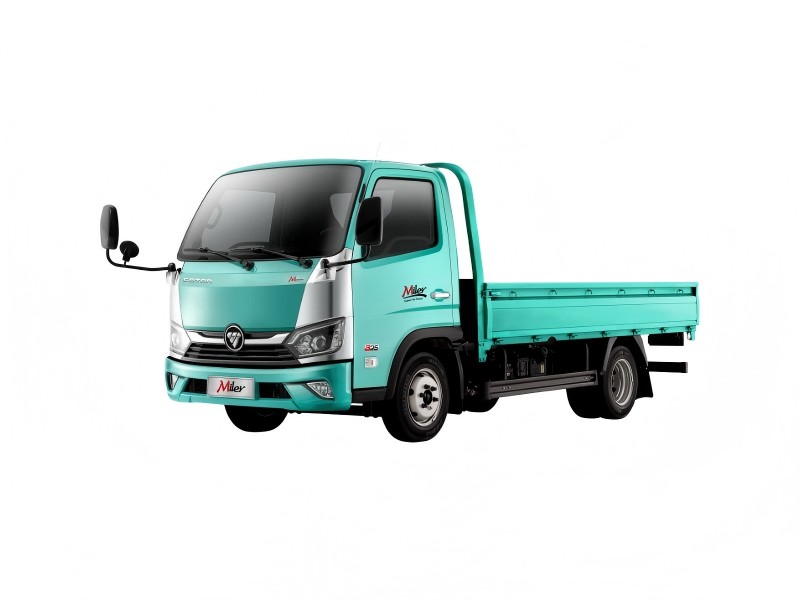

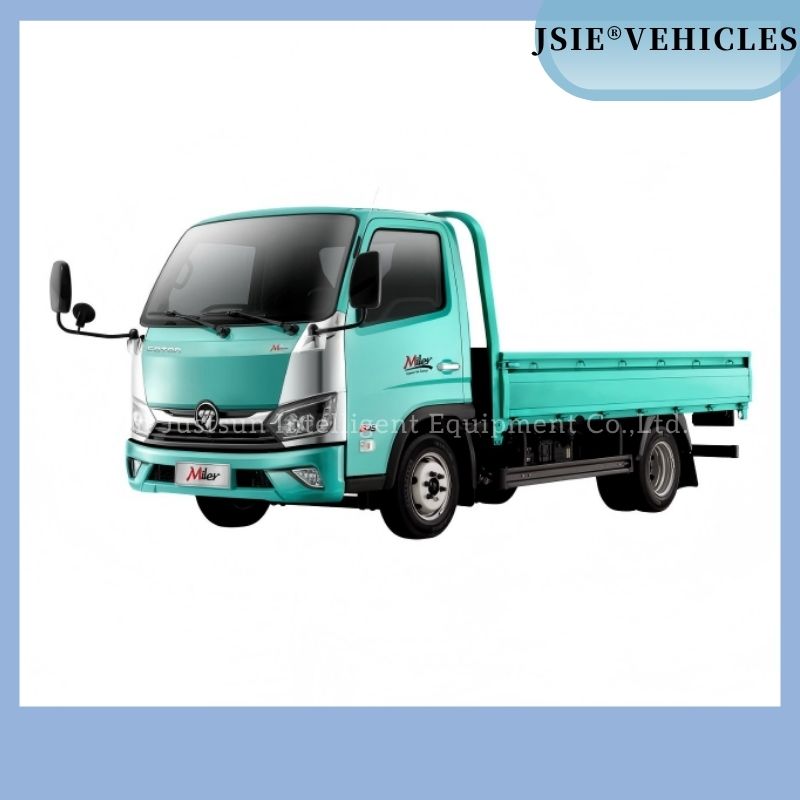

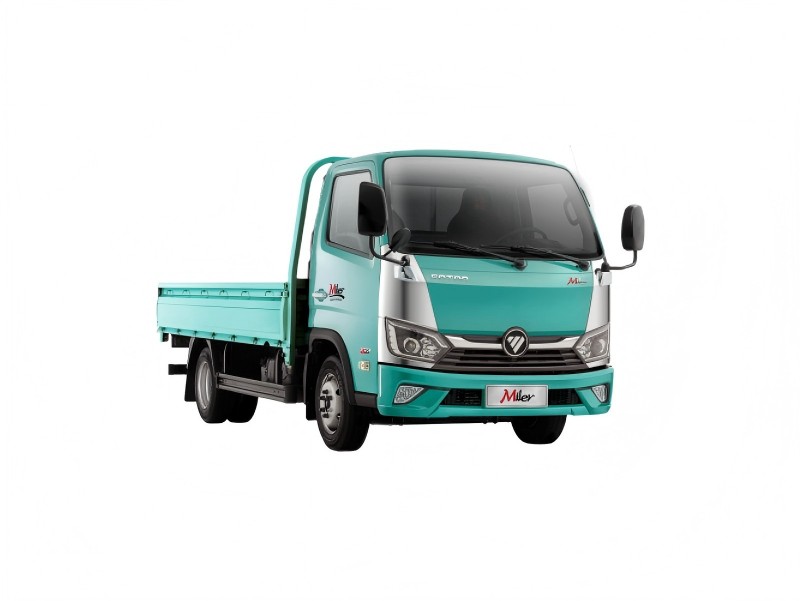

The Ollin Miler light duty truck combines a robust Euro 3 diesel chassis LHD with a practical single cab flatbed chassis design. Rated at 4.5 tons GVW, this 4×2 4.5 ton flatbed truck delivers dependable performance for local cargo transport. As a left hand drive light truck, it is ideal for markets where LHD is standard. The Ollin Miler 4.5 ton Euro 3 model offers a cost‑effective solution for businesses needing a 4×2 single cab chassis truck with a durable flatbed cargo truck 4.5t body. Whether you are searching for an Ollin Miler diesel flatbed or a general light duty truck for sale Euro 3, this chassis is built for daily work.
4×2 drive configuration – Stable on‑road handling and easy maneuverability.
4.5 ton GVW – Perfect for medium‑light loads in urban and suburban routes.
Euro 3 diesel engine – Reliable, fuel‑efficient, and easy to maintain.
Left hand drive (LHD) – Suitable for countries with right‑side traffic.
Single cab – Spacious for driver + passenger, with functional dashboard.
Flatbed chassis – Ready for mounting flatbed, stake body, or custom cargo platforms.
Durable suspension & frame – Designed for repeated heavy use.
Cost‑effective entry – Lower purchase price and cheap spare parts.
Easy maintenance – Euro 3 technology is widely understood by local mechanics.
Flatbed versatility – Carry construction materials, agricultural goods, or general freight.
Compact dimensions – Fits narrow streets and loading docks.
LHD convenience – Direct driving position for left‑hand traffic countries.
Small construction material delivery
Agricultural produce transport
Furniture and appliance moving
Local courier and distribution
Municipal gardening or waste collection (with custom body)
1. What is the payload capacity of the Ollin Miler 4×2 4.5 ton flatbed truck?
The chassis is rated for 4.5 tonnes GVW. The net payload is approximately 2.5 – 2.8 tonnes, depending on the flatbed body weight and any additional equipment.
2. Is the Euro 3 diesel chassis LHD available in right‑hand drive?
This specific model is left hand drive (LHD). For RHD versions, please inquire with the manufacturer about the Ollin Miler RHD variant.

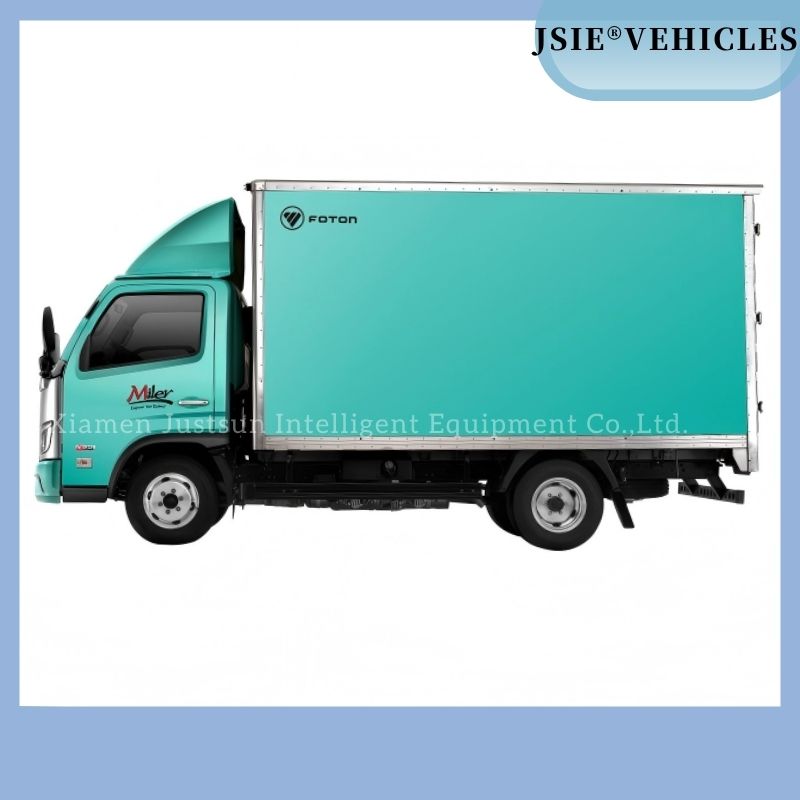

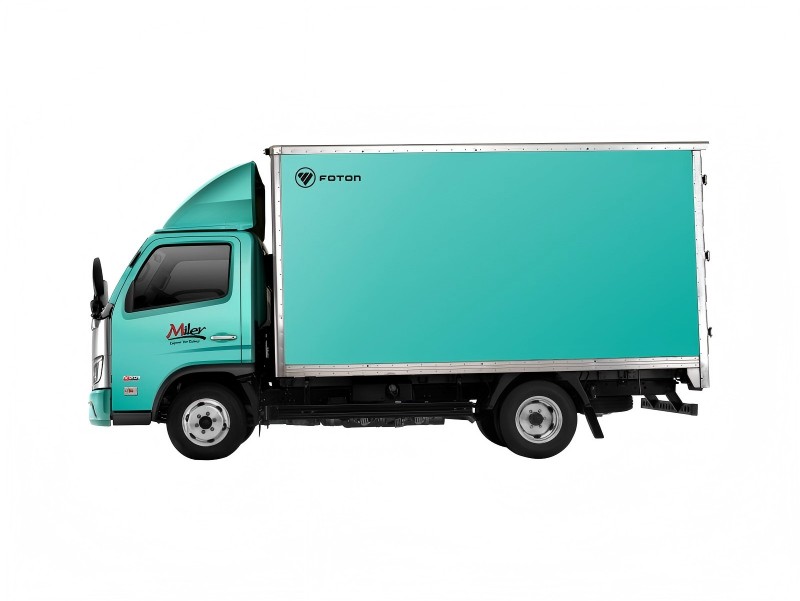

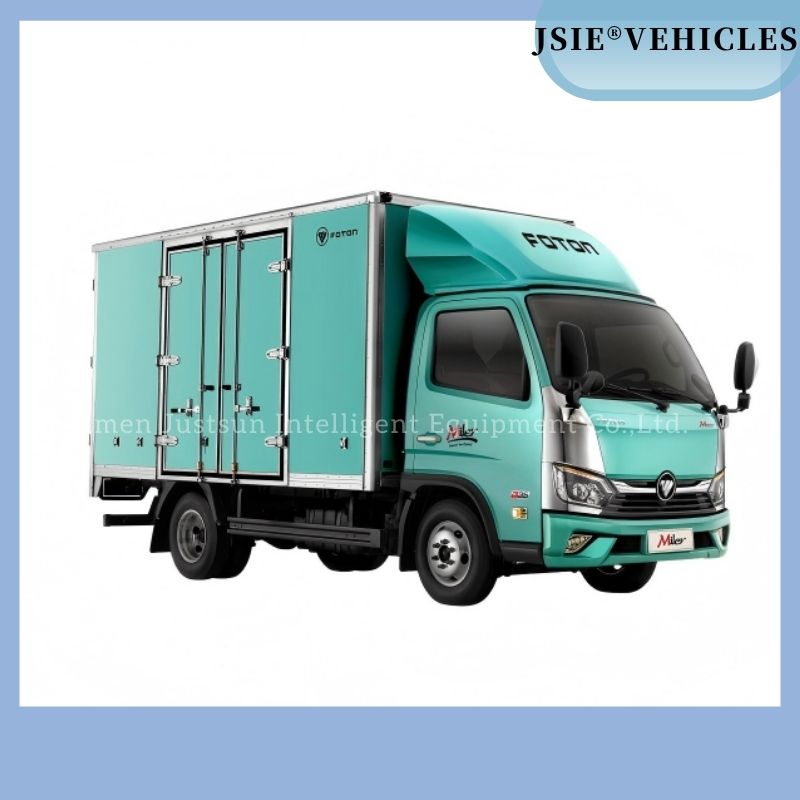

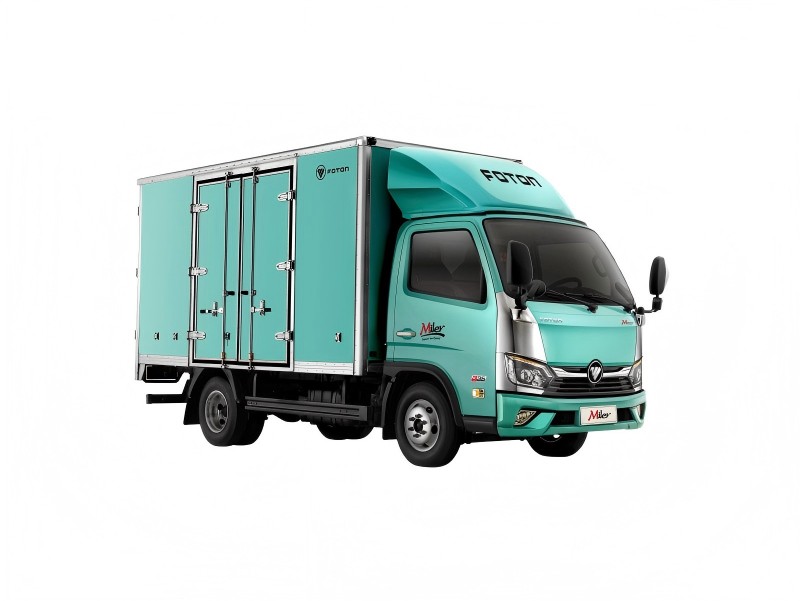

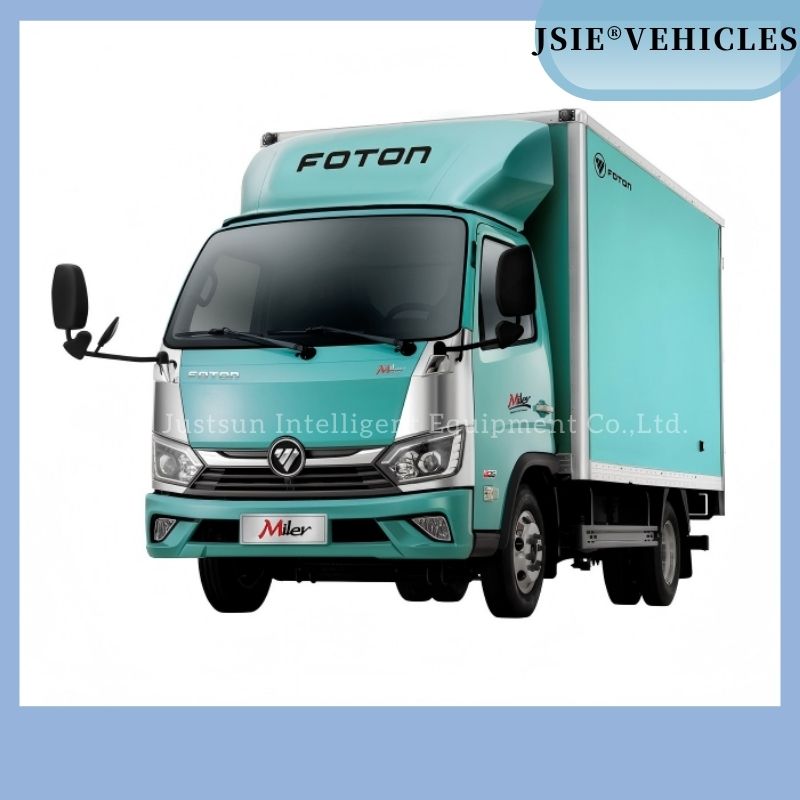

3. Can I use this single cab flatbed chassis for a box van body?
Yes. Although supplied as a flatbed chassis, the frame can be modified to mount a box van, dropside, or refrigerated body. Consult a local body builder.
4. What is the fuel consumption of the Ollin Miler 4.5 ton Euro 3 truck?
Under mixed driving conditions, expect around 11 – 13 L/100 km. Actual consumption depends on load, terrain, and driving habits.
5. Does this 4×2 single cab chassis truck come with power steering?
Yes, power steering is standard on most Ollin Miler light trucks, making city driving much easier.
6. Is the flatbed cargo truck 4.5t suitable for highway driving?
Yes, it can handle highway speeds up to 80‑90 km/h, but it is primarily designed for local and regional roads.
7. Can I find spare parts easily for this Euro 3 light duty truck for sale?
Yes. Ollin Miler has a growing parts network. Common items (filters, brake pads, clutch kits) are usually in stock at major distributors.
8. Does the single cab have air conditioning?
Air conditioning is optional on the base model. Many imported units include AC – please confirm with your supplier.
9. What is the difference between this 4×2 4.5 ton flatbed truck and a 6‑ton version?
The 4.5 ton model has a smaller engine, lighter chassis, and lower payload capacity. It is more economical for light duty work and requires a less expensive driving license in some countries.
Product Name | SM2 |
Vehicle No. | C310131S001E002 |
Brand | Miler |
Balance Unit Capacity | 4.5T |
Engine | YC4FA |
Gearbox | ZF5S408TO |
Drive Type | 4X2 |
Wheelbase | 2900 |
Overall Dimension (Chassis) | Chassis: 5455*1970*2110 mm Flatbed: 5535×1970×2215 mm |
Cargo Box Dimension | 3700×1870×400 mm |
GVW (kg) | 4500 |
Body Width (mm) | 1730 |
Truck Body | Ollin |
Left/Right Hand Drive | Left Hand Drive |
Cab Configuration | Single cab / Semi-sleeper |
Number of Seats (passenger capacity) | 3 |
Fuel Type | Diesel |
Engine Model | YC4FA115-33 |
Engine Manufacture | Yuchai |
Displacement (ml) | 2982 |
Emission Standard | Euro III |
Emission Route | / |
Power / Speed (HP) kw/ps (r/min) | 85/3200 |
Engine Torque (Nm/rpm) | 320/1800-2200 |
Transmission Model | 5S408TO |
Transmission Manufacture | ZF |
Front Axle Capacity | 1.8T |
Middle/Rear Axle Capacity | 3.5T |
Drive Axle Ratio | 4.875 |
Brake Type | Hydraulic brake |
Brake Form | front disc, rear drum |
Brake Control System | ABS |
Tire Model | LL6.50R16-10PR-NH |
Number of Tires | 6+1 |
Fuel Tank Capacity | 70 L |
Suspension Type | Non-independent suspension with longitudinal leaf spring |
Leaf Spring Count | 3/3+1 |
Frame Section (mm) | 170*55*4 |
