Overall Dimension(mm) | 5995*2250*2990 |
Emission Standard | National VI |
Max Speed(km/h) | 120 |
Axles Number | 2 |
Wheelbase(mm) | 3450 |
Tires Number | 6 |
Fuel | Diesel |
GVW(kg) | 4498 |
Curb Weight(kg) | 4368 |
Tire Specification | 195/75R16C |
Cab | 2 |
F/R Track Width(mm) | 1724/1540 |
Approach/Departure Angel(°) | 19/16 |
ABS System | with |
F/R Overhang(mm) | 1048/1497 |
Chassis Parameters |
Model | 45C18H |
Manufacture | Iveco Co., Ltd. |
Others |
This vehicle is primarily designed for emergency rescue and relief operations. Its main specialized equipment includes an electric winch, welding machine, inflation equipment, lifting lighting device, and equipment cabinet. The specialized devices are mounted on fixed brackets secured to the vehicle floor with bolts. The cargo compartment is fully enclosed and not designed to be opened. Side protection is provided by the vehicle's structural frame, while the rear protection consists of Q235 steel welded connections with a cross-sectional dimension of (mm): 220×90, positioned 405mm above the ground. The ABS model is 0 265 242 ***, manufactured by BOSCH. |
Description

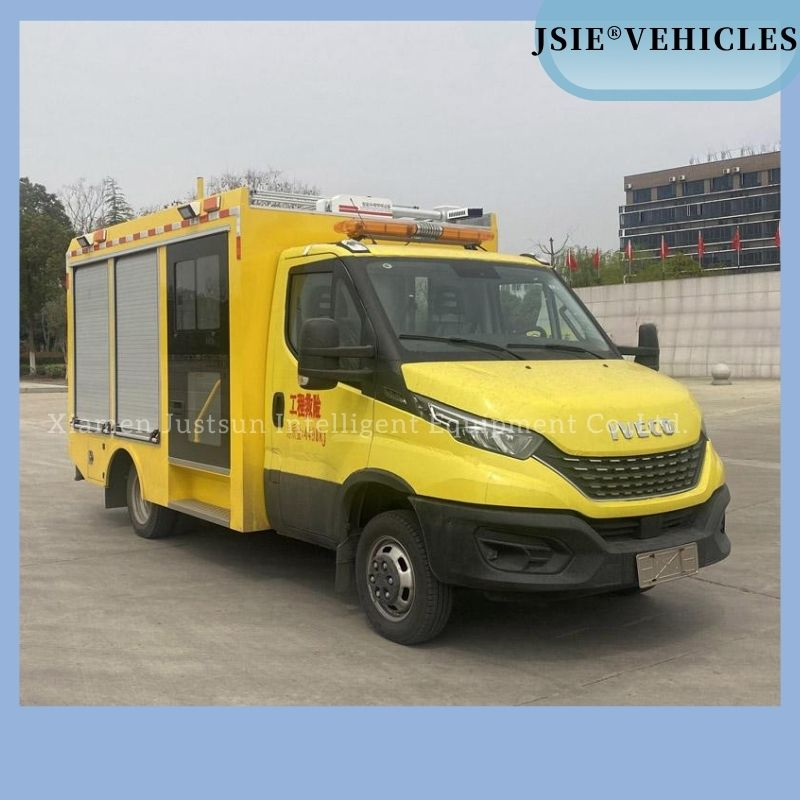

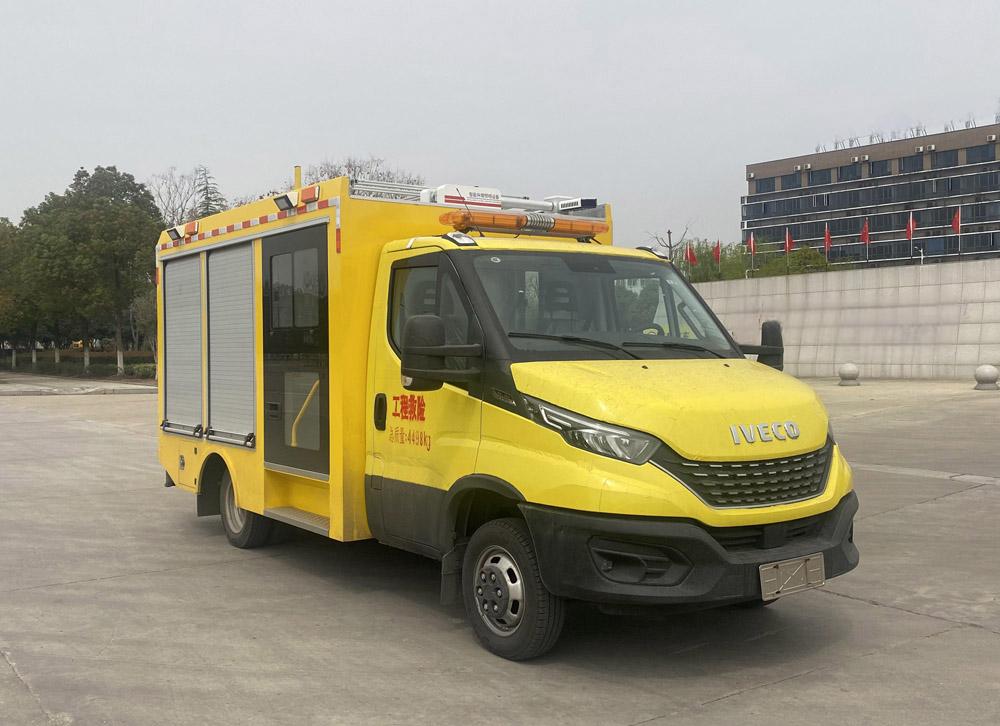

The Rapid Response Urban Fire & Emergency Rescue Support Truck, manufactured by Xiamen Justsun Intelligent Equipment Co., Ltd. in Xiamen, China, is a new commercial vehicle under the category of Commercial Trucks, specifically belonging to Sanitation Truck. With the model JSIE5045XXH6YK and brand JSIE, this truck is designed to play a vital role in urban fire fighting and emergency rescue operations. It comes with a 6 - month warranty on spare parts, ensuring reliable post - sales support.
Features
Specialized Equipment

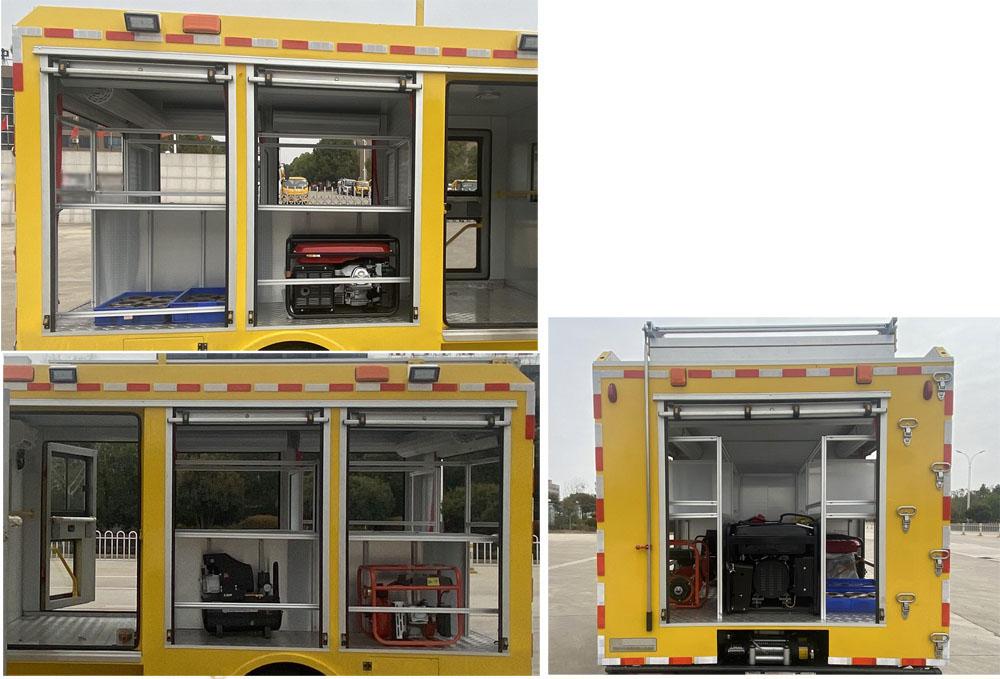

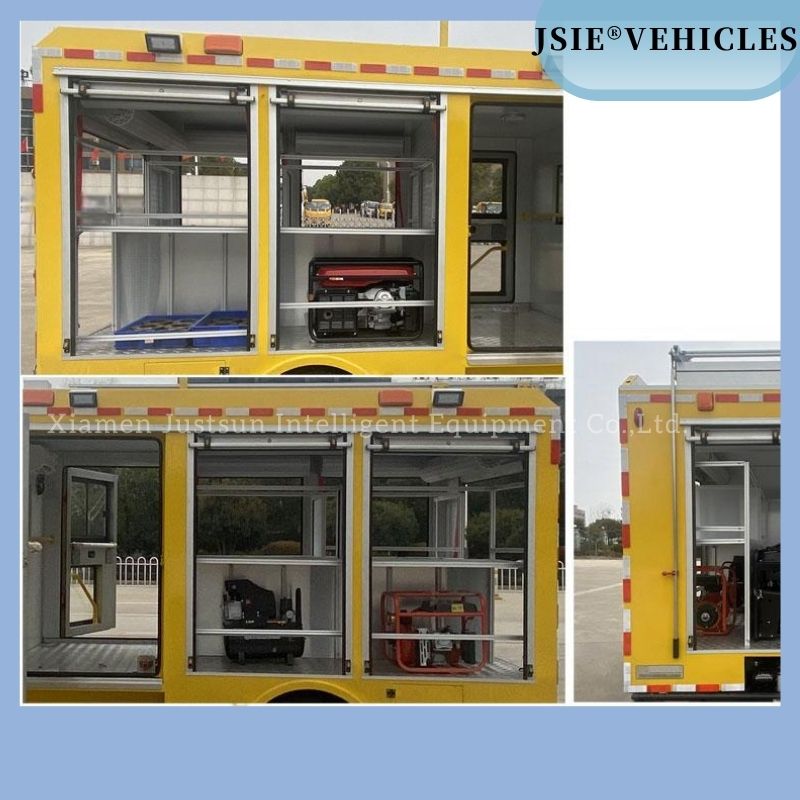

The truck is equipped with a range of essential specialized equipment to handle various emergency situations. It includes an electric winch for pulling heavy objects, a welding machine for on - site repairs, inflation equipment to ensure proper tire pressure, a lifting lighting device to provide sufficient illumination in low - light conditions, and an equipment cabinet for storing tools and supplies. All these devices are mounted on fixed brackets secured to the vehicle floor with bolts, ensuring stability during movement.
Structural Design

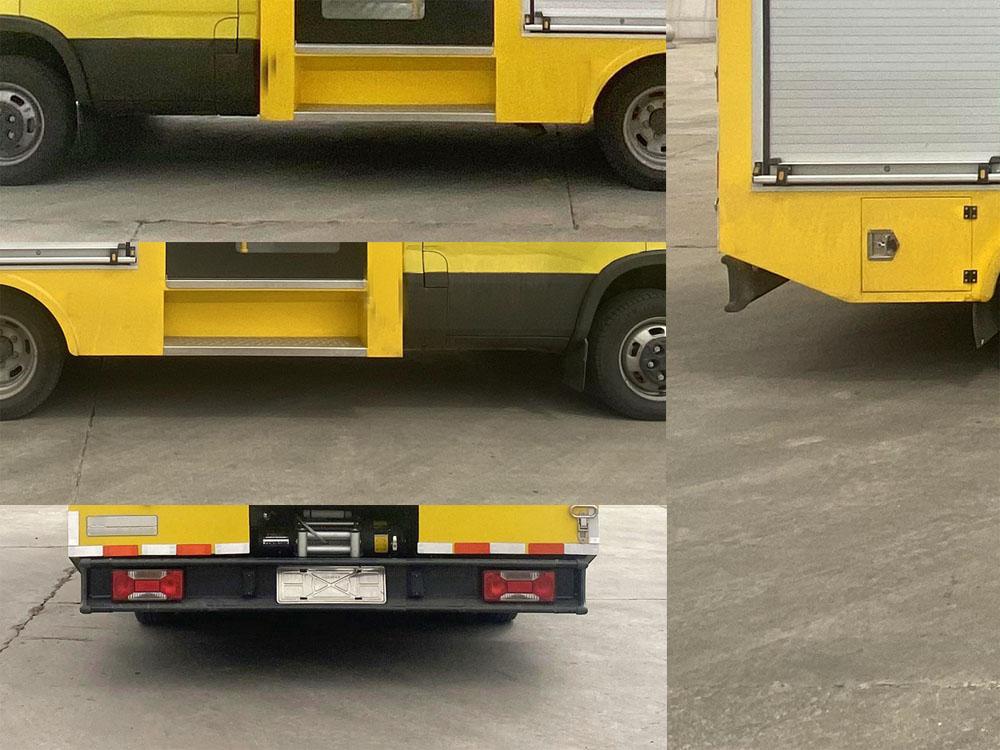

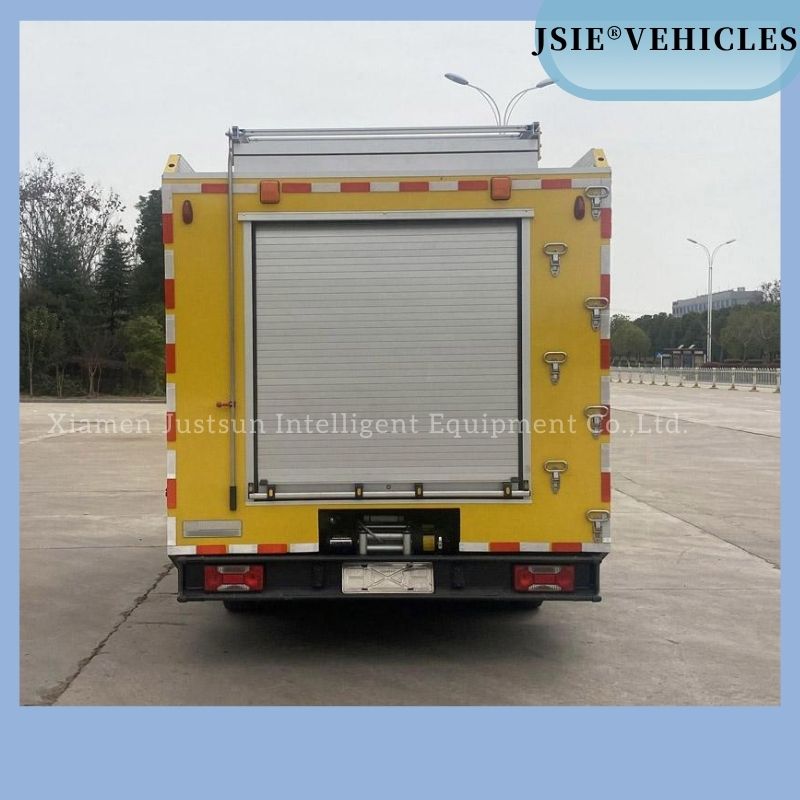

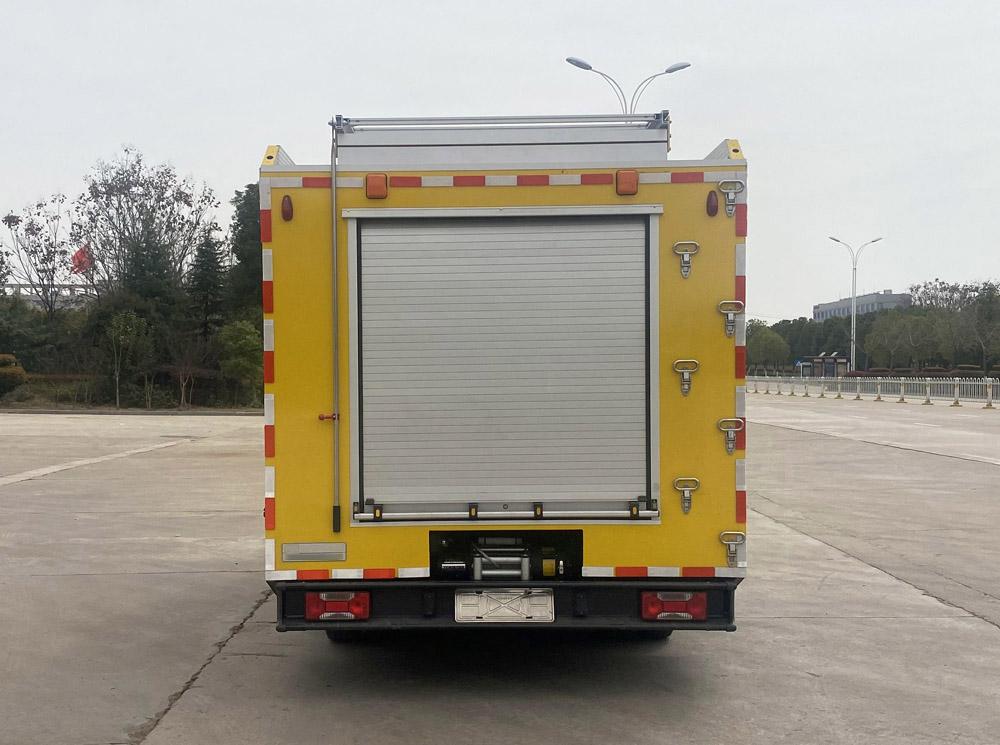

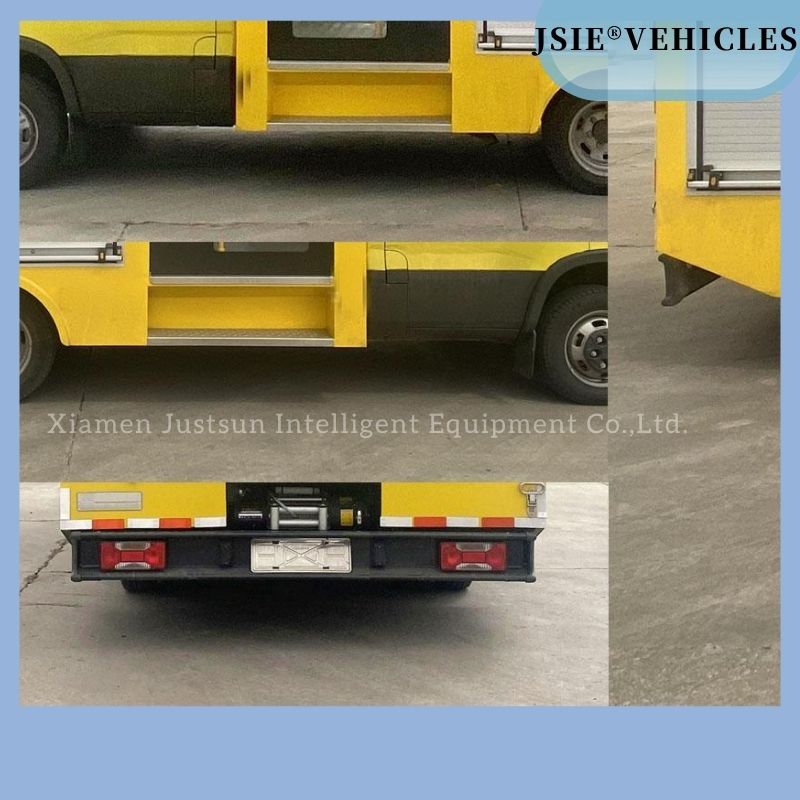

The cargo compartment of the truck is fully enclosed, which helps protect the equipment inside from external elements. For protection, the side protection is the vehicle's structural frame, and the rear protection consists of Q235 steel welded connections with a cross - sectional dimension of 220×90 mm, positioned 405mm above the ground, enhancing the safety of the truck.
Performance Advantages
Powered by a diesel engine with a capacity of 4 - 6L, the truck delivers strong power to meet the demands of emergency operations. It has a 4×2 drive wheel configuration, ensuring good maneuverability in urban environments. The National VI emission standard compliance makes it environmentally friendly. Additionally, it is equipped with an ABS system from BOSCH, improving braking safety. The truck can reach a maximum speed of 120km/h, allowing for rapid response to emergencies.
Application
This Rapid Response Urban Fire & Emergency Rescue Support Truck is primarily designed for emergency rescue and relief operations. It can be widely used in urban fire fighting scenarios, quickly arriving at the fire site to provide support with its equipment. In case of traffic accidents, it can assist in rescue efforts with the electric winch and welding machine. During natural disasters such as floods and earthquakes, the truck can transport rescue equipment and provide lighting and power support through its lifting lighting device and other equipment, playing a crucial role in saving lives and property.
