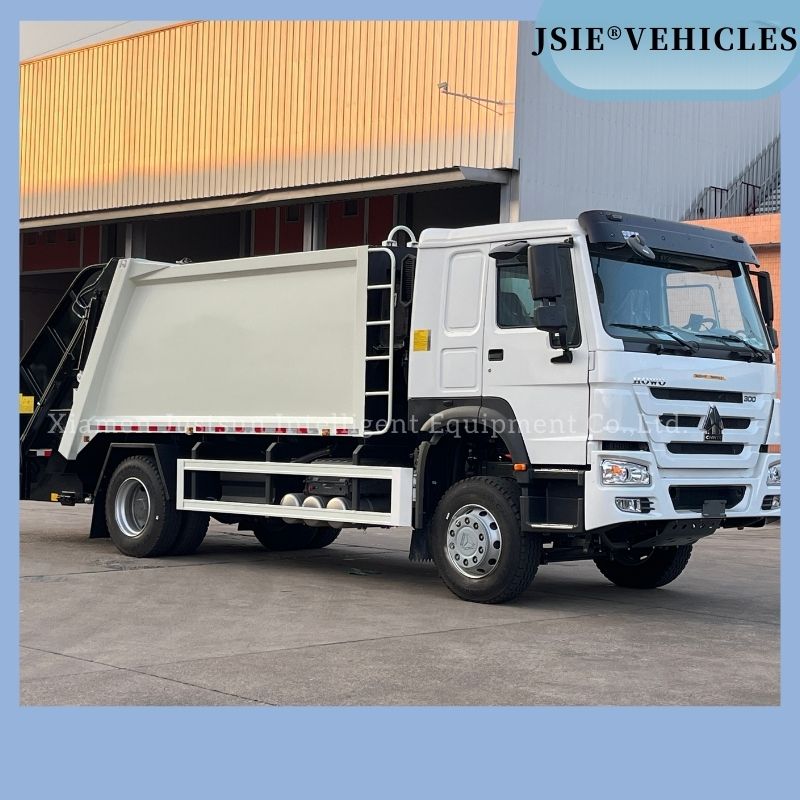

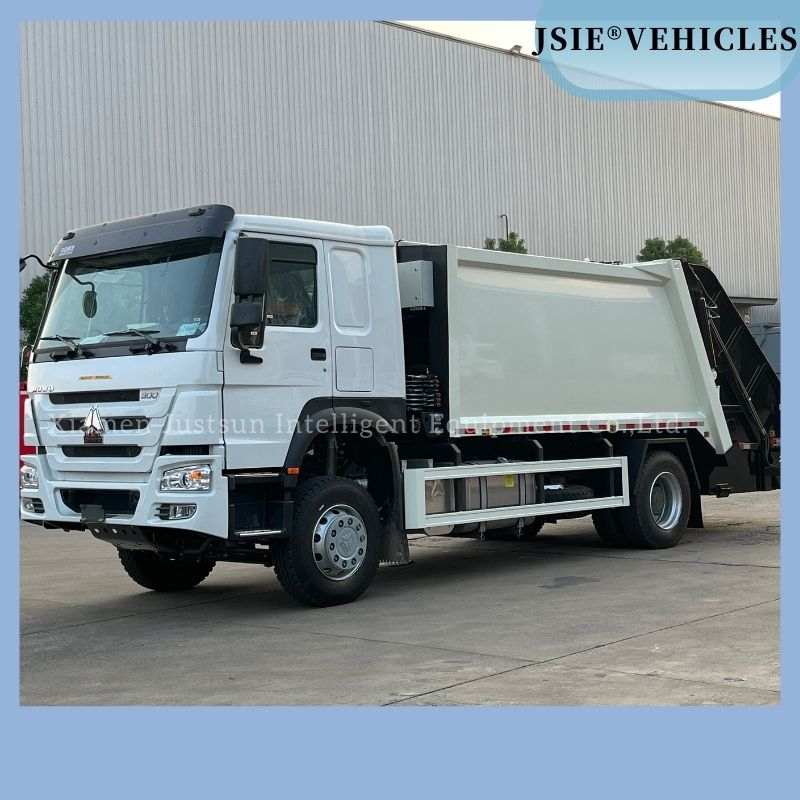

Refuse compactor structure parameters |
Equipment |
Structure | Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
Loading capacity | 4.5m3 |
System of loading | Mechanized, rear loading |
Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic |
Body |
Version | All-metal |
Shape | arc-shaped |
Sidewalls | Sheet carbon steel (thickness: 3 mm) |
Bottom | Sheet carbon steel (thickness: 4 mm) |
Roof | Sheet carbon steel (thickness: 4 mm) |
Front frame | Sheet carbonaceous steel (thickness: 5 mm) |
Rear frame | n-shaped profile from sheet carbon steel (thickness:5 mm) |
Basis | 120X120mm (thickness: 5 mm) |

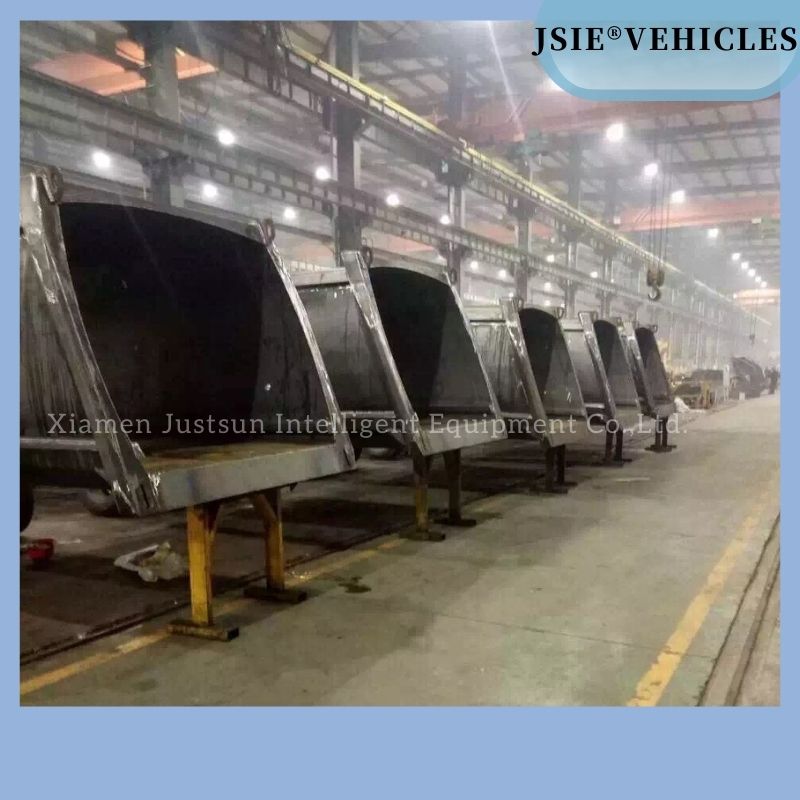

Loading bunker |
Loading bunker | All-metal with sidewalls and a loading ladle |
Volume | 0.7 m3 |
Sidewalls | Sheet carbon steel (thickness: 3 mm) |
Ladle floor material | Sheet carbon steel (thickness: 4 mm) |
Liquid drain | Drainage channel,sewage tank |
Working zone Lighting | 2 lamps |
Mechanism of raising | Two hydraulic cylinders |
Ensuring tightness | Between the body and lifting back part in the lower part profile acid-proof rubber is used. |
Pressing system |
Features | Control mode diversification,bidirectional compression |
Pressure | 16Mpa |
Compaction ratio | 4.0:1 |
pressing mechanism | The giving plate and hinge related pressing plate moving on two directing bars |
Pressing mode | Automatic pressing (1 full cycle and continuous pressing) and controlling of each cycle of pressing separately |
Control of pressing | Control from the external panel on the bunker |
Lifting rear part |
Mechanism of lifting | Two hydraulic cylinders |
Function description | Suitable for various rubbish bins |
Others |
Color and Logo | Optional |
