Dimension(Lx W xH)(unloaded)(mm) | 9745×2496×3450 |
Cargo body size (LxWxH) (mm) | 6800x2300x1500 Sand body,Front lifting, Bottom 8 mm, Side 6 mm |
Approaching angle/Departure angle(°) | 19/24 |
Overhang(front/rear) (mm) | 1500/1625 |
Wheel base (mm) | 1800+3200+1350 |
Max speed(km/h) | 75 |
Curb weight(kg) | 15400 |
Engine(Steyr technology, made in China) | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel |
| Power, max(kw/rpm) | 371HP |
| Emission | EUROII |
Fuel tanker capacity(L) | 300L aluminum oil tank |
Transmission | Model | HW19710, 10 speeds forward and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
Steering system | Model | ZF8118 |
Front axle | HF9 |
Rear axle | HC16 |
Tire | 12.00R20 |
Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
|
| Starter | 7.5Kw/24V |
Core Features
Exceptional Load-Bearing Capacity

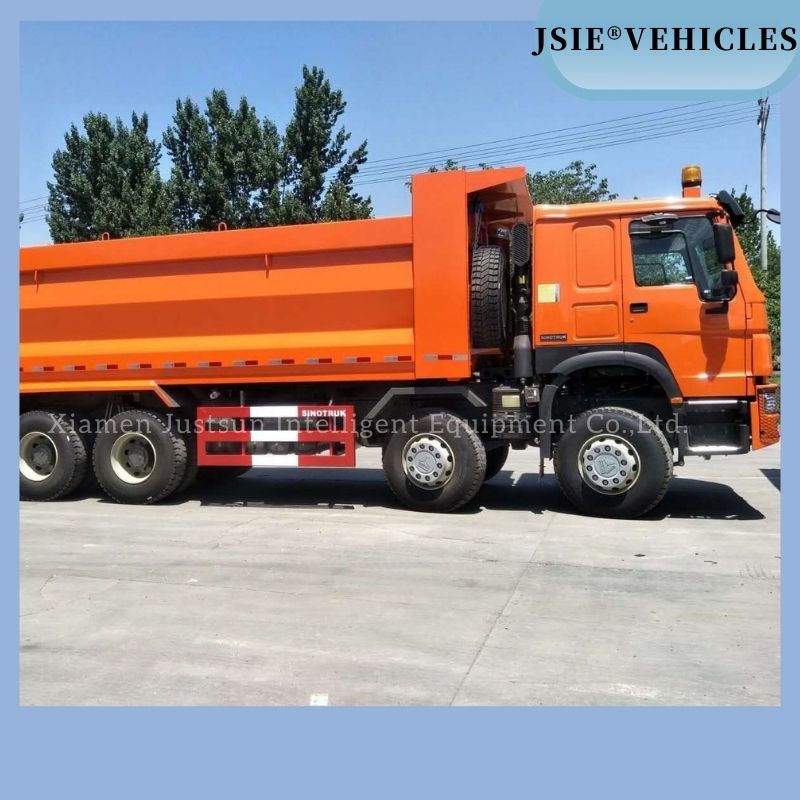

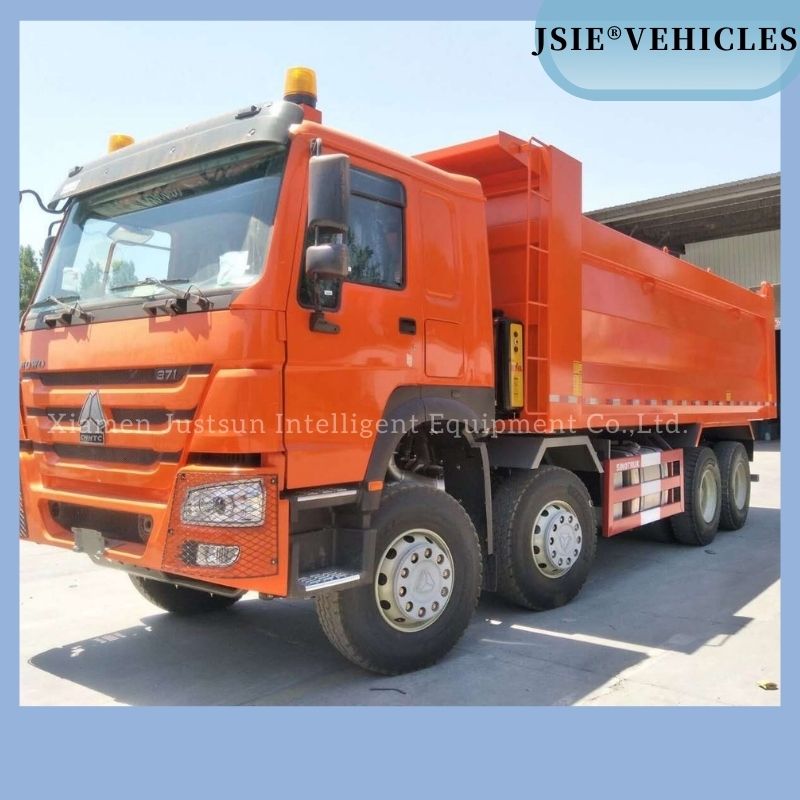

The Sinotruk HOWO 8X4 Heavy Duty Dump Truck boasts a 60-ton maximum load capacity, with a practical payload of 30–40 tons. Its reinforced high-strength steel cargo box and 8×4 chassis with dual rear axles ensure superior load distribution, making it ideal for heavy-duty hauling in construction and mining.
Powerful Steyr-Technology Diesel Engine
Equipped with a 430HP (or optional 336–420HP) Steyr-technology engine, this dump truck delivers strong torque for navigating steep slopes and rough terrain. The water-cooled, turbocharged engine is fuel-efficient and durable, with low emission levels (Euro 2 compliant) to meet environmental standards.
Reliable Heavy-Duty Hydraulic Dumping System
The front lifting hydraulic system features efficient lifting cylinders for fast, smooth unloading. The stable hydraulic mechanism supports continuous, high-frequency tipping operations—critical for busy construction sites and mining quarries. It ensures safe unloading even under full load.
Durable Design for Harsh Environments
Built to withstand mining areas, construction sites, and off-road conditions, the dump truck features an enhanced steel frame, durable suspension, and dual-circuit compressed air brake system. Its robust design extends service life, reducing downtime and maintenance costs.
FAQ
What is the maximum unloading time of the HOWO 8X4 Dump Truck?
The hydraulic system enables fast unloading—typically 15–20 seconds to fully lift the cargo box, improving work efficiency in high-volume operations.
What material is the cargo body made of?
The cargo body is constructed with high-strength steel (bottom 8mm, side 6mm) for durability, resistant to wear and impact from heavy materials like gravel and coal.
Is this dump truck suitable for off-road conditions?
Yes, the 8×4 drive configuration, robust suspension, and large 12.00R20 tires provide excellent off-road performance, making it ideal for mining areas and unpaved construction sites.
What is the minimum order quantity (MOQ) for this model?
The MOQ is 1 unit, with flexible payment terms (L/C and T/T) and shipment from Qingdao or Shanghai ports.
How easy is it to source spare parts for maintenance?
Sinotruk has a global network of spare parts suppliers, ensuring easy access to genuine components—reducing maintenance downtime and operational costs.
