ZZ5447TXFV466MF1
JSIE
Whole Vehicle Main Parameters | |
Overall Dimension(mm) | 11900*2540*3680 |
GVW(kg) | 42600 |
Liquid load(kg) | Carry water 24400kg |
Max Speed(km/h) | 100 |
Rated flow of fire pump | 100L/s@1.0MPa |
Rated flow of fire monitor | 80L/s 0.8MPa |
Range of fire monitor | Water ≥85m |
Specific Power | 327/42.6=7.6 |
Approach/Departure Angel(°) | 19 / 11 |
Chassis Main Parameters | |
Model | ZZ5447TXFV466MF1 |
Manufacture | Sinotruck Jinan Truck CO. Ltd. |
Engine Rated power | 327Kw |
Engine Displacement | 10518ml |
Emission Standard | GB17691-2018 National VI |
Driving Type | 8X4 |
Wheelbase(mm) | 1950+4600+1400 |
Max Permissible Gross Weight(kg) | 44000 |
Number of Occupants | 2 |
Transmission | Manual |
Power Take-Off(PTO) | Intermediary PTO |

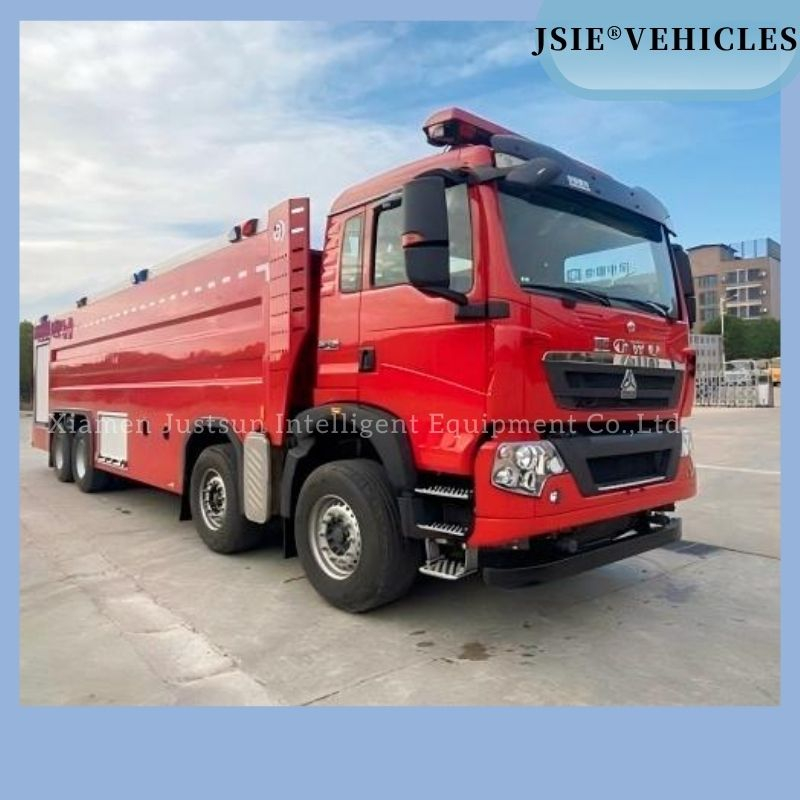

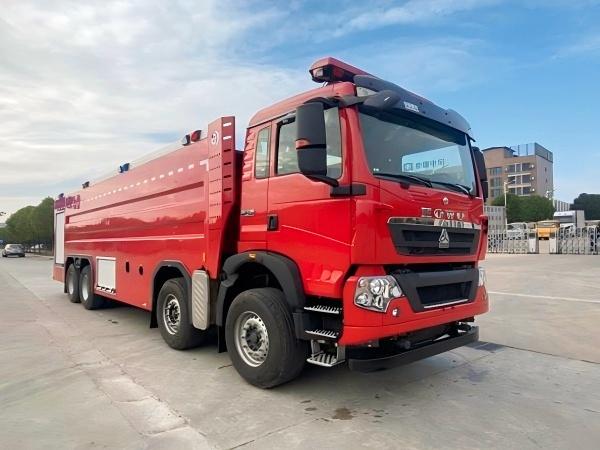

The Sinotruk HOWO 24t Water Tank Fire Truck with model ZZ5447TXFV466MF1 is a brand-new fire-fighting vehicle manufactured by Xiamen Justsun Intelligent Equipment Co., Ltd., a reputable company based in China. This truck is designed to meet the high demands of modern fire-fighting operations, combining powerful performance with environmental friendliness.
Equipped with a diesel engine, it delivers reliable power to handle various emergency situations. The manual transmission ensures precise control, while the 8×4 drive wheel configuration provides excellent traction, making it suitable for different terrains. With a 24t load capacity, it can carry a large amount of water, ensuring a continuous water supply during fire-fighting missions.
Meeting the National VI emission standard, this fire truck is not only efficient in combating fires but also contributes to reducing environmental impact. The new condition of the truck guarantees that it is in perfect working order, ready to serve for a long time. Backed by a 6-month warranty on spare parts, customers can have peace of mind regarding its after-sales service.
· The truck is powered by a diesel engine with an engine capacity of 10L and a horsepower range of 251-350hp, providing strong power to navigate through various road conditions and reach fire scenes quickly.
· With a 327Kw engine rated power, it ensures sufficient power output for both driving and operating the fire-fighting equipment.
· The 8×4 drive wheel configuration enhances the truck's traction and stability, allowing it to perform well on rough or slippery roads.
· Boasting a 24t load capacity and the ability to carry 24400kg of water, this fire truck can provide a continuous water supply for an extended period during fire-fighting operations, which is crucial for extinguishing large fires.

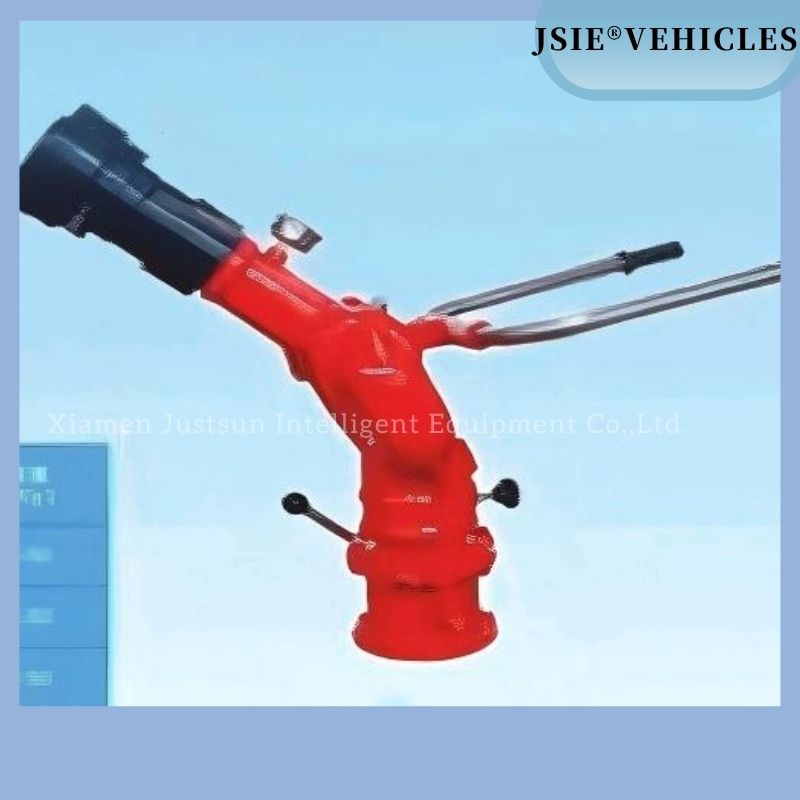

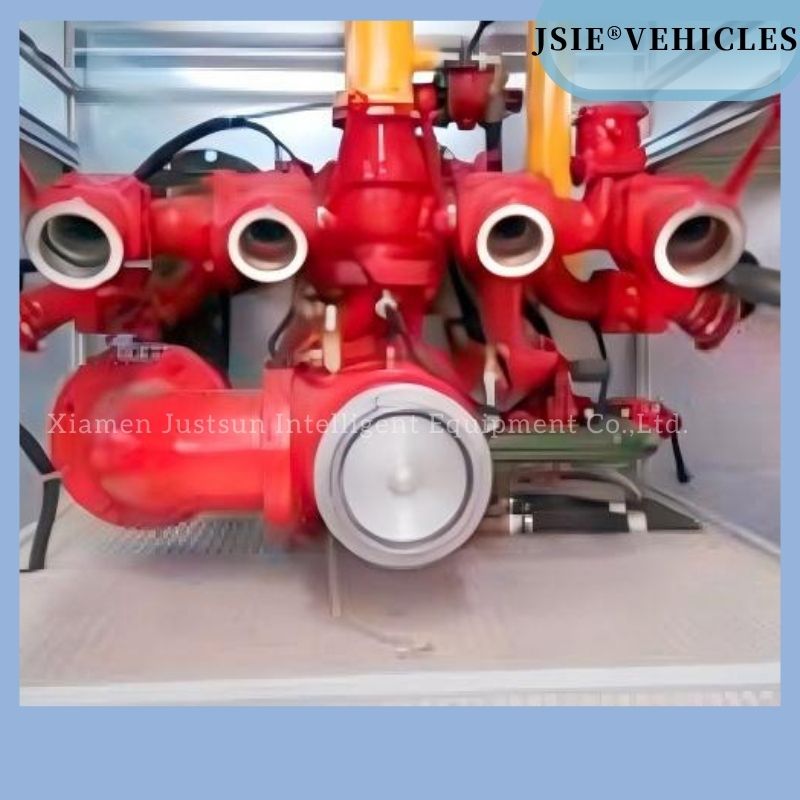

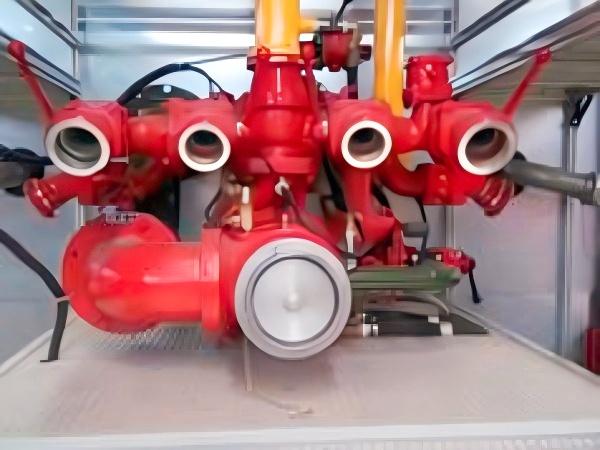

· The fire pump has a rated flow of 100L/s@1.0MPa, and the fire monitor has a rated flow of 80L/s 0.8MPa with a range of ≥85m, enabling effective fire suppression from a safe distance.
· It meets the National VI emission standard (GB17691-2018), which means it emits fewer pollutants, complying with strict environmental regulations and contributing to a cleaner environment.
· Being a new vehicle, it is built with high-quality materials and components to ensure long-term durability and reliable performance in demanding fire-fighting situations.
· The manual transmission is robust and easy to maintain, reducing the risk of breakdowns during critical operations.
· The truck comes with a 6-month warranty on spare parts, providing customers with assurance and support in case of any issues with the components.
This Sinotruk HOWO 24t Water Tank Fire Truck is widely applicable in various fire-fighting scenarios:
It is an essential asset for urban fire departments, capable of responding quickly to fires in residential areas, commercial buildings, and industrial zones. The large water capacity ensures that there is enough water to control and extinguish fires before additional water sources arrive.
In industrial areas where there are factories, warehouses, and chemical plants, the risk of fires is relatively high. This fire truck can effectively handle fires involving flammable materials, thanks to its powerful fire-fighting equipment and large water storage.
When deployed in forested areas, the truck can transport a large amount of water to remote fire locations. Its good maneuverability allows it to navigate through forest roads, and the long-range fire monitor helps in reaching fires that are difficult to access directly.
During large-scale events such as concerts, sports games, or exhibitions held in stadiums or convention centers, this fire truck can be on standby to quickly respond to any fire incidents, ensuring the safety of the attendees.
In rural or remote areas where access to water sources may be limited, the 24t water capacity of this truck is extremely valuable. It can provide a reliable water supply for fire-fighting efforts, protecting villages, farms, and other rural properties from fire damage.
Whole Vehicle Main Parameters | |
Overall Dimension(mm) | 11900*2540*3680 |
GVW(kg) | 42600 |
Liquid load(kg) | Carry water 24400kg |
Max Speed(km/h) | 100 |
Rated flow of fire pump | 100L/s@1.0MPa |
Rated flow of fire monitor | 80L/s 0.8MPa |
Range of fire monitor | Water ≥85m |
Specific Power | 327/42.6=7.6 |
Approach/Departure Angel(°) | 19 / 11 |
Chassis Main Parameters | |
Model | ZZ5447TXFV466MF1 |
Manufacture | Sinotruck Jinan Truck CO. Ltd. |
Engine Rated power | 327Kw |
Engine Displacement | 10518ml |
Emission Standard | GB17691-2018 National VI |
Driving Type | 8X4 |
Wheelbase(mm) | 1950+4600+1400 |
Max Permissible Gross Weight(kg) | 44000 |
Number of Occupants | 2 |
Transmission | Manual |
Power Take-Off(PTO) | Intermediary PTO |
The Sinotruk HOWO 24t Water Tank Fire Truck with model ZZ5447TXFV466MF1 is a brand-new fire-fighting vehicle manufactured by Xiamen Justsun Intelligent Equipment Co., Ltd., a reputable company based in China. This truck is designed to meet the high demands of modern fire-fighting operations, combining powerful performance with environmental friendliness.
Equipped with a diesel engine, it delivers reliable power to handle various emergency situations. The manual transmission ensures precise control, while the 8×4 drive wheel configuration provides excellent traction, making it suitable for different terrains. With a 24t load capacity, it can carry a large amount of water, ensuring a continuous water supply during fire-fighting missions.
Meeting the National VI emission standard, this fire truck is not only efficient in combating fires but also contributes to reducing environmental impact. The new condition of the truck guarantees that it is in perfect working order, ready to serve for a long time. Backed by a 6-month warranty on spare parts, customers can have peace of mind regarding its after-sales service.
· The truck is powered by a diesel engine with an engine capacity of 10L and a horsepower range of 251-350hp, providing strong power to navigate through various road conditions and reach fire scenes quickly.
· With a 327Kw engine rated power, it ensures sufficient power output for both driving and operating the fire-fighting equipment.
· The 8×4 drive wheel configuration enhances the truck's traction and stability, allowing it to perform well on rough or slippery roads.
· Boasting a 24t load capacity and the ability to carry 24400kg of water, this fire truck can provide a continuous water supply for an extended period during fire-fighting operations, which is crucial for extinguishing large fires.
· The fire pump has a rated flow of 100L/s@1.0MPa, and the fire monitor has a rated flow of 80L/s 0.8MPa with a range of ≥85m, enabling effective fire suppression from a safe distance.
· It meets the National VI emission standard (GB17691-2018), which means it emits fewer pollutants, complying with strict environmental regulations and contributing to a cleaner environment.
· Being a new vehicle, it is built with high-quality materials and components to ensure long-term durability and reliable performance in demanding fire-fighting situations.
· The manual transmission is robust and easy to maintain, reducing the risk of breakdowns during critical operations.
· The truck comes with a 6-month warranty on spare parts, providing customers with assurance and support in case of any issues with the components.
This Sinotruk HOWO 24t Water Tank Fire Truck is widely applicable in various fire-fighting scenarios:
It is an essential asset for urban fire departments, capable of responding quickly to fires in residential areas, commercial buildings, and industrial zones. The large water capacity ensures that there is enough water to control and extinguish fires before additional water sources arrive.
In industrial areas where there are factories, warehouses, and chemical plants, the risk of fires is relatively high. This fire truck can effectively handle fires involving flammable materials, thanks to its powerful fire-fighting equipment and large water storage.
When deployed in forested areas, the truck can transport a large amount of water to remote fire locations. Its good maneuverability allows it to navigate through forest roads, and the long-range fire monitor helps in reaching fires that are difficult to access directly.
During large-scale events such as concerts, sports games, or exhibitions held in stadiums or convention centers, this fire truck can be on standby to quickly respond to any fire incidents, ensuring the safety of the attendees.
In rural or remote areas where access to water sources may be limited, the 24t water capacity of this truck is extremely valuable. It can provide a reliable water supply for fire-fighting efforts, protecting villages, farms, and other rural properties from fire damage.
