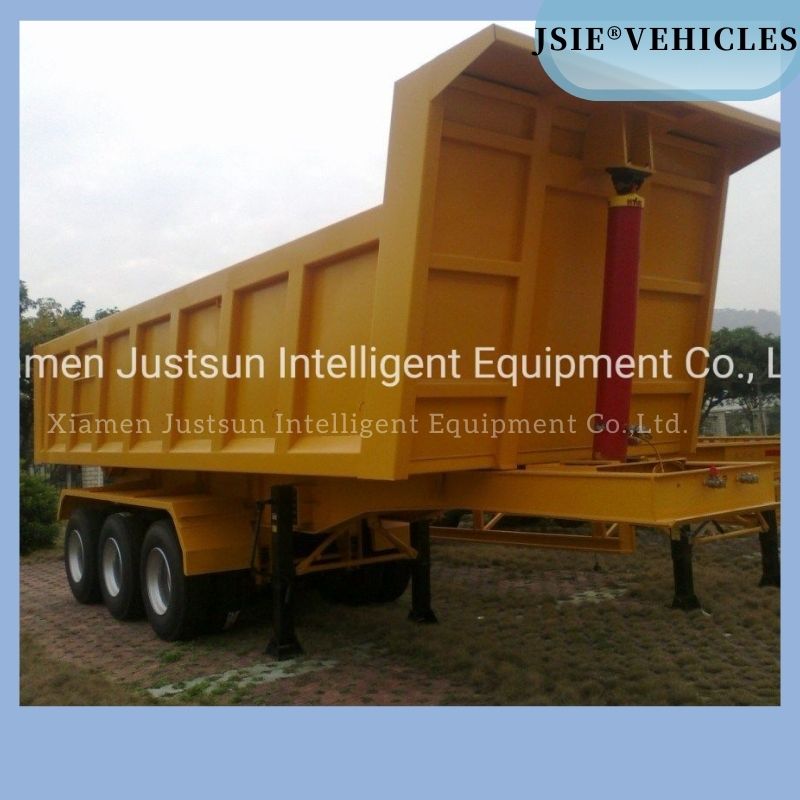

Fleet managers and owner-operators evaluating dump trailer configurations constantly juggle competing operational priorities on the job site. You must balance maximum payload capacity against rapid cycle times and strict safety protocols. Selecting the wrong equipment often causes unnecessary delays, damages expensive chassis components, and drastically increases rollover risks during unloading operations.
This guide aims to explain the exact mechanical operation of bottom dump—often called belly dump—trucks. We provide a clear, evidence-based framework for deciding if this specific configuration fits your daily hauling demands and site requirements. You will learn how pneumatic gate systems function, why fleets rely on them for road construction, and how to assess driver skill requirements. Keep in mind, while these specialized trailers effectively eliminate specific safety hazards like high-angle tipping, they also introduce distinct operational limitations regarding uneven terrain and bulky material types.
Core Mechanism: A bottom dump semi trailer utilizes air-actuated clamshell gates at the belly of the unit to release materials linearly while in motion.
Primary Advantage: They offer superior stability and virtually eliminate the rollover risks associated with traditional end dump trailers.
Best Use Cases: Highly efficient for windrowing free-flowing materials like sand, gravel, and asphalt in road construction.
Key Limitations: Incompatible with large debris (boulders, riprap) and requires flat terrain with adequate ground clearance to avoid gate damage.
Understanding how this equipment functions mechanically helps fleets deploy it correctly. The belly dump design relies on gravity, motion, and compressed air to work effectively.
The hopper structure funnels payload weight toward the center belly of the trailer. At the base sits a clamshell gate system. Engineers design these heavy-duty gates to open either laterally or longitudinally. Longitudinal gates open front-to-back, dropping material directly between the trailer axles. Lateral gates, or cross-gates, open side-to-side. They drop material in a wider path. Both designs control material flow by adjusting the gate aperture. You can open them partially for a thin spread or fully for a rapid dump.
Unlike end dumps relying on hydraulic rams, bottom dumps use pneumatic power. The tractor's air compressor supplies air to the trailer's onboard reservoirs. When triggered, high-pressure air fills large pneumatic cylinders attached to the clamshell gates. These cylinders exert immense force to pull the heavy steel gates open, even when thousands of pounds of aggregate rest on top of them. Powerful return springs or reverse air pressure then slam the gates shut once the payload clears.
Operators usually control the gate aperture directly from inside the tractor cab. They use electric-over-air toggle switches or joysticks to actuate the pneumatic valves. This remote operation allows drivers to lay precise windrows while watching their mirrors. Precise in-cab control drastically reduces the need for secondary grading equipment on a job site. Some models also feature manual override levers on the side of the trailer. Workers use these external controls for stationary stockpiling or emergency releases.
Manufacturers design every semi trailer of this type for dynamic unloading. We call this drafting or windrowing. The truck must move forward at a steady speed as the gates open. The material flows out and forms a continuous ridge behind the trailer. If a driver attempts to empty a fully loaded belly dump while stationary, mechanical failure often follows. The discharged material piles up instantly beneath the hopper. It traps the trailer axles, locks the wheels, and can severely bend the gate mechanisms as the truck attempts to pull away.
Operations managers rarely choose equipment based on aesthetics. They select belly dumps to solve specific logistical and safety bottlenecks in heavy hauling.
Traditional end dumps must elevate their beds high into the air to unload. This action shifts the center of gravity dangerously high. If the ground is slightly uneven, or if the material sticks to the top of the bed, the entire truck can roll over. Belly dumps eliminate this hazard entirely. Because the bed never lifts, the center of gravity remains low throughout the entire dumping cycle. This structural stability improves job site safety metrics. It also frequently lowers commercial insurance premiums due to reduced tip-over liabilities.
Efficiency drives profitability in highway and road base construction. Belly dumps excel here through continuous moving unloads. A driver does not need to stop, position the truck, elevate a bed, wait for the drop, lower the bed, and pull away. Instead, they drive through the drop zone at a steady pace, opening the gates on the fly. This seamless process shaves minutes off every single delivery. Over a massive paving project, these saved minutes compound into days of reduced project timelines.
Federal Bridge Gross Weight Formula regulations strictly govern axle weights on public highways. A bottom dump semi-trailer often features a longer wheelbase than standard dump setups. Engineers can easily configure them with multiple drop axles or spread-axle designs. This extended footprint distributes the payload weight over a much wider area. Consequently, operators can legally haul more tons per trip on interstate highways compared to shorter, concentrated end dump configurations.
No single trailer type handles every job perfectly. You must match the trailer’s specific features to your expected operational outcomes.
Knowing what you haul dictates the trailer you buy. Match the material to the mechanism.
Bottom Dump: Ideal for free-flowing materials. Think aggregates, sand, gravel, and hot mix asphalt. Gravity pulls these materials smoothly through the belly opening. However, they cannot handle large riprap or sticky, wet clay.
End Dump: Highly versatile. Best for bulky demolition debris, scrap metal, and stubborn soil. The steep lift angle forces stubborn materials out. They do require significant overhead clearance to avoid power lines.
Side Dump: Best for shoulder work, levee construction, and transporting large boulders. They tip sideways, meaning they need lateral space but zero overhead clearance.
Ground clearance requirements differ drastically among these designs. Bottom dumps demand relatively flat, graded paths. The clamshell gates sit close to the ground, leaving little room for error over deep ruts. End dumps, by contrast, can navigate tighter, rougher terrain and stockpile material in concentrated, stationary footprints. Side dumps require firm ground on the tipping side to prevent lateral rollovers, but they excel in narrow linear corridors where a truck cannot turn around.
Maintenance profiles also diverge. End and side dumps rely heavily on massive hydraulic rams. These require regular hydraulic fluid checks, hose inspections, and seal replacements to prevent leaks. Bottom dumps rely on pneumatic air valves and clam gates. The wear and tear focuses heavily on the gate pivot points and the rubber seals along the clamshell edges. Sand and grit constantly abrade these seals. While pneumatic systems rarely leak messy fluids, they do require diligent daily draining of air tanks to prevent moisture buildup.
Dump Trailer Comparison Chart
Trailer Type | Best Material Fit | Safety Profile | Maintenance Focus |
|---|---|---|---|
Bottom (Belly) Dump | Sand, Gravel, Asphalt | Excellent (No rollover risk) | Pneumatic cylinders, gate seals |
End Dump | Demolition, Dirt, Bulky Debris | Lower (High rollover risk) | Hydraulic rams, pivot hinges |
Side Dump | Boulders, Trench Soil | Moderate (Lateral tip risk) | Hydraulic cylinders, tub pivots |
While efficient, deploying a fleet of belly dumps comes with specific ground-level challenges. You must train teams to navigate these hurdles safely.
The most common hazard involves high-centering the equipment. The belly gates sit just inches above the road surface. If a driver miscalculates their drafting speed or opens the gate aperture too wide, the material pours out too fast. The windrow piles up higher than the trailer's ground clearance. As the truck moves forward, the trailer drags on its own dumped material. It eventually lifts the drive axles off the ground, leaving the rig entirely stuck. Extracting a high-centered rig often requires heavy loaders and causes costly delays.
Gravity only works when materials flow freely. If you load wet dirt or frozen aggregates, the material frequently bridges inside the hopper. It forms a solid arch over the open gates, refusing to drop. Hot mix asphalt can also bridge if it cools too much during transit and sticks to the hopper walls. When bridging occurs, attempting to manually clear the jam poses severe safety risks. Workers should never climb under the hopper. A sudden release of heavy material can cause fatal crushing injuries.
Driving these rigs requires a unique skill set. You cannot simply put a novice driver behind the wheel and expect perfect windrows.
Speed Coordination: Drivers must learn to match their ground speed precisely to the material flow rate.
Aperture Management: They must adjust the gate opening dynamically to account for material density.
Mirror Discipline: Operators must constantly monitor both side mirrors to ensure the windrow clears the trailer axles.
Stopping Distance: They must manage heavier gross weights dynamically while preparing to brake smoothly to avoid shifting the load.
Mastering this coordination takes dedicated seat time. Fleets must invest in robust training programs to prevent buried axles and damaged gates.
Maintaining compliance ensures operational continuity. Because these semi trailers discharge while moving, safety protocols differ from stationary dumping.
OSHA enforces strict regulations regarding moving unloading zones. Because the truck remains in motion, the risk to ground workers increases. Site managers must establish clear, marked paths for windrowing. Ground workers must maintain a safe proximity distance, remaining entirely clear of the truck's forward path and blind spots. Spotters should use standardized hand signals or two-way radios to communicate with drivers during the drop. Never allow personnel to walk directly behind the trailer while the gates are actively discharging.
Reliable gate operation depends entirely on a healthy pneumatic system. Create an evidence-based maintenance checklist for your shop technicians.
Air Line Integrity: Inspect hoses weekly for chafing, dry rot, or pinhole leaks.
Pivot Lubrication: Grease all clamshell gate pivot points daily to prevent binding under heavy loads.
Structural Checks: Inspect the hopper welds and gate hinges for stress cracks caused by hauling heavy aggregates.
Moisture Control: Drain air reservoirs daily to prevent water from accumulating and freezing inside the pneumatic valves.
Drivers bear the responsibility of daily pre-trip inspections. For a belly dump, DOT compliance requires specific focus areas. Drivers must verify that the tractor's air compressor builds and maintains adequate pressure to operate both the air brakes and the auxiliary gate systems. They must physically inspect the gate locking mechanisms to ensure the clamshells cannot vibrate open during highway transit. A gate popping open at highway speeds drops tons of material onto the roadway, causing catastrophic accidents.
A bottom dump configuration stands out as the optimal procurement choice if your primary contracts involve large-scale road construction, long-haul aggregates, and free-flowing materials. They maximize highway payload limits and slash cycle times on the job site by allowing drivers to drop loads without stopping. Most importantly, they protect your drivers and your insurance rates by eliminating the rollover risks inherent to end dumps.
Before moving to procurement, audit your typical job site terrain and material profiles. Ensure your haul routes provide adequate ground clearance and that you rarely deal with sticky clay or massive boulders. We highly recommend consulting directly with trailer manufacturers about specific gate designs. Discuss whether a cross-gate or longitudinal setup better fits your primary spreading applications. Equipping your fleet with the right mechanical setup ensures safer drivers, faster deliveries, and a smoother operation across the board.
A: No, there is no difference. "Belly dump" and "bottom dump" are synonymous terms used interchangeably in the heavy hauling and construction industries to describe a trailer that discharges material from clamshell gates located underneath the chassis.
A: Yes. However, hauling hot mix asphalt requires specialized equipment. The trailer needs heat-resistant gate seals to prevent melting. The driver must also keep the material moving and discharge it promptly to prevent the asphalt from cooling, sticking to the hopper walls, and causing a massive jam.
A: You generally need a standard Class A Commercial Driver's License (CDL) to operate a tractor pulling a bottom dump trailer. If you plan to pull two trailers in tandem (often called "pups"), you will need to add a Doubles/Triples (T) endorsement to your CDL.
A: If a gate sticks open, material will spill uncontrollably. The driver must safely pull over immediately. This failure usually stems from a loss of air pressure or jammed aggregate. Dual air systems help prevent this by isolating the gate air supply, but drivers must never crawl under a loaded, stuck hopper to fix it.
